F4BE0641A*G103

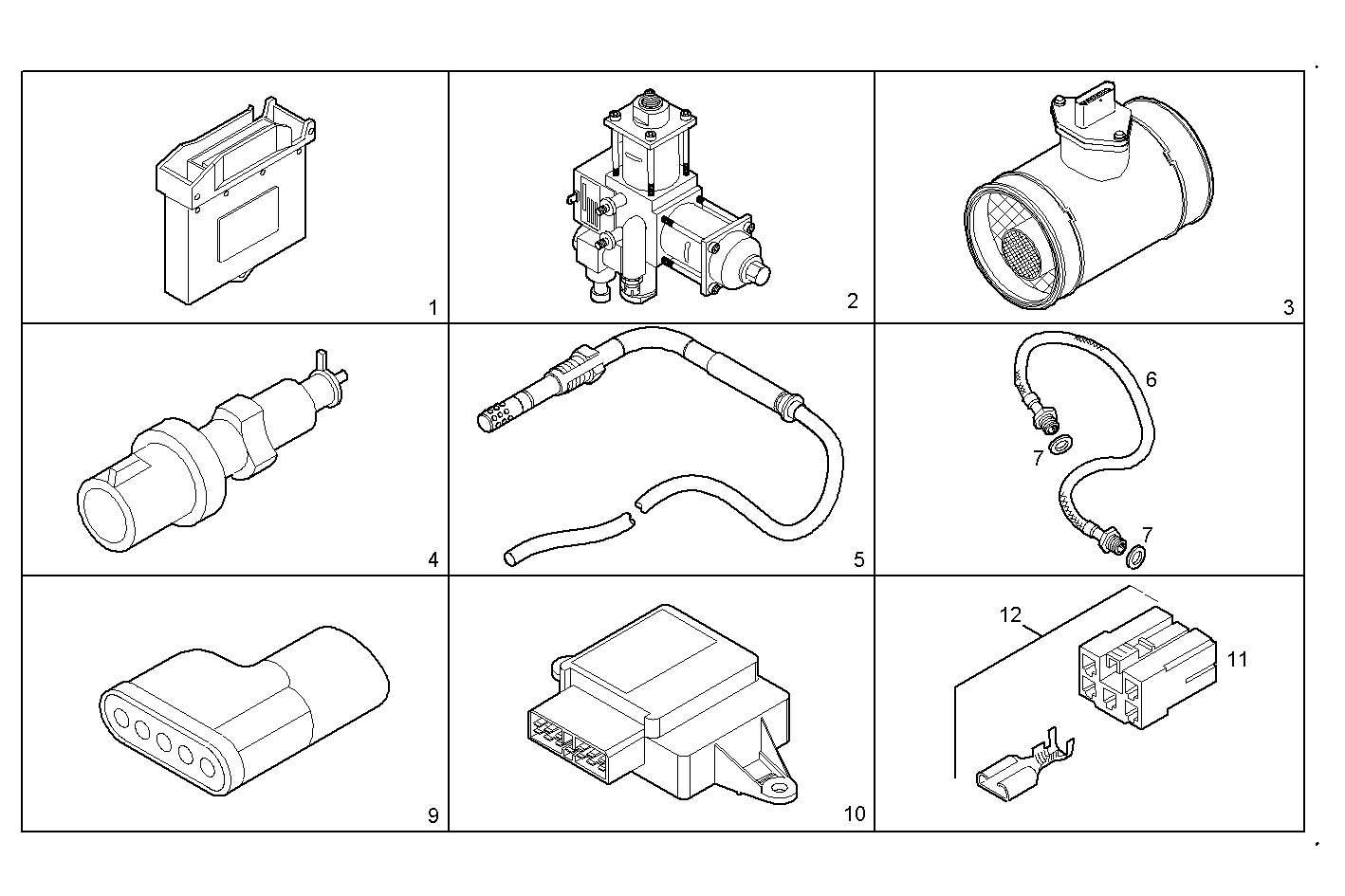

8600.196 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504085472 | ELECTR.CONTR.UNIT |
| 2 | 504087620 | PRESSURE REGULATOR ASSY |
| 3 | 504051082 | METER AIR FÚOW |
| 4 | 504064380 | TRANSMITTER |
| 5 | 504071576 | TEMP. TRANSMITTER |
| 6 | 8035936 | FUEL LINE |
| 7 | 10284450 | SEAL GASKET |
| 9 | 8030193 | WIRE CONNECTOR assy 5 pin female |
| 10 | 504083085 | VOLTAGE REDUCER 24V |
| 11 | 12268180 | WIRE CONNECTOR WHITE |
| 12 | 504091572 | WIRE CONNECTOR ASSY |
