F4BE0684D*D401

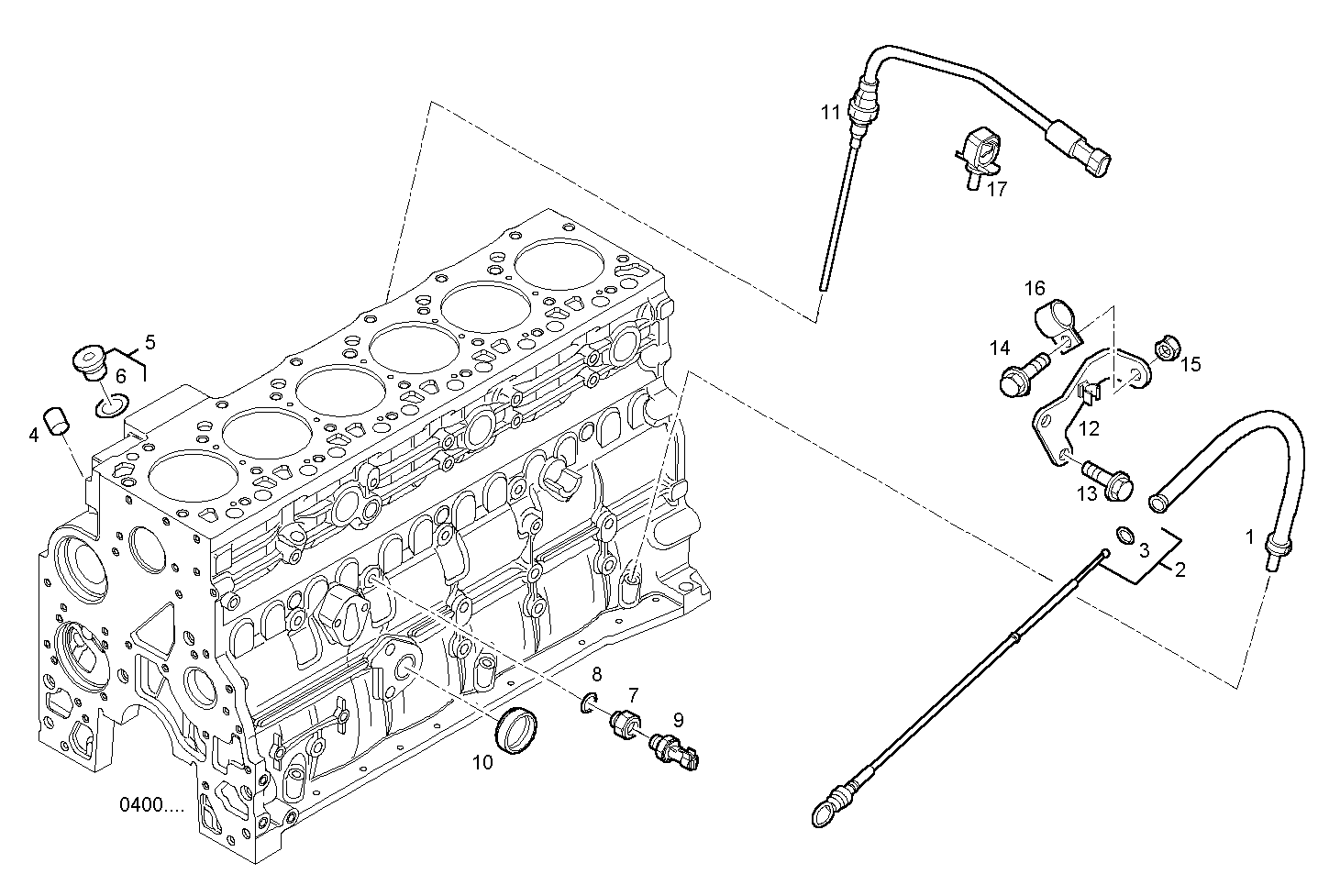

2710.121 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 504042296 | OIL LEVEL TUBE |
| 2 | 504042297 | OIL DIPSTICK ASSY |
| 3 | 4898502 | O-RING |
| 4 | 4899036 | PLUG |
| 5 | 4897330 | PLUG ASSY M12X1,5 |
| 6 | 4895610 | O-RING |
| 7 | 504036358 | THREADED UNION |
| 8 | 4899115 | O-RING |
| 9 | 98442879 | PRESSURE SWITCH SIPEA |
| 10 | 4895037 | PLUG |
| 11 | 504025613 | SENSOR |
| 12 | 504052680 | RETAINER |
| 13 | 4899068 | HEXAGON BOLT M8X17 MM |
| 14 | 4895164 | HEXAGON BOLT |
| 15 | 4899057 | HEXAGON NUT M8X1,25X25 |
| 16 | 17315090 | FASTENING BRACKET Ø14 MM |
| 17 | 504046336 | FASTENING BRACKET |
