F4CE0304A*D600

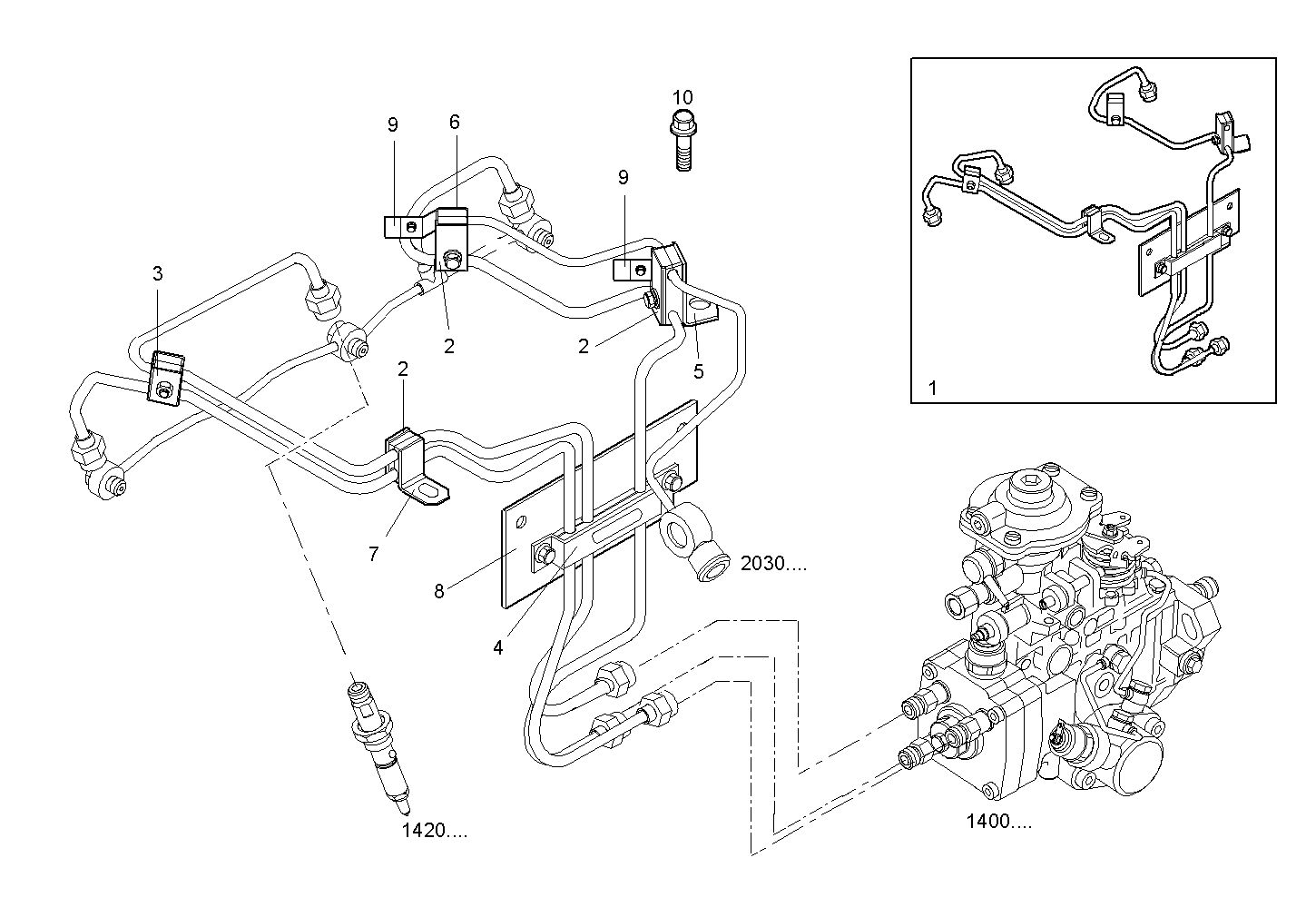

2020.141 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 504039559 | INJECTION LINE SET |
| 2 | 504088873 | FASTENING BRACKET |
| 3 | 504088874 | FASTENING BRACKET |
| 4 | 504088875 | FASTENING BRACKET |
| 5 | 504088876 | FASTENING BRACKET |
| 6 | 504088877 | FASTENING BRACKET |
| 7 | 504088878 | FASTENING BRACKET |
| 8 | 504088879 | FASTENING BRACKET |
| 9 | 504088881 | FASTENING BRACKET |
| 10 | 4899068 | HEXAGON BOLT M8X17 MM |
