F4CE0304A*D600

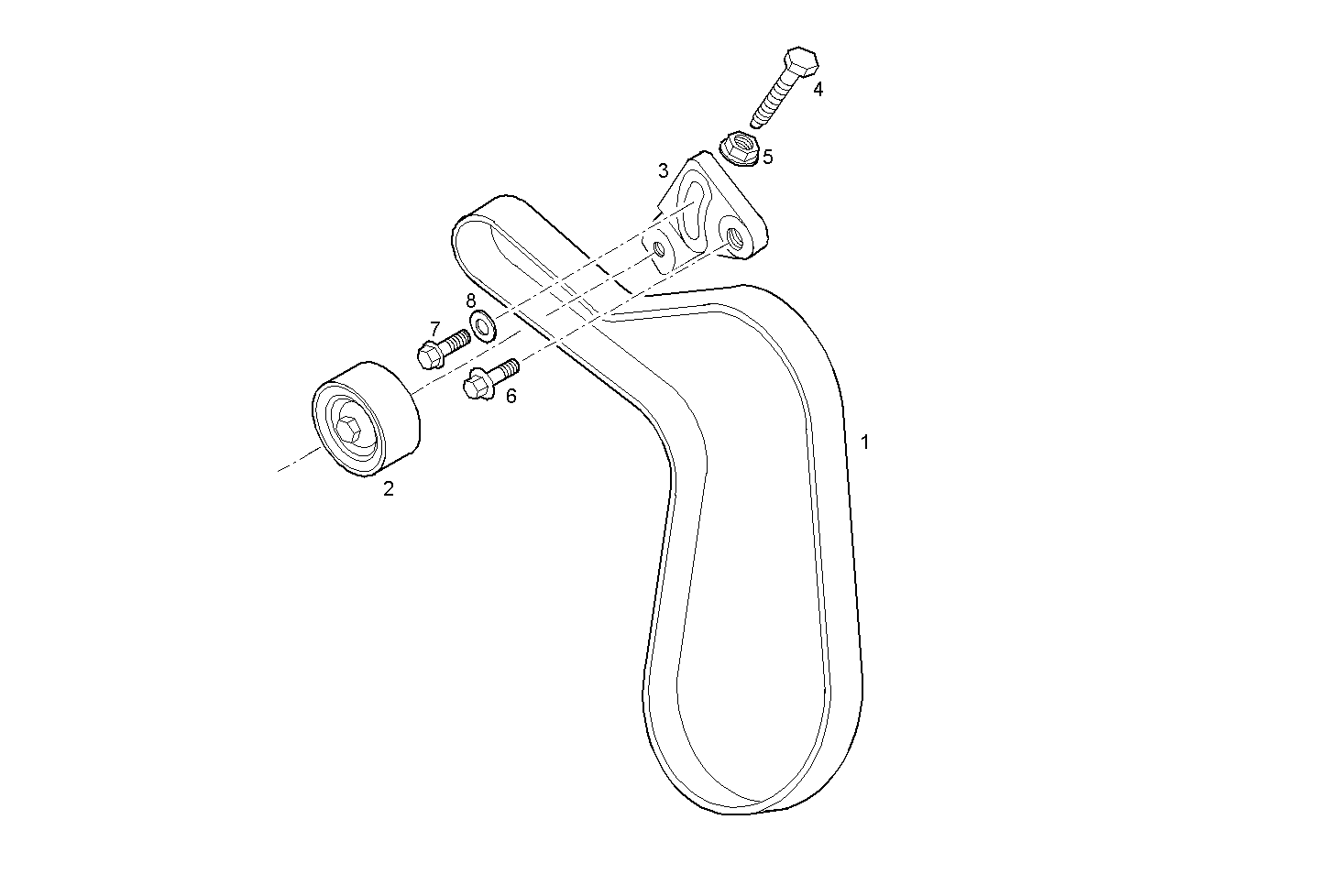

3400.016 WATER PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 504013617 | WATER PUMP BELT |
| 2 | 504066034 | PULLEY |
| 3 | 504013599 | BELT TENSIONER |
| 4 | 504020255 | HEXAGON BOLT |
| 5 | 17044821 | NUT M10 |
| 6 | 16673835 | HEXAGON BOLT M8X30 MM |
| 7 | 16675835 | HEXAGON BOLT M10X30 MM |
| 8 | 17097124 | WASHER 10x21 |
