F4CE0354C*D601

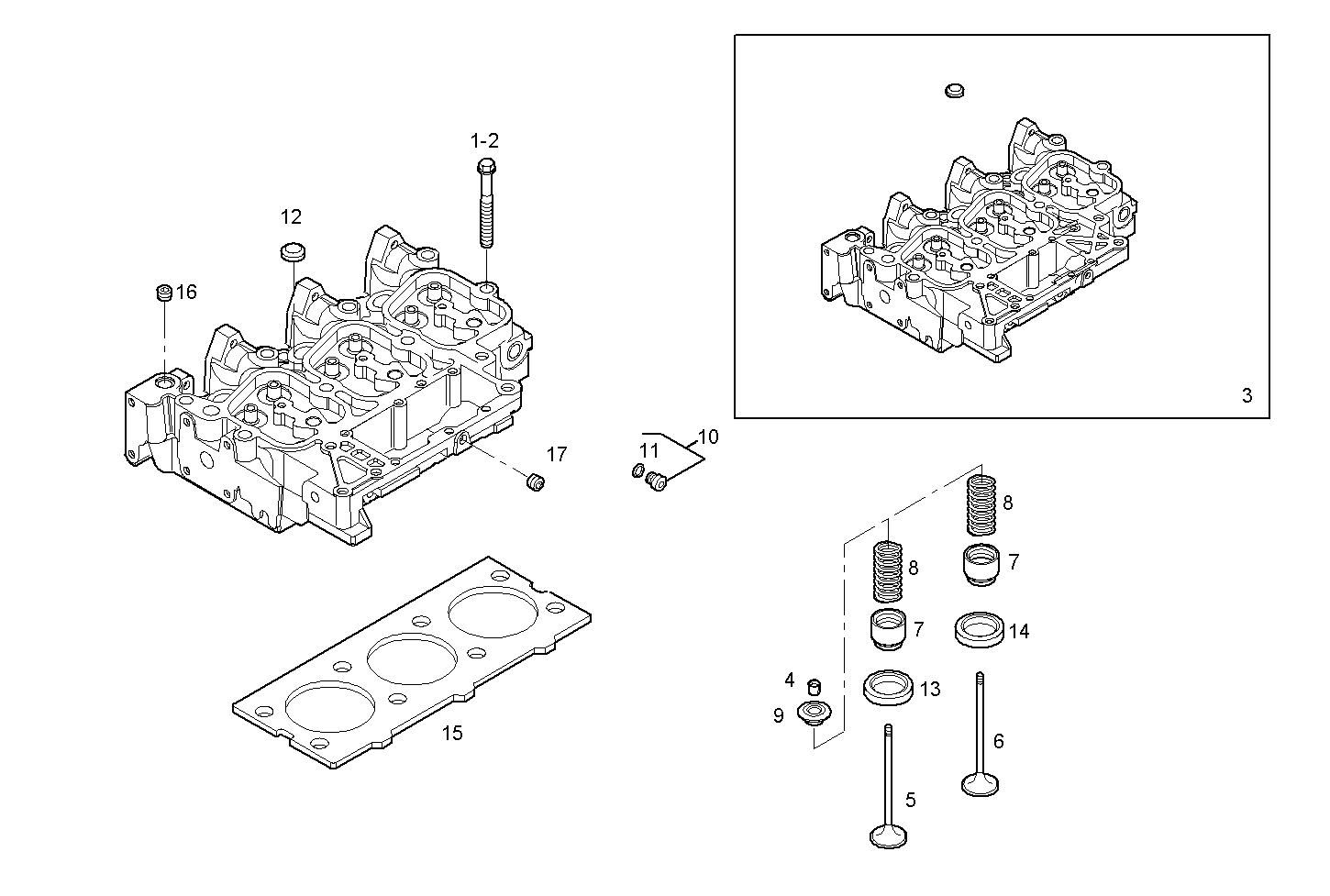

0600.192 CYLINDER HEAD
| Item |
Part number |
Description |
|
1 |
4892861 |
HEXAGON BOLT M15X1,75 |
|
2 |
4892859 |
HEXAGON BOLT M15X1,75 |
|
3 |
4895808 |
CYLINDER HEAD |
|
4 |
4895183 |
VALVE CONE |
|
5 |
4895188 |
EXHAUST VALVE |
|
6 |
4895187 |
INLET VALVE |
|
7 |
4895347 |
CAP |
|
8 |
4895215 |
ENGINE VALV.SPRING |
|
9 |
4895184 |
SPRING CAP |
|
10 |
4899009 |
THREADED PLUG ASSY M10X1 |
|
11 |
4899072 |
O-RING |
|
12 |
4895179 |
LOCK PLUG |
|
13 |
4897178 |
VALVE SEAT STD. INTAKE |
|
14 |
4897179 |
VALVE SEAT STD. EXHAUST |
|
15 |
2830950 |
CYL.HEAD GASKET |
|
16 |
4895078 |
THREADED PLUG |
|
17 |
4895246 |
THREADED PLUG |
