F4CE9484F*J600

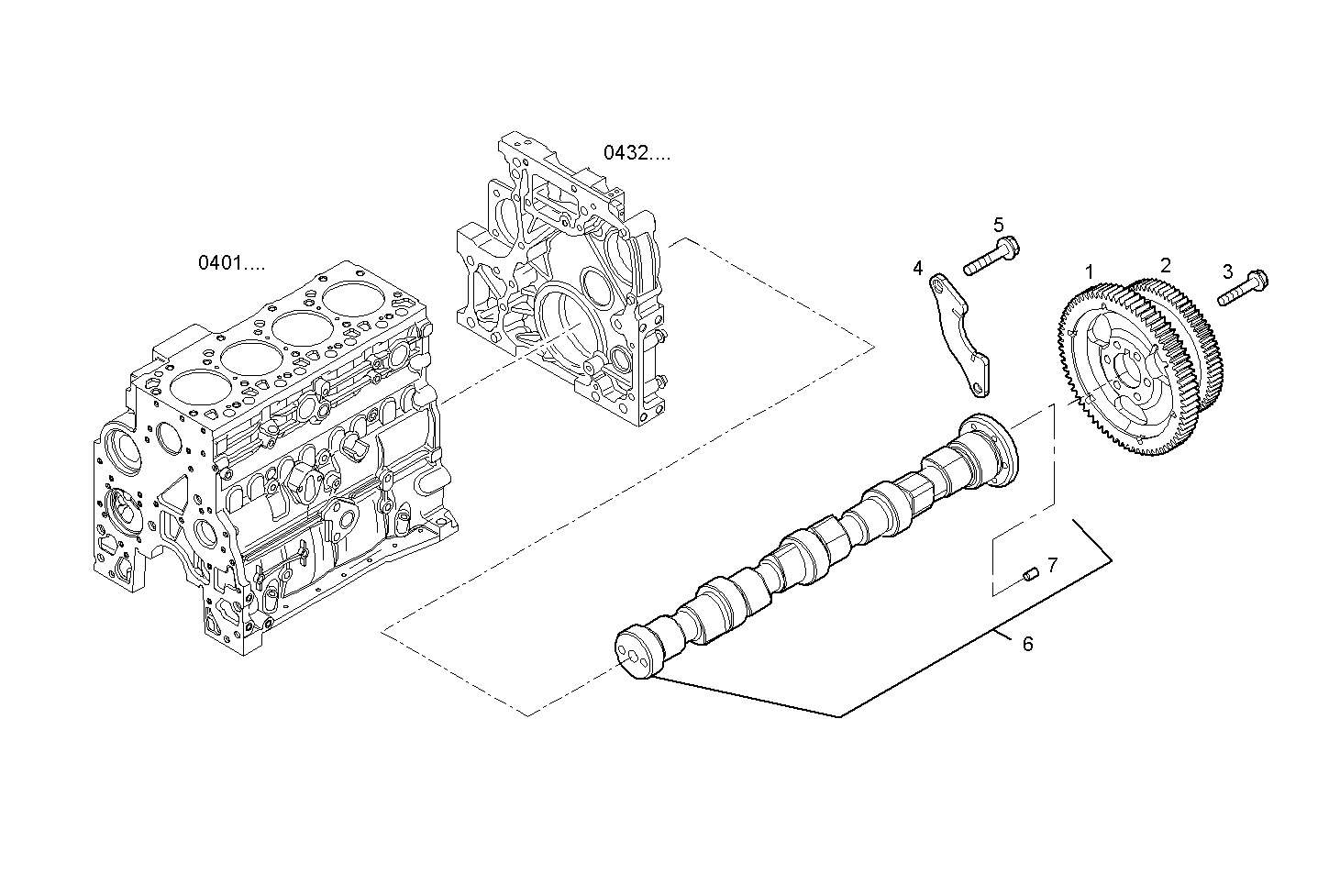

1250.110 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4894775 | CAMSHAFT PINION |
| 2 | 4894776 | GEAR |
| 3 | 4897153 | HEXAGON BOLT |
| 4 | 4897457 | YOKE |
| 5 | 4899068 | HEXAGON BOLT M8X17 MM |
| 6 | 504229312 | CAMSHAFT ASSY |
| 7 | 4899080 | DOWEL PIN |
