F4CE9484M*J605

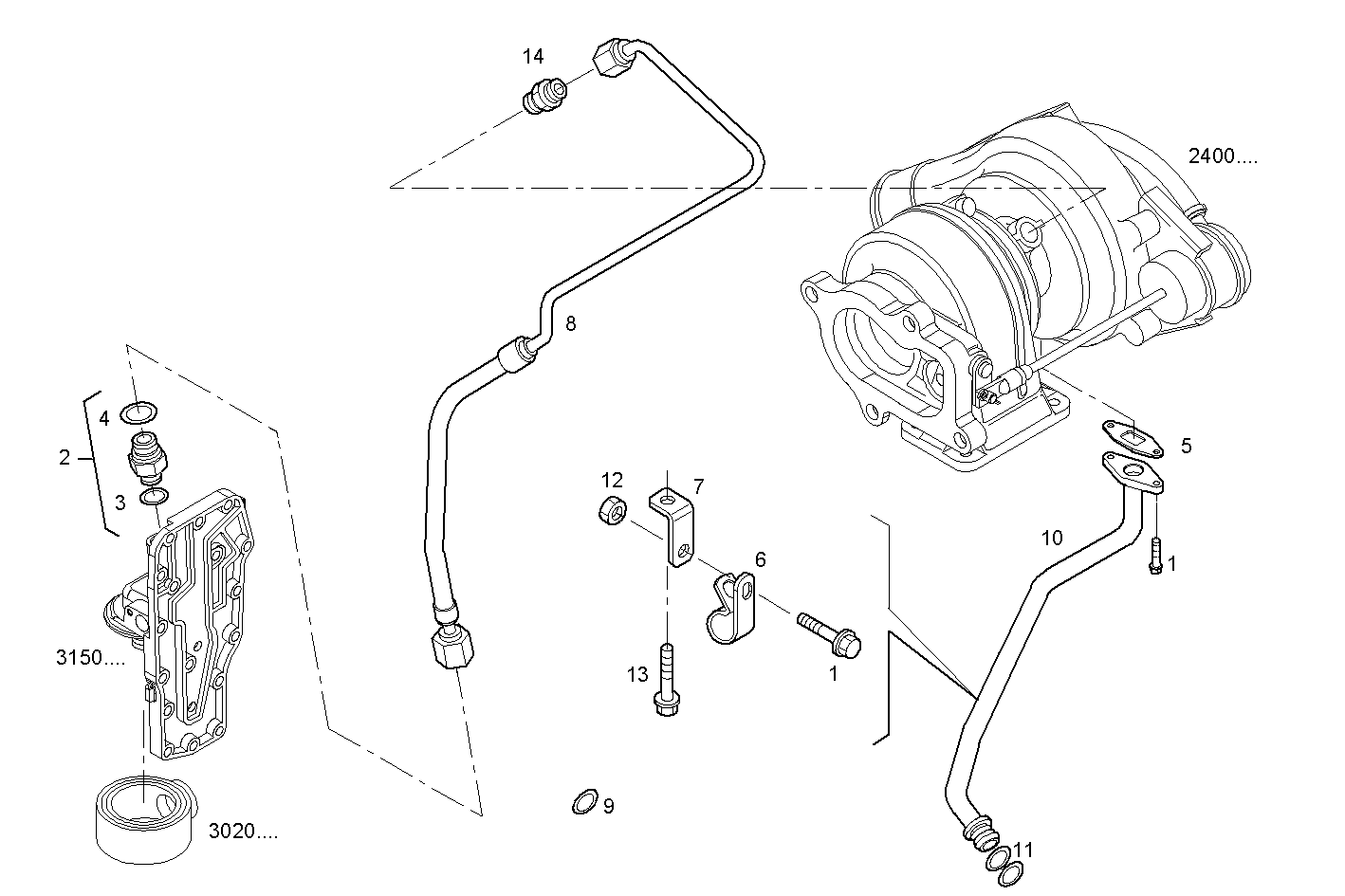

3063.017 TURBOCHARGER OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4895164 | HEXAGON BOLT |
| 2 | 4895107 | THREADED UNION ASSY |
| 3 | 4899107 | O-RING |
| 4 | 4899108 | O-RING |
| 5 | 4899467 | FLAT ENGINE GASKET |
| 6 | 4899519 | BRACKET |
| 7 | 2830887 | RETAINER |
| 8 | 504087327 | OIL LINE |
| 9 | 4895089 | PLUG |
| 10 | 2830895 | OIL LINE |
| 11 | 17281881 | O-RING DIA 17,12 SP 2,62 |
| 12 | 4899057 | HEXAGON NUT M8X1,25X25 |
| 13 | 4893517 | SCREW |
| 14 | 4899106 | PIPE SOCKET |
