F4CE9684J*J604

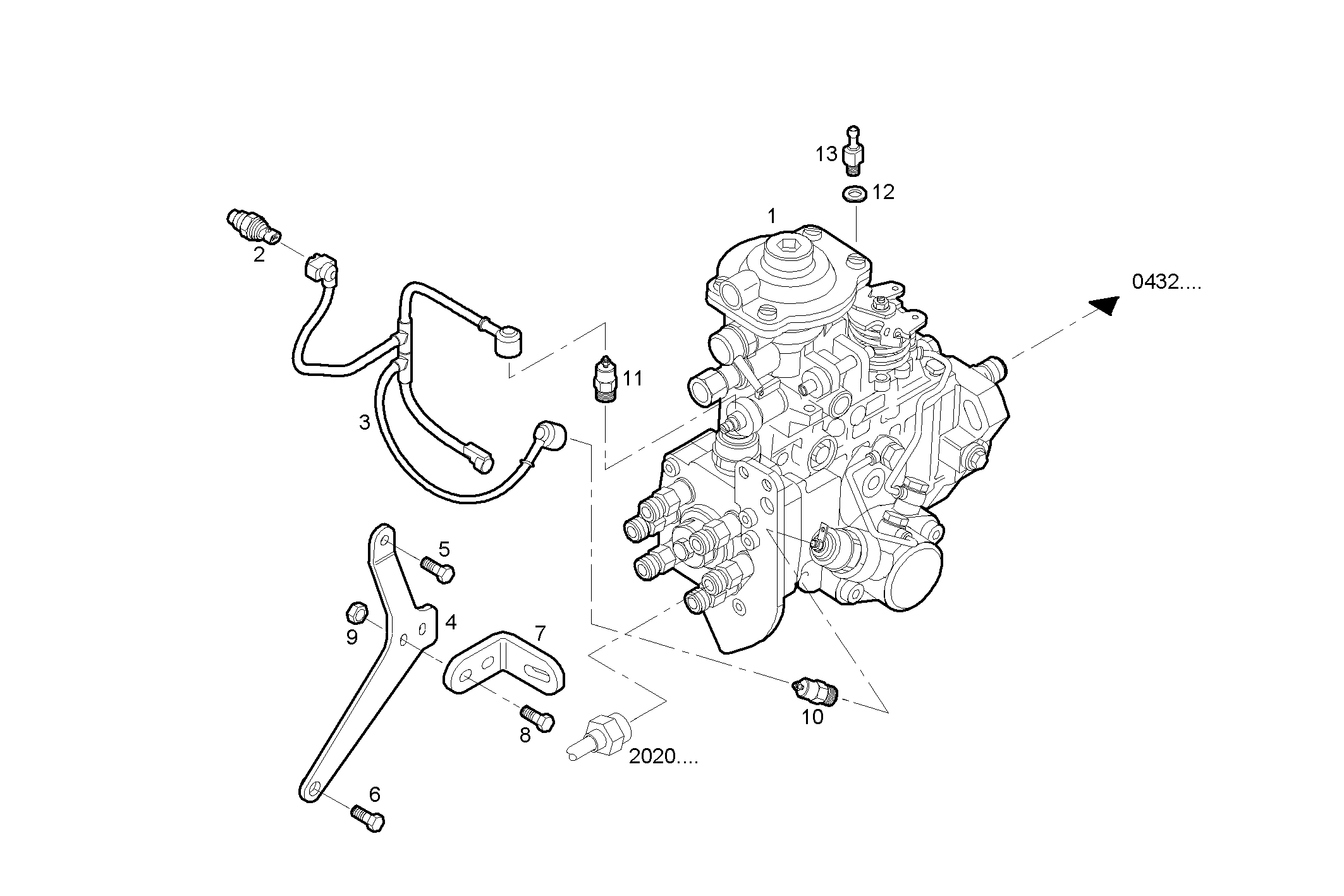

1400.015 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504129606 | DISTRIB.INJ.PUMP ASSY |
| 2 | 504032877 | SENSOR water temperature for KSB |
| 3 | 504060728 | WIRE/CABLE for electrovalve & ksb |
| 4 | 504242322 | BRACKET |
| 5 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 6 | 4895327 | HEXAGON BOLT |
| 7 | 2830713 | BRACKET |
| 8 | 4899079 | HEXAGON BOLT |
| 9 | 17044735 | NUT M8 |
| 10 | 93192974 | MAGNETO KSB |
| 11 | 42533181 | ELECTROVALVE 12V |
| 12 | 17088471 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 13 | 504053728 | BALL JOINT |
