F4CE9684L*J601

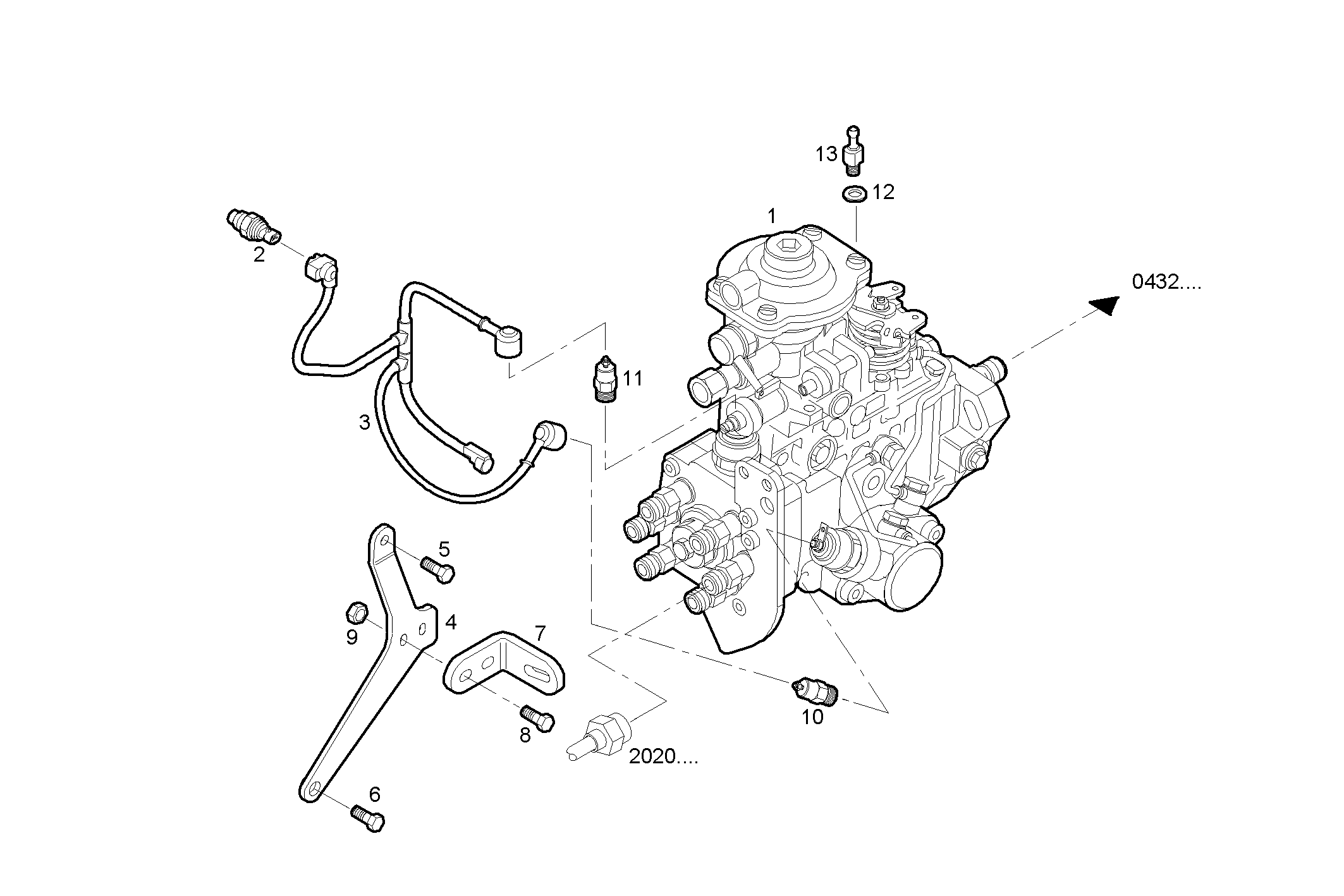

1400.013 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 504129609 DISTRIB.INJ.PUMP
2 504032877 SENSOR water temperature for KSB
3 504060728 WIRE/CABLE for electrovalve & ksb
4 504242322 BRACKET
5 16673635 HEXAGON BOLT M8X1.25X20
6 4895327 HEXAGON BOLT
7 2830713 BRACKET
8 4899079 HEXAGON BOLT
9 17044735 NUT M8
10 93192974 MAGNETO KSB
11 42533181 ELECTROVALVE 12V
12 17088471 SPRING WASHER Ø6X12 MM SP=1,2 MM
13 504053728 BALL JOINT
