F4CE9684L*J602

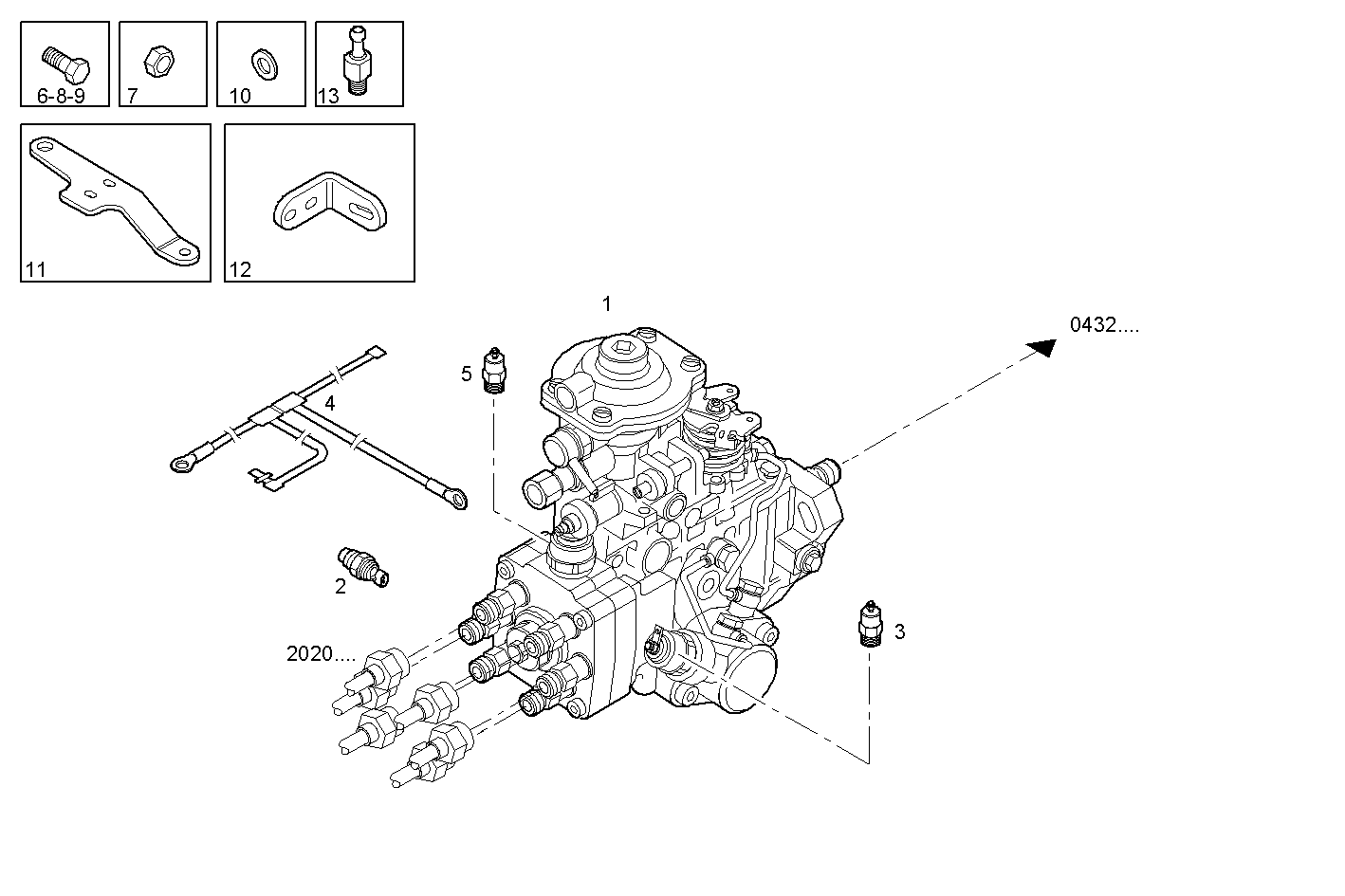

1400.005 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504129609 | DISTRIB.INJ.PUMP |
| 2 | 504264463 | SENSOR water temperature for KSB |
| 3 | 8107346 | ELECTROVALVE 12V |
| 4 | 504060728 | WIRE/CABLE for electrovalve & ksb |
| 5 | 42533181 | ELECTROVALVE 12V |
| 6 | 4895327 | HEXAGON BOLT |
| 7 | 17044735 | NUT M8 |
| 8 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 9 | 4899079 | HEXAGON BOLT |
| 10 | 17088471 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 11 | 2830688 | BRACKET |
| 12 | 2830713 | BRACKET |
| 13 | 504053728 | BALL JOINT |
