F4CE9684L*J602

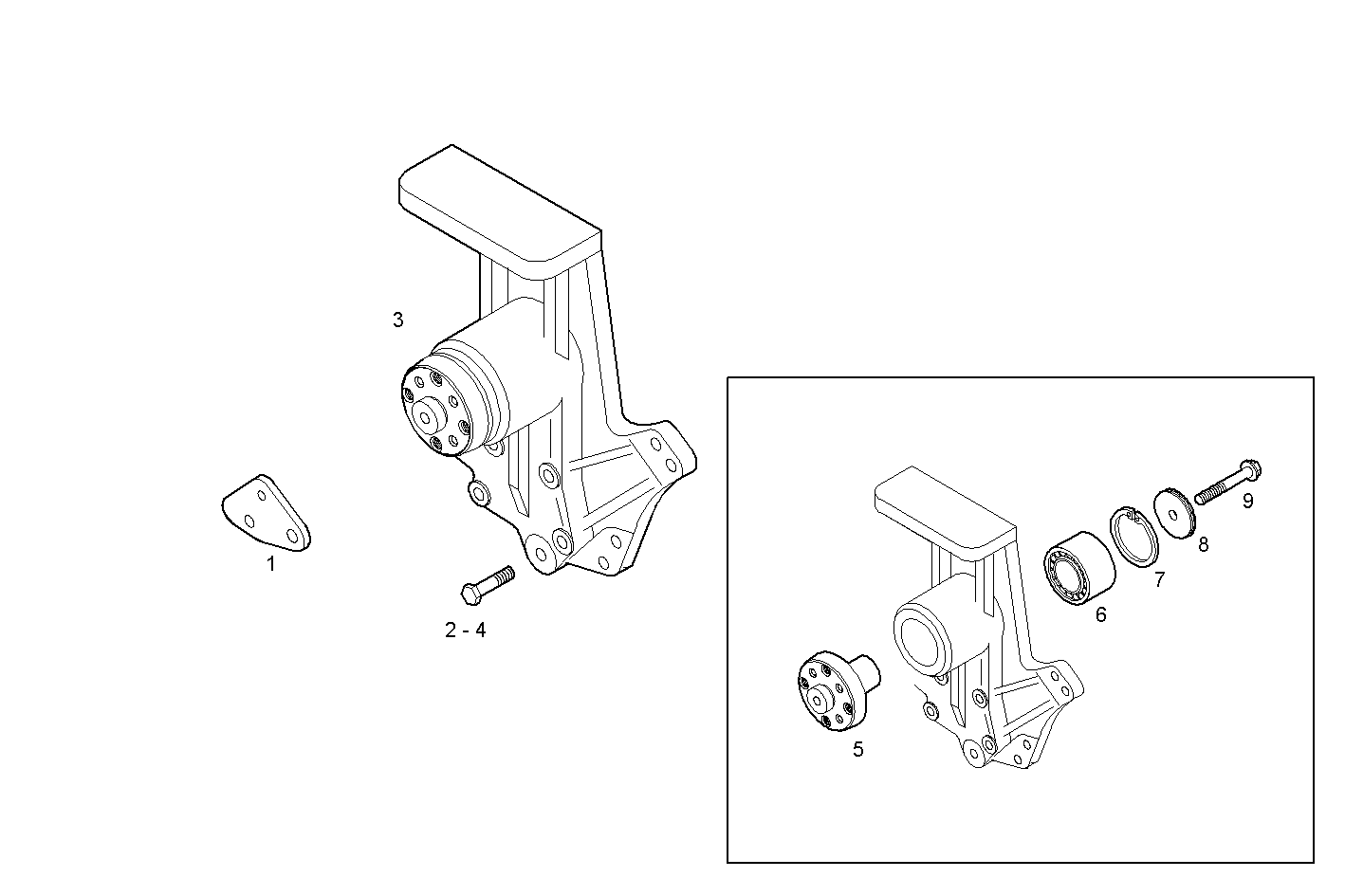

3490.005 FAN SUPPORT
| Item | Part number | Description |
|---|---|---|
| 1 | 504114161 | FASTENING BRACKET |
| 2 | 16587525 | HEXAGON BOLT M10X45 MM |
| 3 | 504113813 | SUPPORT ASSY |
| 4 | 4899053 | HEXAGON BOLT |
| 5 | 4892426 | HUB |
| 6 | 4892732 | BALL BEARING |
| 7 | 500395697 | SPRING LOCKWASHER |
| 8 | 4890732 | WASHER |
| 9 | 4893228 | HEXAGON BOLT |
