F4DE9684W*J100

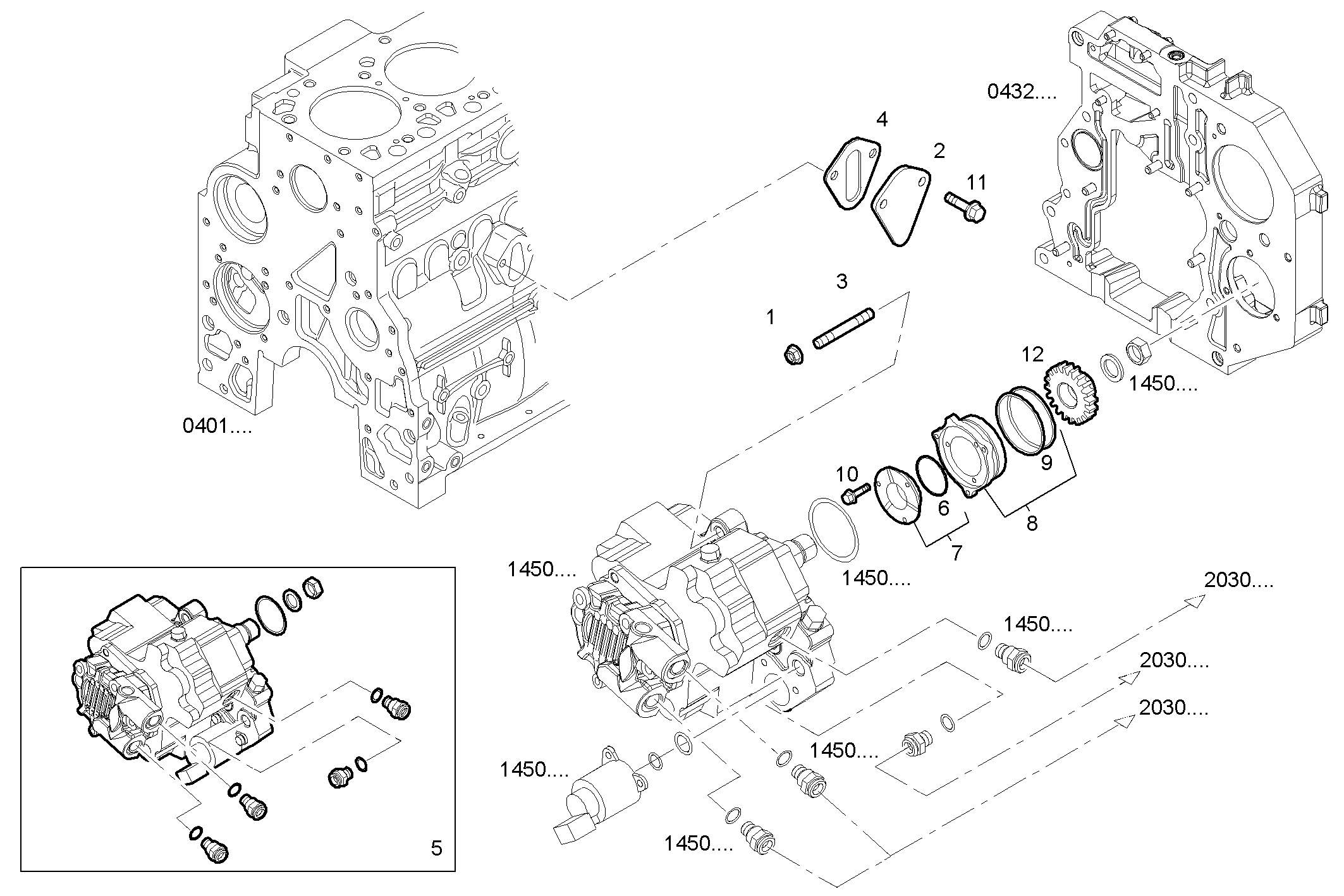

1400.410 INJECTION
| Item | Part number | Description |
|---|---|---|
| 1 | 17044735 | NUT M8 |
| 2 | 4896952 | COVER |
| 3 | 4892831 | STUD |
| 4 | 4890700 | FLAT ENGINE GASKET |
| 5 | 4898921 | HIGH PRESSURE PUMP ASSY |
| 6 | 17290581 | O-RING Ø72,63X3,53 MM |
| 7 | 2830564 | SPACING BAR ASSY |
| 8 | 2830598 | SPACING BAR ASSY |
| 9 | 17292081 | O-RING Ø120,24 MM SP=3,53 |
| 10 | 4899063 | HEXAGON BOLT M8X30 MM |
| 11 | 4899146 | HEXAGON BOLT |
| 12 | 4896138 | INJ.PUMP DRIV.GEA |
