F4GE0404A*D607

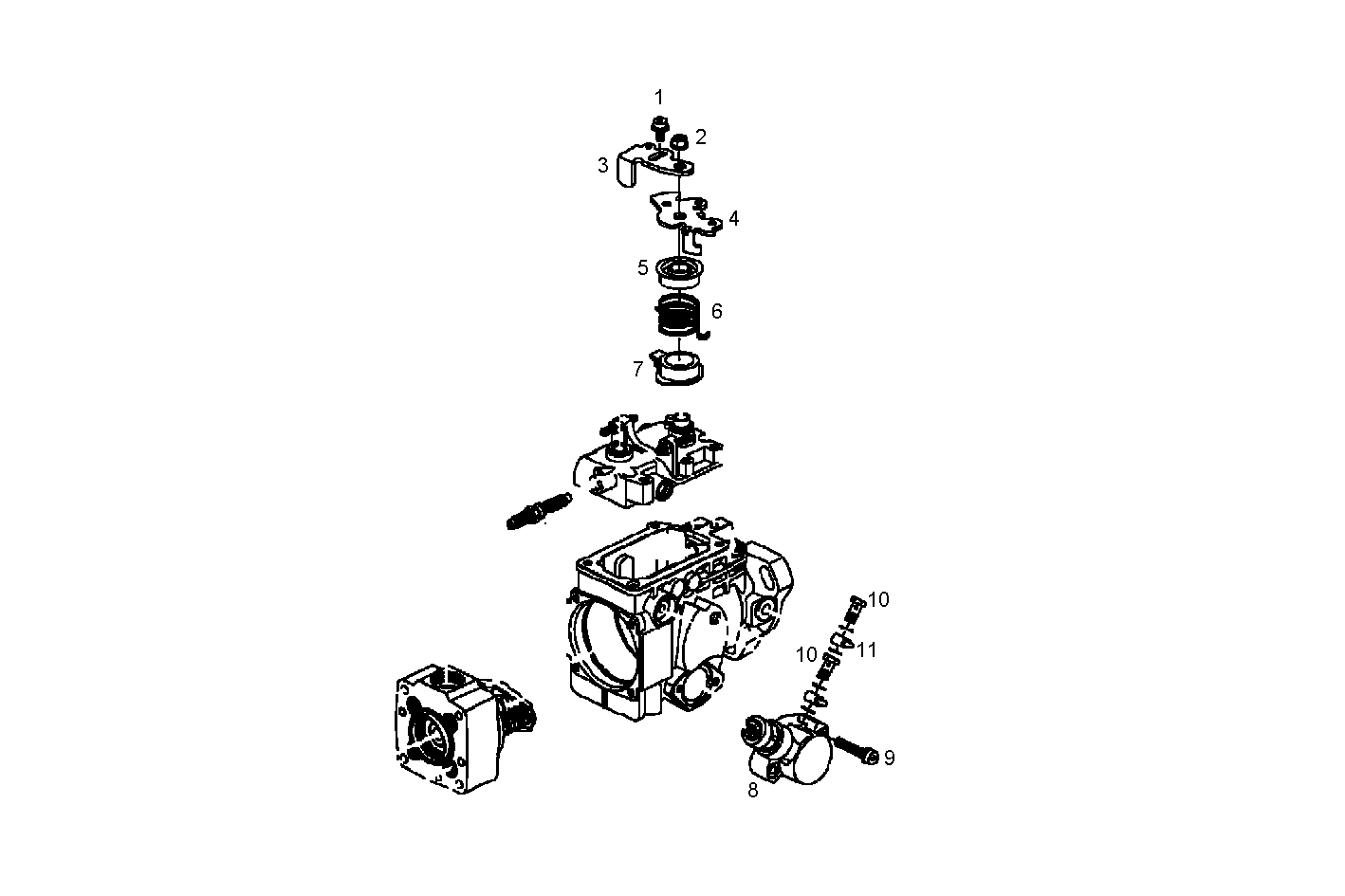

1450.007 INJECTION PUMP (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 42533142 | SCREW |
| 2 | 42533122 | NUT |
| 3 | 8193622 | LEVER |
| 4 | 8094856 | LEVER |
| 5 | 7984617 | CAP |
| 6 | 93191579 | SPRING |
| 7 | 42535795 | CAP |
| 8 | 8094855 | SOLENOID KSB |
| 9 | 8094857 | SCREW |
| 10 | 722021 | SCREW CONNECTOR |
| 11 | 93192990 | SEAL GASKET |
