F4GE0404A*D653

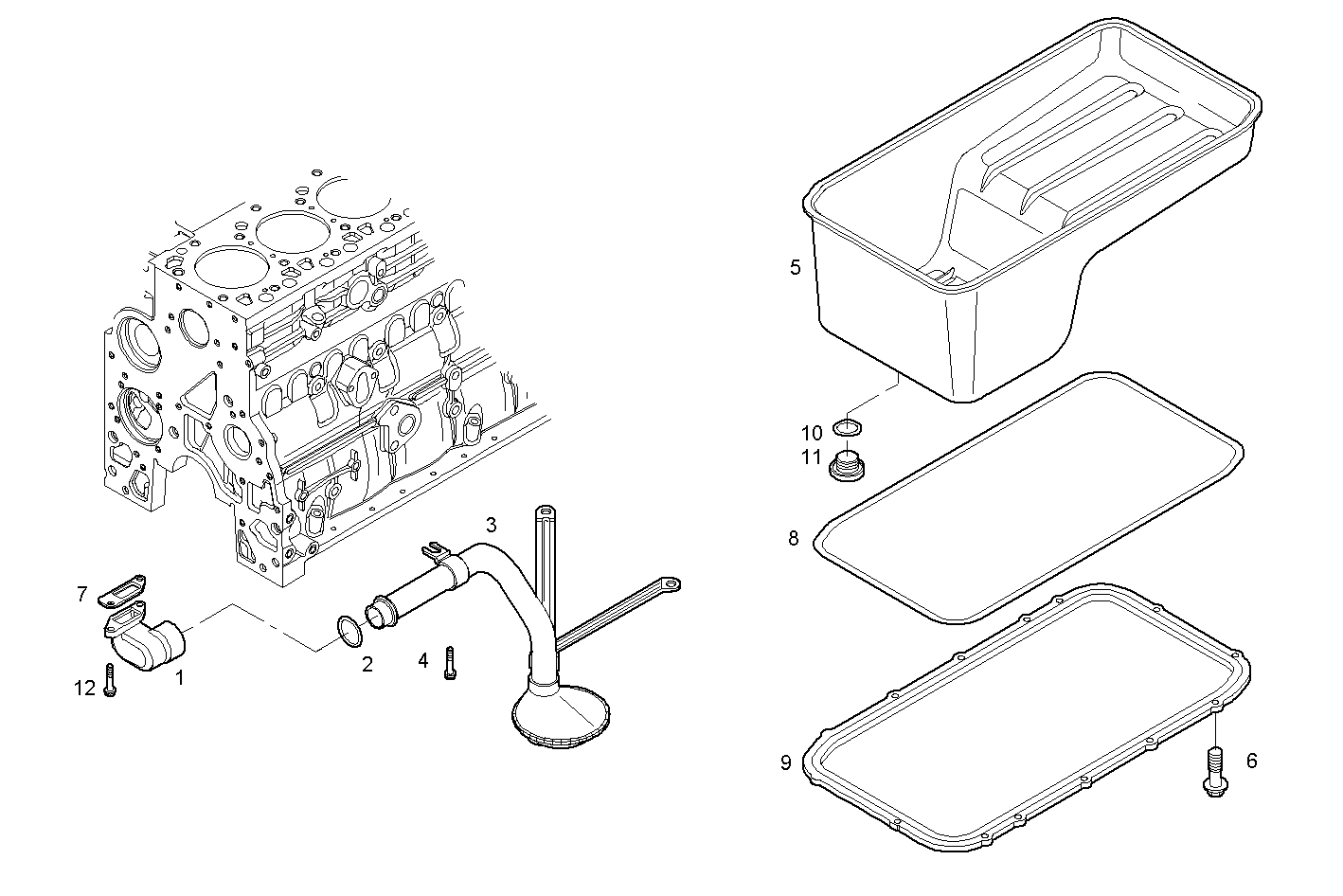

0420.204 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 504064052 INTAKE ELBOW
2 17282481 O-RING Ø26,64 MM SP=2,62 MM
3 504084185 SUCTION STRAINER
4 4895291 HEXAGON BOLT M10X1,5X20 MM
5 500388253 OIL SUMP
6 4899091 HEXAGON BOLT
7 4898301 FLAT ENGINE GASKET
8 4897877 OIL SUMP GASKET
9 4897876 SPACING BAR
10 17282280 O-RING Ø2,62X23,47 MM
11 4894139 THREADED PLUG M22X1,5
12 16673635 HEXAGON BOLT M8X1.25X20
