F4GE0404B*D652

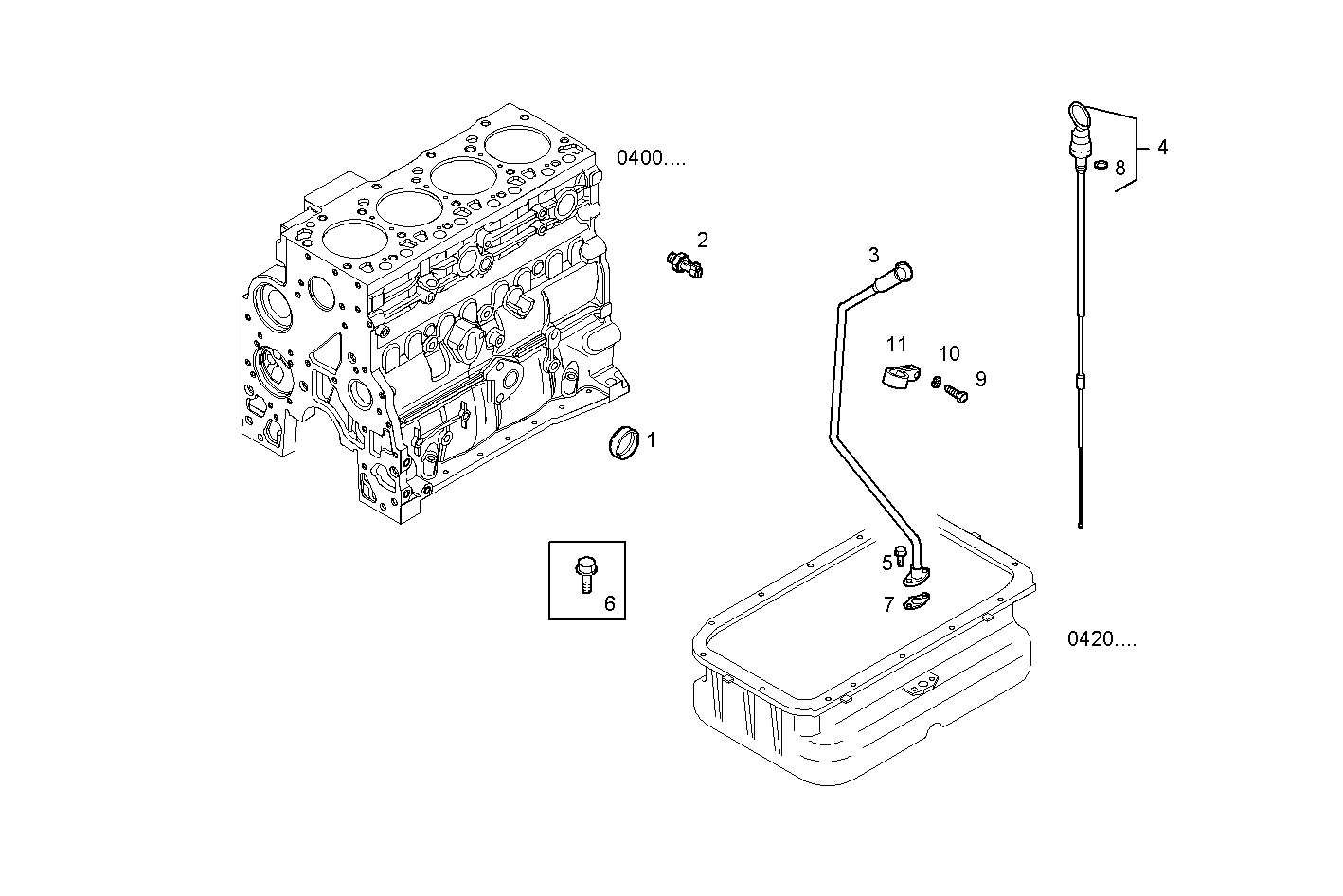

2710.201 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 4895037 | PLUG |
| 2 | 504085003 | PRESSURE SWITCH |
| 3 | 8040096 | OIL LEVEL TUBE |
| 4 | 8040183 | OIL DIPSTICK ASSY |
| 5 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 6 | 16588025 | HEXAGON BOLT M12X30 MM |
| 7 | 98401052 | FLAT ENGINE GASKET |
| 8 | 17277981 | O-RING 1,78x9,25 |
| 9 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 10 | 17089574 | WASHER Ø8X16 MM |
| 11 | 17316690 | FASTENING BRACKET Ø20,5 MM |
