F4GE0454A*D606

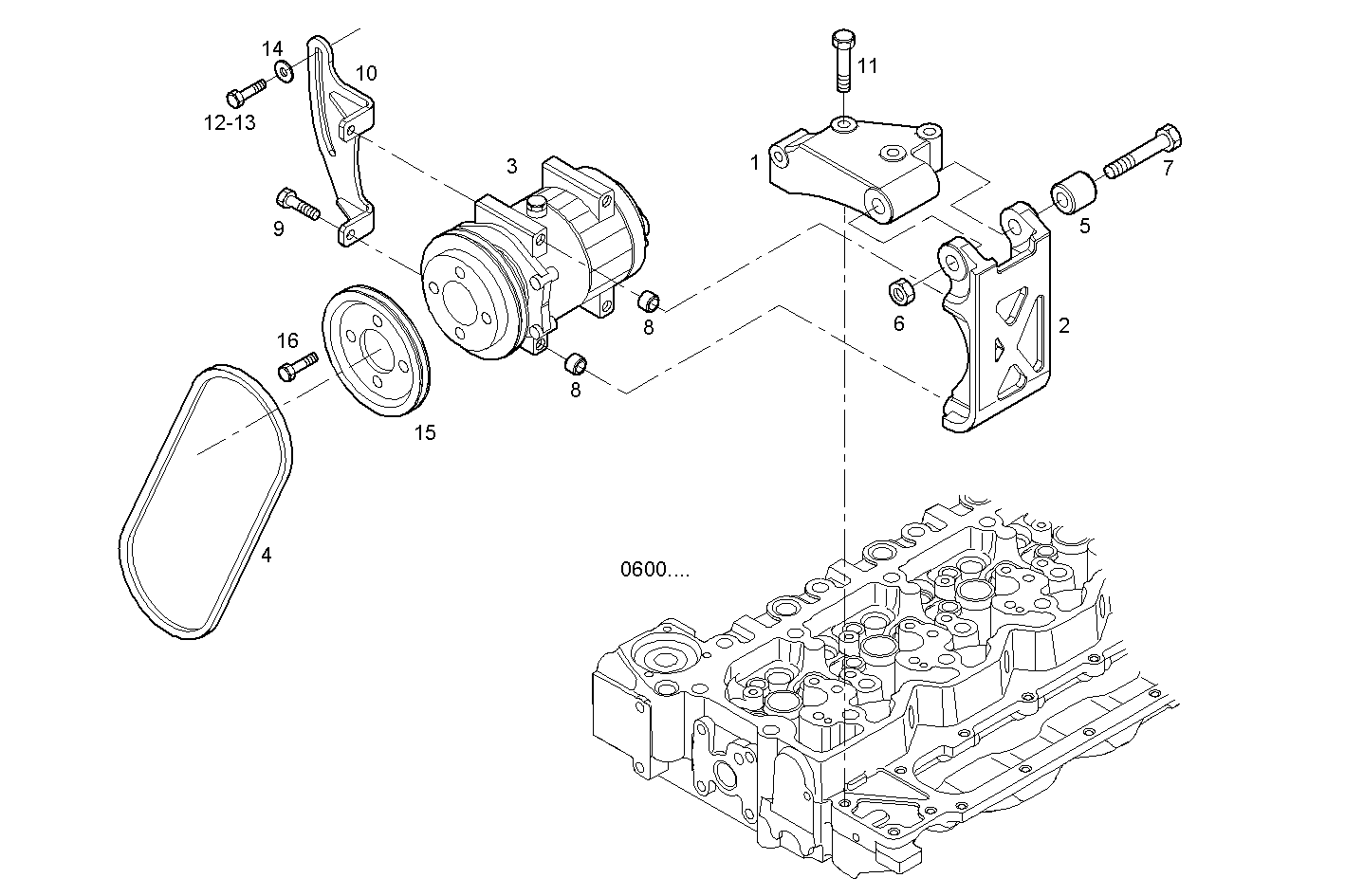

3900.015 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 500388141 | SUPPORT |
| 2 | 500387643 | SUPPORT |
| 3 | 504020809 | AIR COND.COMPRESS. |
| 4 | 500385852 | ALTERNATOR BELT |
| 5 | 98433179 | SPACING BAR |
| 6 | 17044921 | HEXAGON NUT M12 |
| 7 | 16599724 | HEXAGON BOLT M12X130 MM |
| 8 | 4895227 | DOWEL PIN |
| 9 | 504056183 | HEXAGON BOLT M8x1.25x105 MM |
| 10 | 504060302 | BELT TENSIONER |
| 11 | 16587724 | HEXAGON BOLT M10X55 MM |
| 12 | 16675835 | HEXAGON BOLT M10X30 MM |
| 13 | 16586325 | HEXAGON BOLT M8X20 MM |
| 14 | 12647124 | WASHER Ø8X20 MM |
| 15 | 504062671 | COMPRESSOR PULLEY |
