F4GE0487B*B600

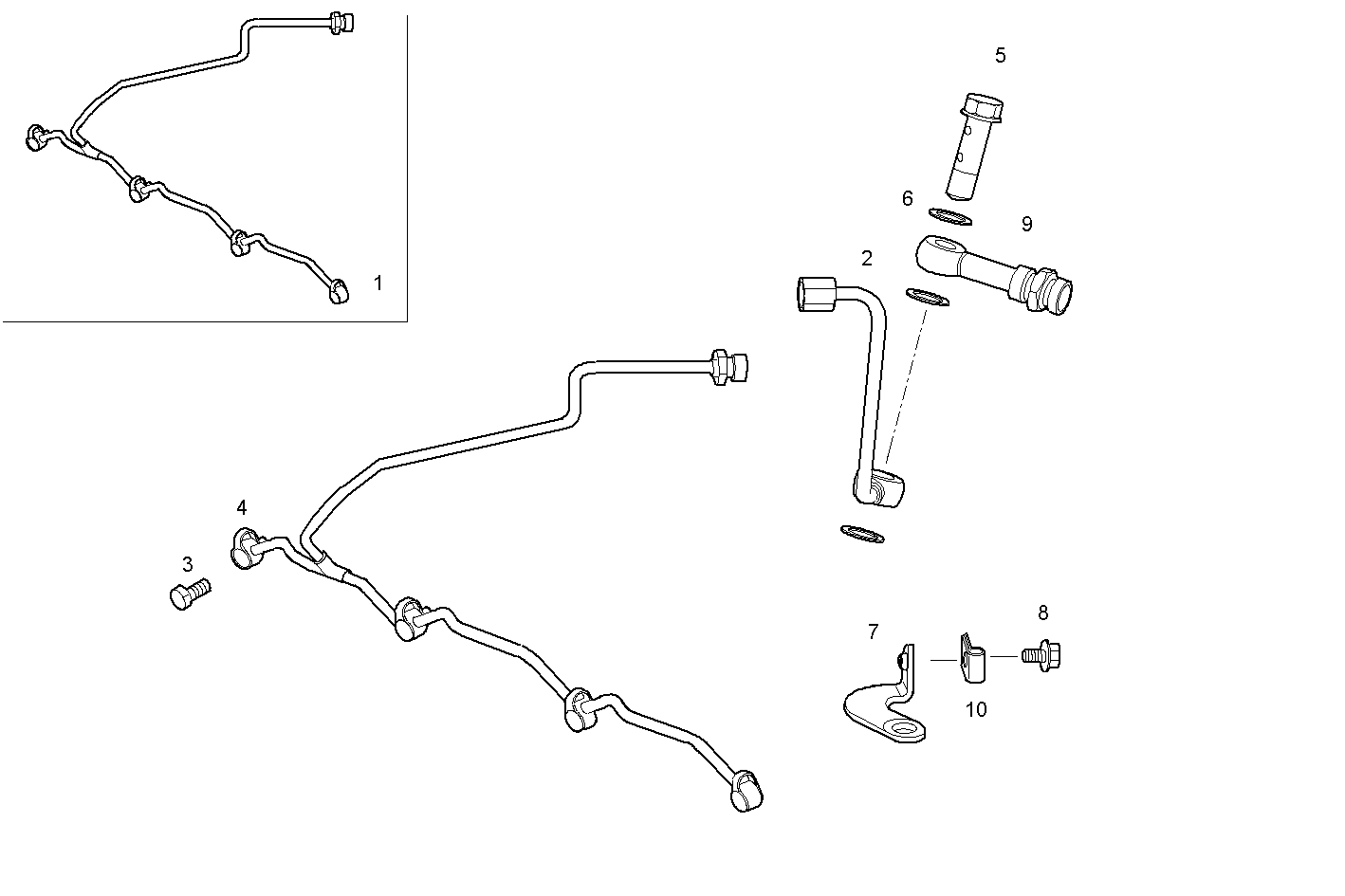

2030.310 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504118529 | FUEL LINE |
| 2 | 504148572 | FUEL LINE |
| 3 | 4895244 | SCREW CONNECTOR M 6X1 |
| 4 | 4895305 | SEAL GASKET |
| 5 | 8016191 | BANJO BOLT M12X1,5 |
| 6 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 7 | 504148574 | RETAINER |
| 8 | 16596924 | HEXAGON BOLT M6X10 MM |
| 9 | 8029417 | BANJO COUPLING |
| 10 | 17314590 | RETAINER Ø6 MM |
