F4GE0684R*D650

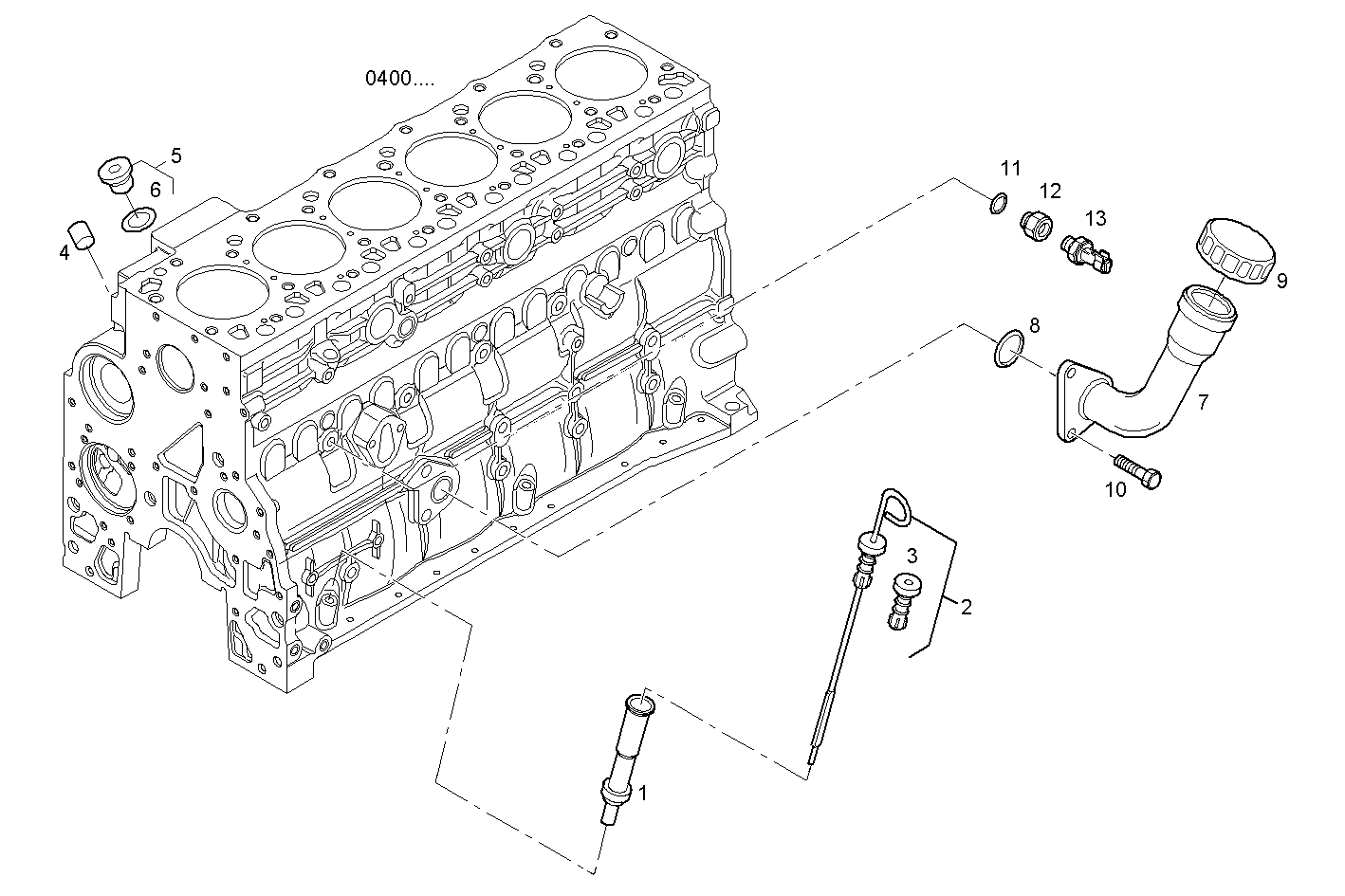

2710.133 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 504011329 | OIL LEVEL TUBE |
| 2 | 504069039 | OIL DIPSTICK ASSY |
| 3 | 7300023 | RUBBER GASKET |
| 4 | 4899036 | PLUG |
| 5 | 4897330 | PLUG ASSY M12X1,5 |
| 6 | 4895610 | O-RING |
| 7 | 504011338 | OIL FILLER PIPE |
| 8 | 17283181 | O-RING Ø37,77 MM SP=2,62 MM |
| 9 | 98429552 | OIL FILLER PLUG |
| 10 | 16677735 | HEXAGON BOLT M12X25 MM |
| 11 | 4899072 | O-RING |
| 12 | 504036357 | THREADED UNION |
| 13 | 98442879 | PRESSURE SWITCH SIPEA |
