F4GE9454C*J604

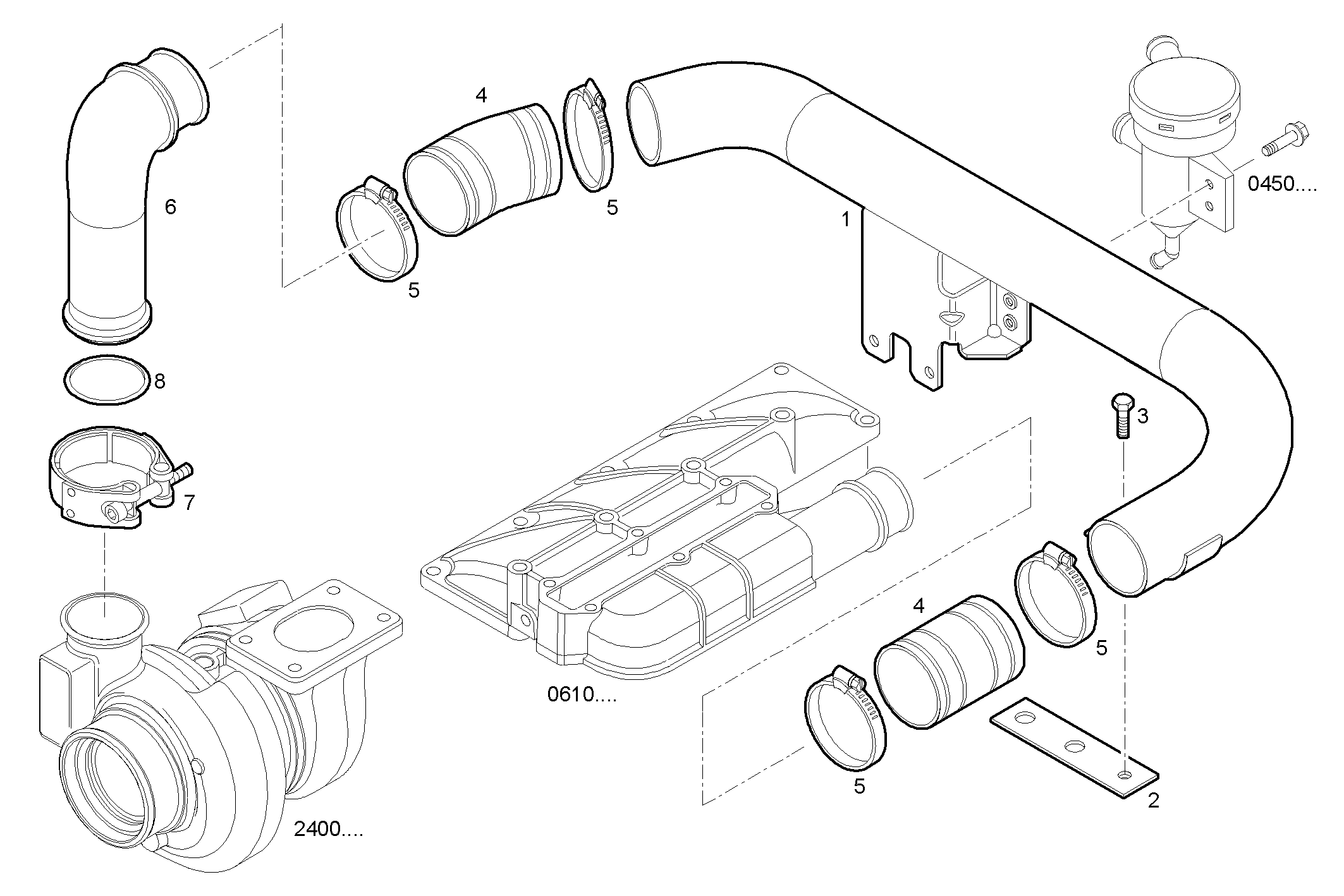

0715.032 ENGINE AIR INTAKE
| Item | Part number | Description |
|---|---|---|
| 1 | 504170747 | AIR PIPE/DUCT |
| 2 | 504170859 | FASTENING BRACKET |
| 3 | 16597925 | HEXAGON BOLT M8X14 MM |
| 4 | 504170831 | RUBBER SLEEVE |
| 5 | 17764991 | CLIP Ø50/70 MM |
| 6 | 504170750 | SUCTION LINE |
| 7 | 504017427 | CLIP |
| 8 | 17283681 | O-RING Ø45,6 MM SP=2,62 MM |
