F4GE9484F*J602

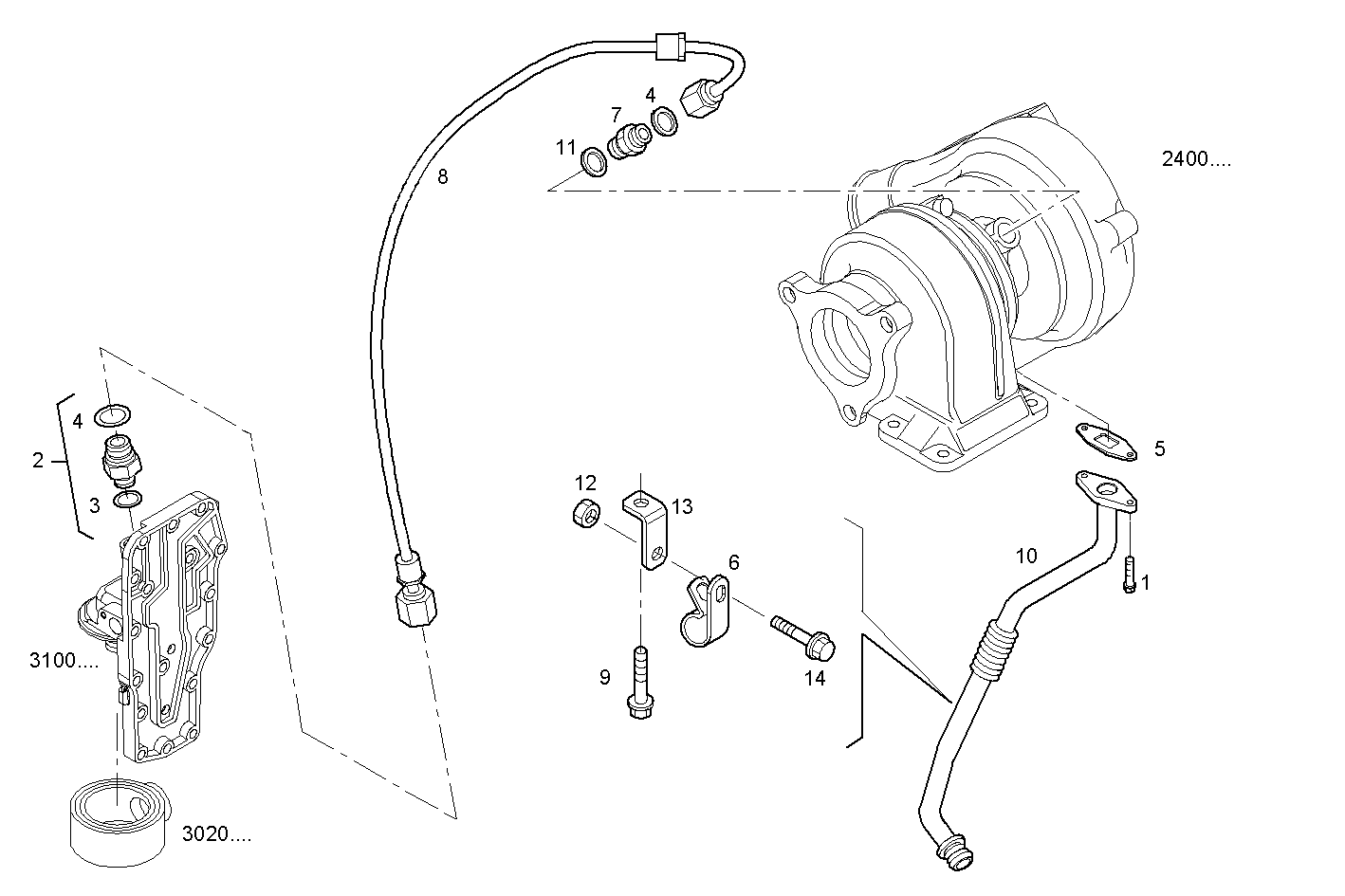

3063.018 TURBOCHARGER OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4895164 | HEXAGON BOLT |
| 2 | 4895107 | THREADED UNION ASSY |
| 3 | 4899107 | O-RING |
| 4 | 4899108 | O-RING |
| 5 | 4899467 | FLAT ENGINE GASKET |
| 6 | 4899519 | BRACKET |
| 7 | 4899106 | PIPE SOCKET |
| 8 | 504075228 | OIL LINE INLET |
| 9 | 16677735 | HEXAGON BOLT M12X25 MM |
| 10 | 504033527 | OIL LINE |
| 11 | 4899121 | O-RING |
| 12 | 17044625 | HEXAGON NUT M6 |
| 13 | 504053894 | FASTENING BRACKET |
| 14 | 18137825 | HEXAGON BOLT M6X16 |
