F4GE9484F*J602

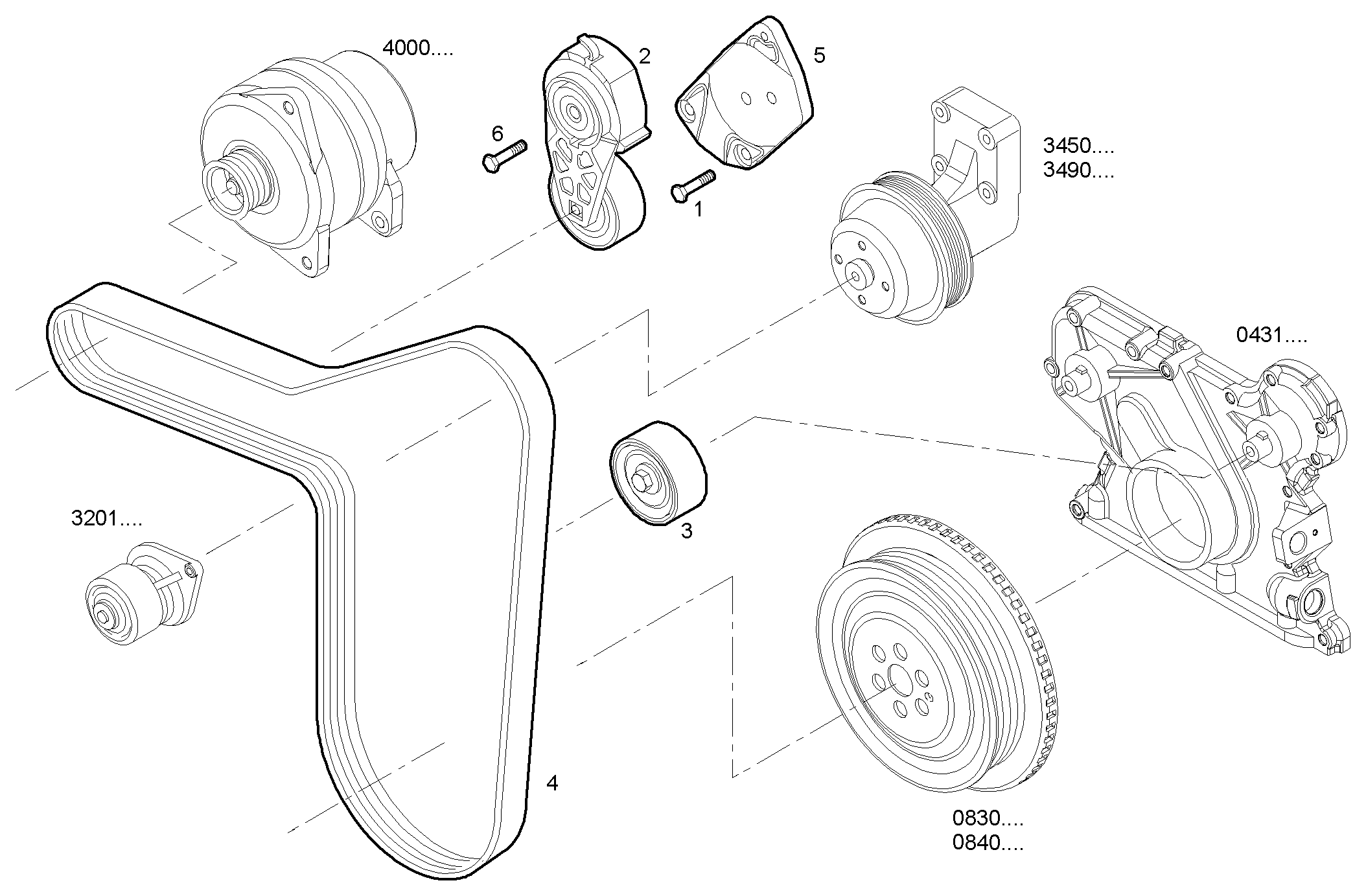

3400.044 WATER PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4899079 | HEXAGON BOLT |
| 2 | 504028028 | BELT TENSIONER |
| 3 | 504065880 | PULLEY |
| 4 | 504078558 | V-BELT |
| 5 | 504064340 | SUPPORT |
| 6 | 4899109 | HEXAGON BOLT M10X1,5X80 MM |
