F4GE9684J*J603

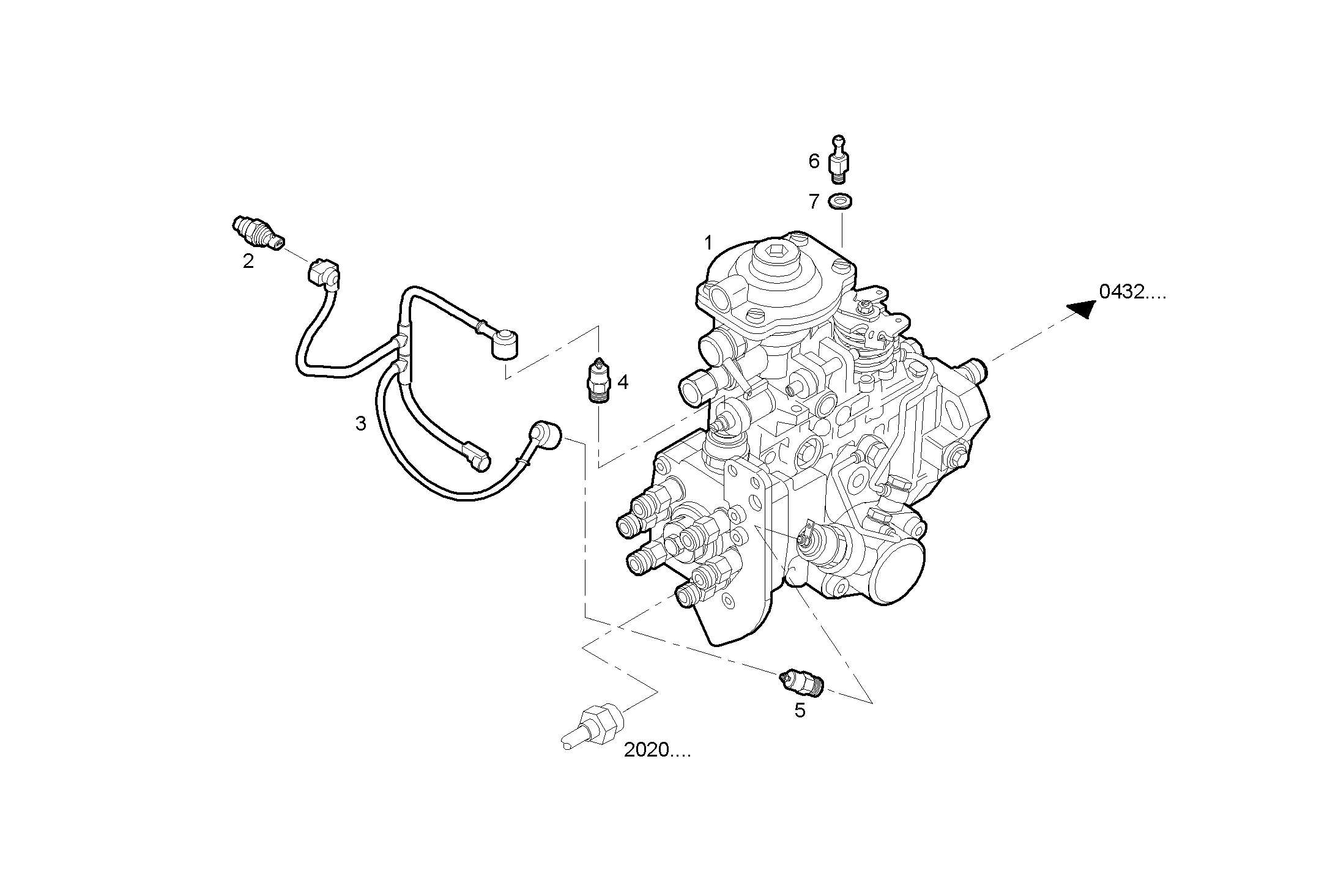

1400.073 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504129606 | DISTRIB.INJ.PUMP ASSY |
| 2 | 504264463 | SENSOR water temperature for KSB |
| 3 | 504060728 | WIRE/CABLE for electrovalve & ksb |
| 4 | 42533181 | ELECTROVALVE 12V |
| 5 | 93192974 | MAGNETO KSB |
| 6 | 504053728 | BALL JOINT |
| 7 | 17088471 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
