F4HE9684W*J101

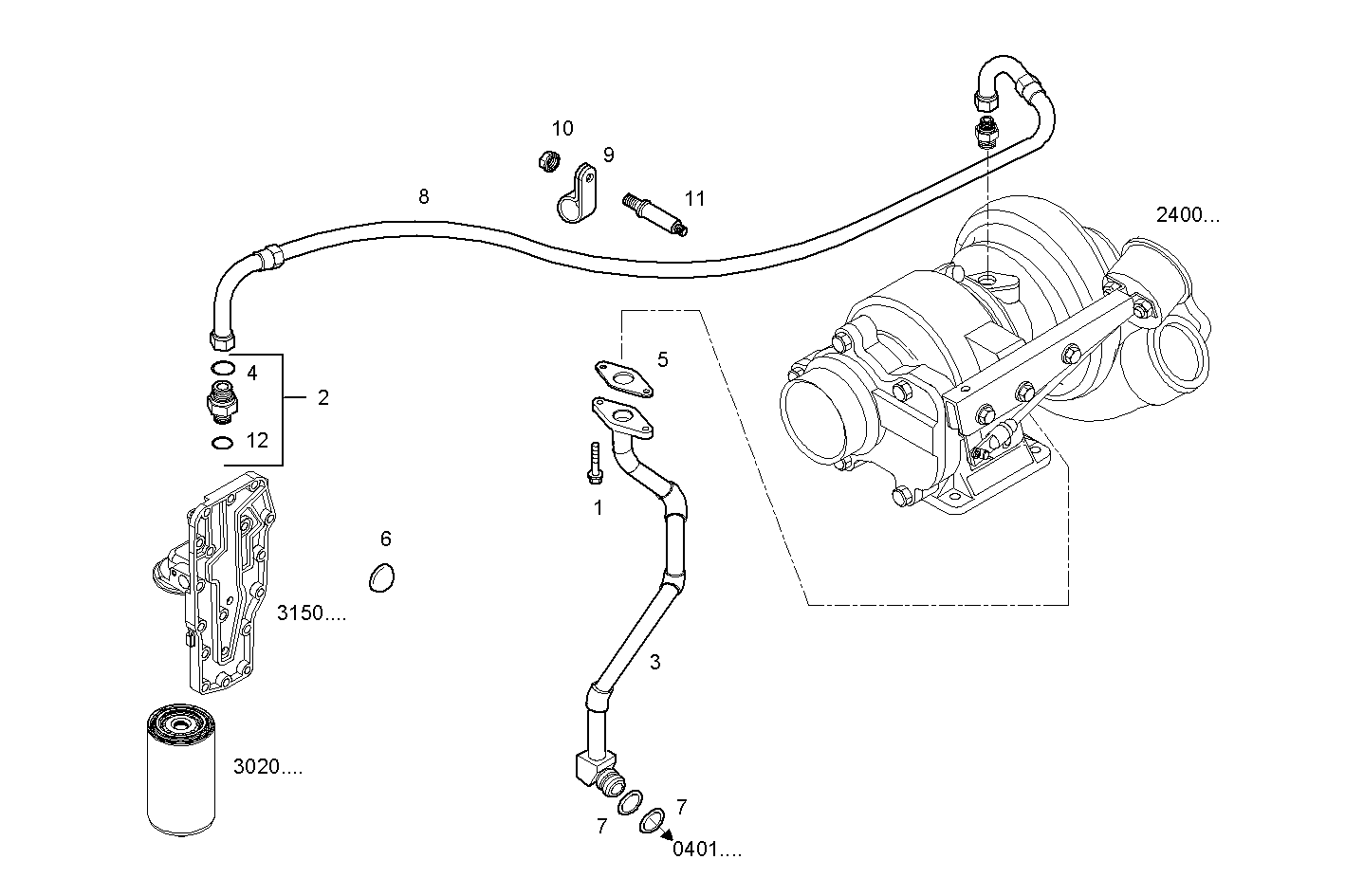

3063.019 TURBOCHARGER OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4899079 | HEXAGON BOLT |
| 2 | 4895107 | THREADED UNION ASSY |
| 3 | 504079069 | OIL LINE |
| 4 | 4899108 | O-RING |
| 5 | 4891288 | FLAT ENGINE GASKET |
| 6 | 4895089 | PLUG |
| 7 | 17281881 | O-RING DIA 17,12 SP 2,62 |
| 8 | 4899377 | OIL LINE |
| 9 | 4899436 | CLIP M8X17 MM |
| 10 | 17044735 | NUT M8 |
| 11 | 504129243 | COLLAR SCREW |
| 12 | 4899107 | O-RING |
