F4HE9684X*J101

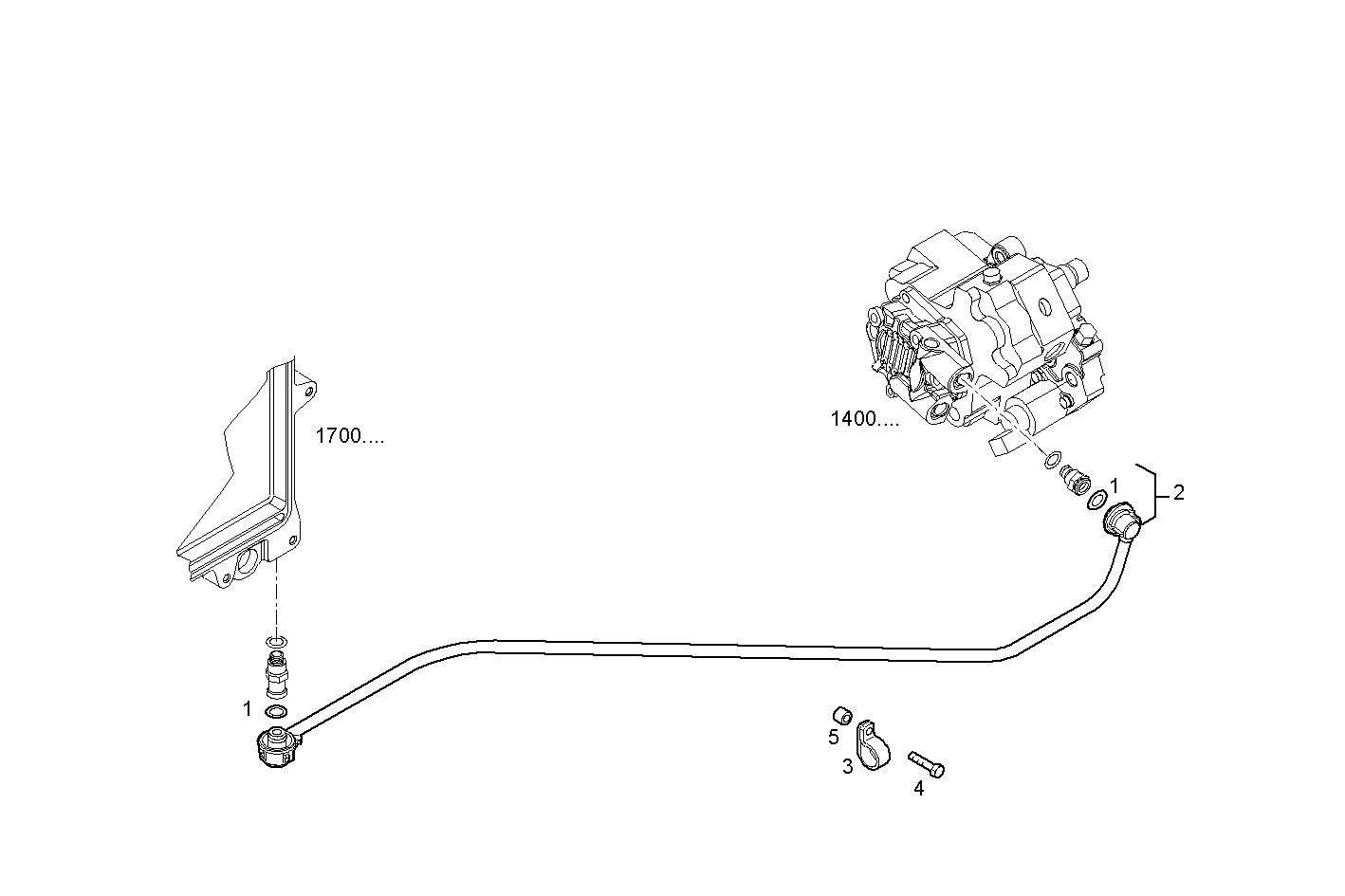

2036.013 FUEL LINES - RETURN TO FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4894095 | O-RING |
| 2 | 4897817 | FUEL LINE ASSY |
| 3 | 17316399 | FASTENING BRACKET |
| 4 | 4899063 | HEXAGON BOLT M8X30 MM |
| 5 | 17816314 | SPACING BAR Ø8,5X18 MM SP=15 MM |
