F4HE9684X*J101

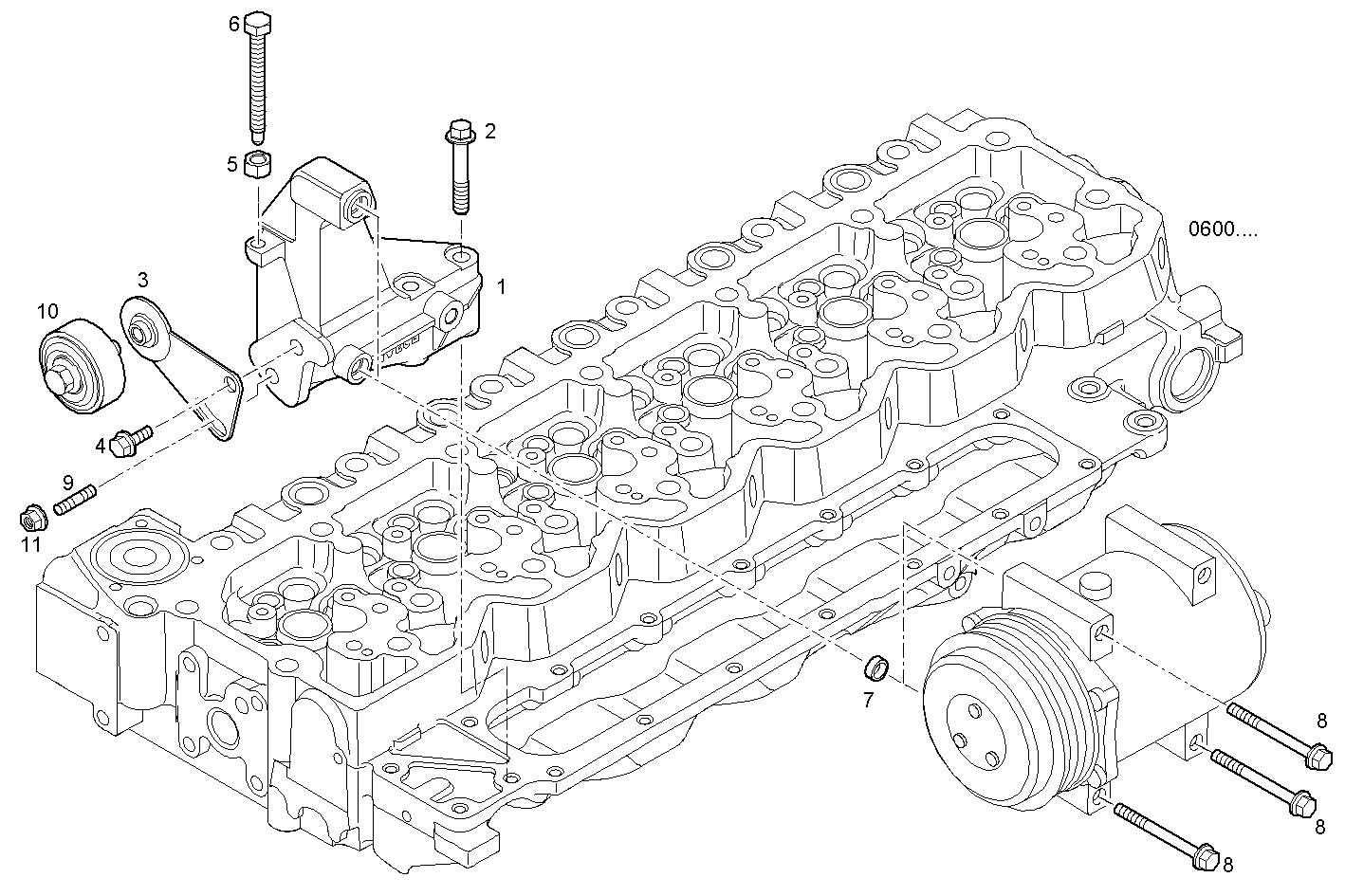

3900.023 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 504051135 | SUPPORT |
| 2 | 4899109 | HEXAGON BOLT M10X1,5X80 MM |
| 3 | 504068523 | BELT TENSIONER |
| 4 | 16675835 | HEXAGON BOLT M10X30 MM |
| 5 | 17038131 | HEXAGON NUT M10 |
| 6 | 504020255 | HEXAGON BOLT |
| 7 | 4895227 | DOWEL PIN |
| 8 | 16598324 | HEXAGON BOLT M8X100 MM |
| 9 | 16731324 | STUD M10X30 MM |
| 10 | 504068024 | PULLEY |
| 11 | 17044825 | HEXAGON NUT M10 |
