F4HE9687D*J100

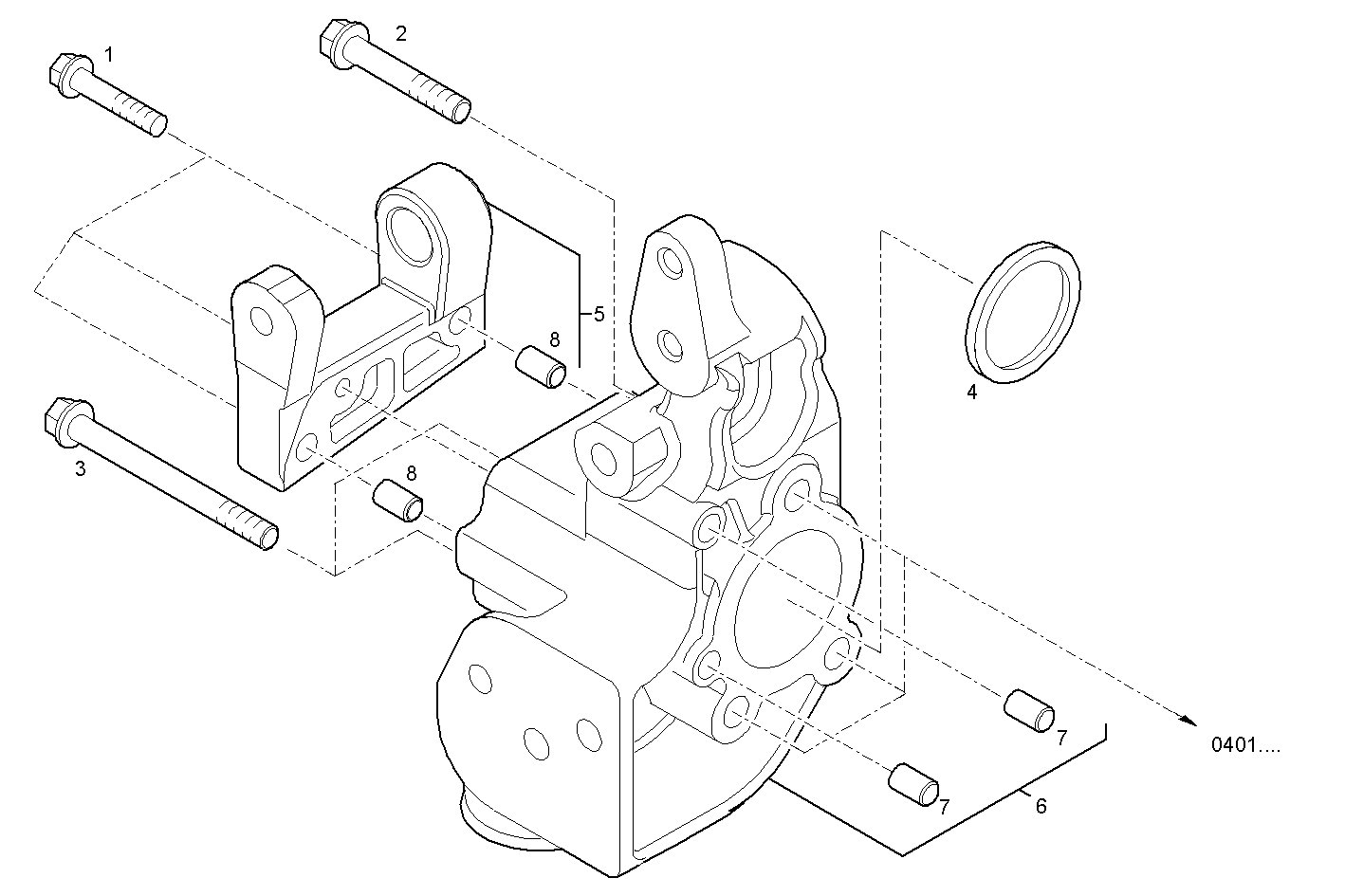

3230.060 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 2 | 16676834 | HEXAGON BOLT M10X70 MM |
| 3 | 16599125 | HEXAGON BOLT M10X130 MM |
| 4 | 504062710 | WASHER |
| 5 | 504074091 | GENERATOR SUPPORT ASSY |
| 6 | 504074183 | GENERATOR SUPPORT ASSY |
| 7 | 4895576 | DOWEL PIN |
| 8 | 4895227 | DOWEL PIN |
