F4HE9687D*J100

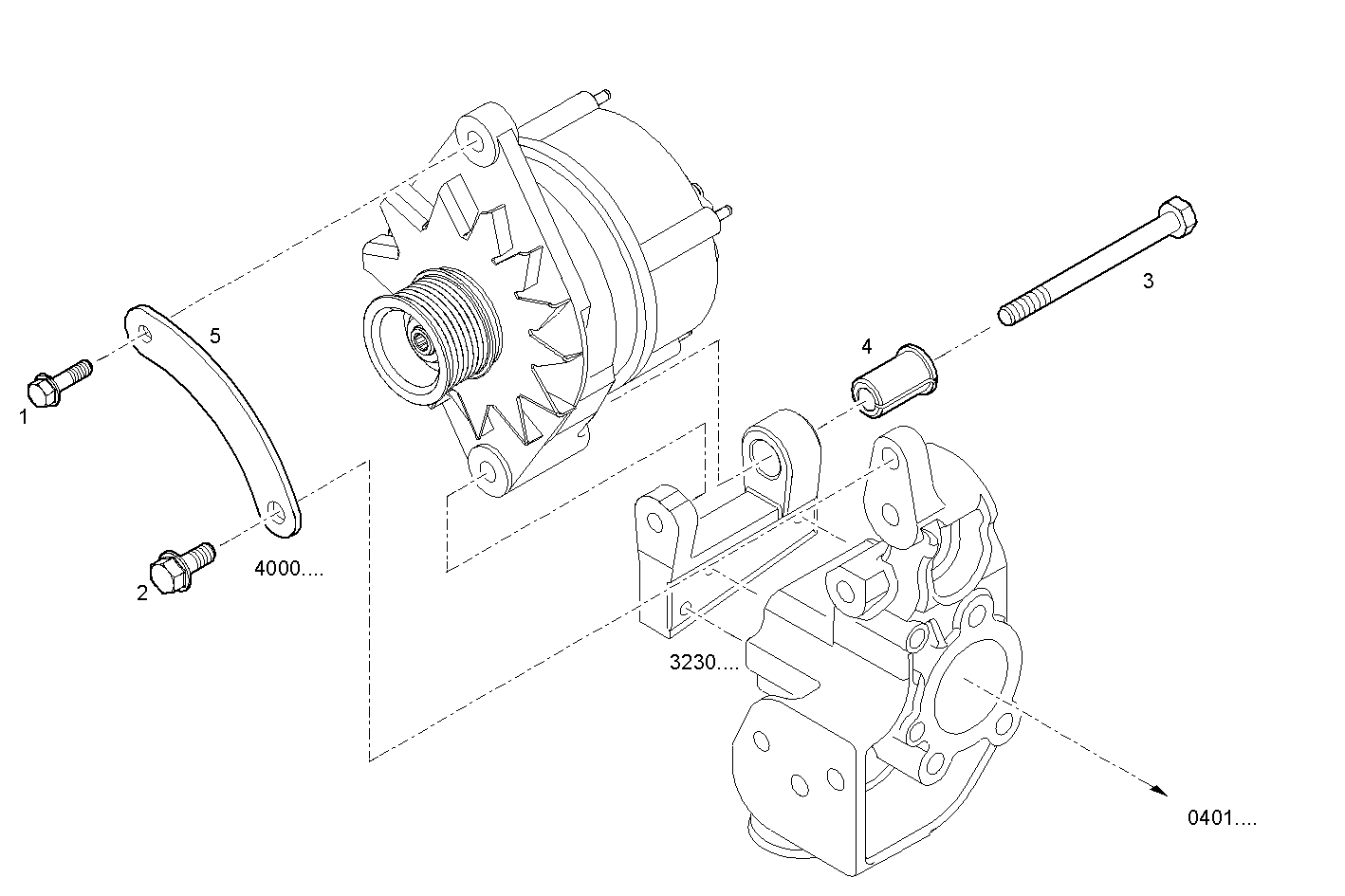

4010.130 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 16673735 | HEXAGON BOLT M8X25 MM |
| 2 | 18139424 | HEXAGON BOLT M10X20 MM |
| 3 | 16593125 | HEXAGON BOLT M10X100 MM |
| 4 | 504060839 | SPACING BAR |
| 5 | 504073701 | RETAINER |
