F4HE9687P*J100

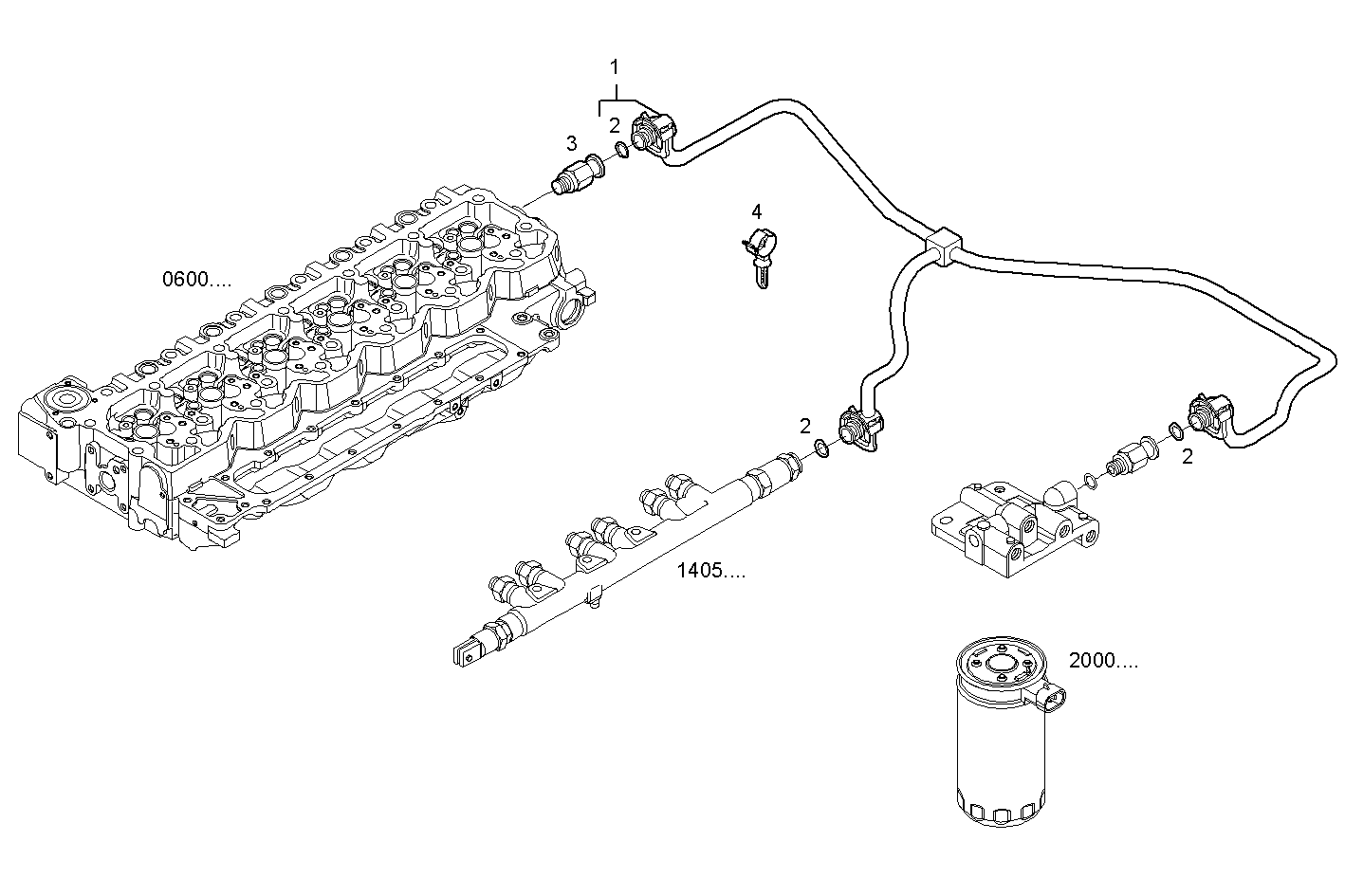

2030.287 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504092381 | FUEL LINE ASSY |
| 2 | 4894095 | O-RING |
| 3 | 4896329 | CONTROL VALVE |
| 4 | 4896996 | RETAINING SPRING |
| Item | Part number | Description |
|---|---|---|
| 1 | 504092381 | FUEL LINE ASSY |
| 2 | 4894095 | O-RING |
| 3 | 4896329 | CONTROL VALVE |
| 4 | 4896996 | RETAINING SPRING |
