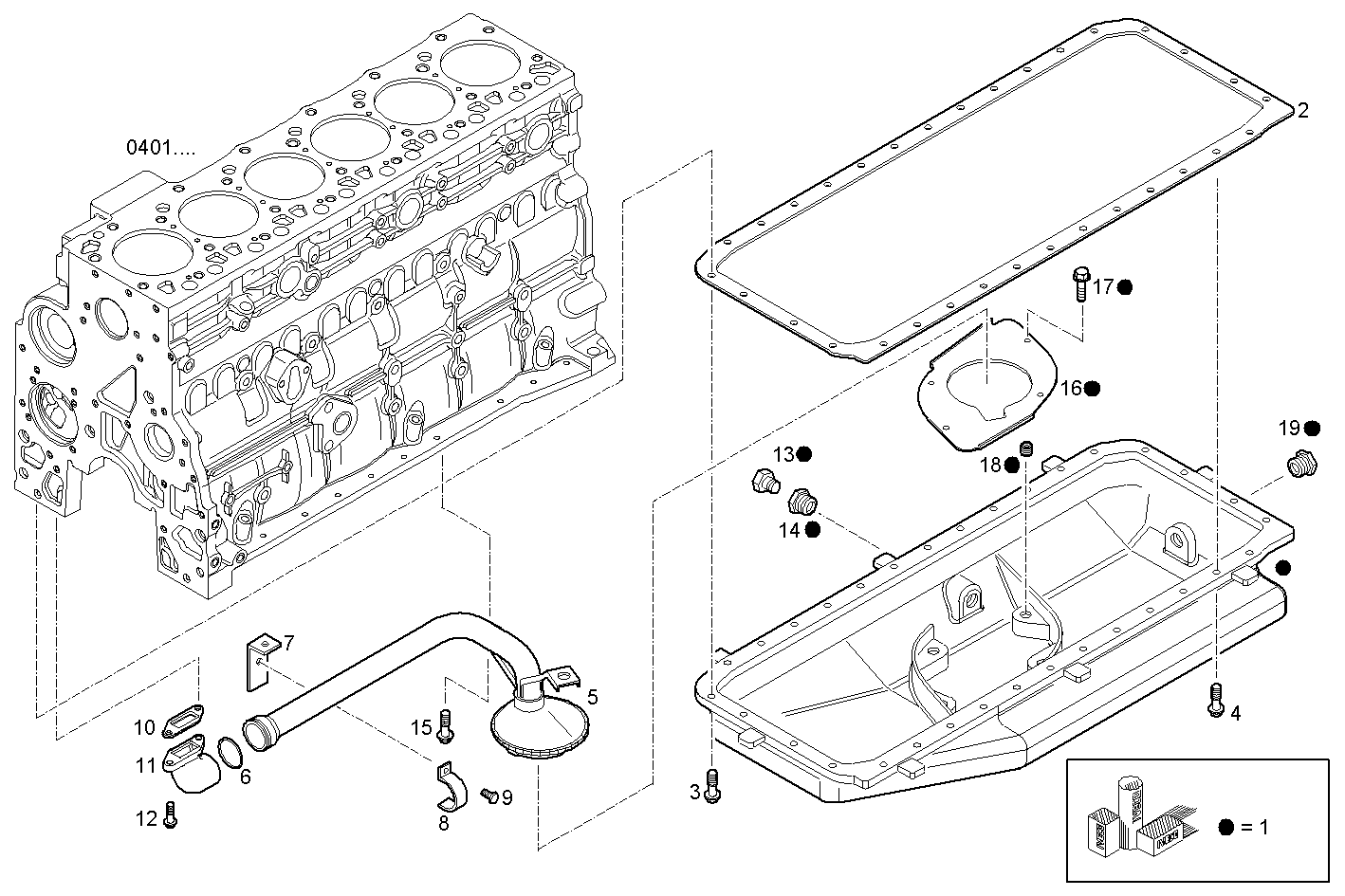

| Item |
Part number |
Description |
|
1 |
504327051 |
MARINE ENGINE OIL SUMP ASSY |
|
2 |
504027340 |
OIL SUMP GASKET |
|
3 |
16586925 |
HEXAGON BOLT M8X50 MM |
|
4 |
16673835 |
HEXAGON BOLT M8X30 MM |
|
5 |
8052080 |
SUCTION STRAINER |
|
6 |
17289281 |
O-RING Ø34,5 MM SP=3,53 MM |
|
7 |
8052726 |
FASTENING BRACKET |
|
8 |
504018526 |
CLIP |
|
9 |
18137825 |
HEXAGON BOLT M6X16 |
|
10 |
4898301 |
FLAT ENGINE GASKET |
|
11 |
500389915 |
PIPE SOCKET |
|
12 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
13 |
16992340 |
THREADED PLUG M14X1,5 |
|
14 |
8037440 |
BUSH M24X1,5/M14X1,5 |
|
15 |
4895291 |
HEXAGON BOLT M10X1,5X20 MM |
|
16 |
504327233 |
PLATE |
|
17 |
16586225 |
HEXAGON BOLT M8X1,25X16 MM |
|
18 |
17873271 |
THREADED INSERT M8 |
|
19 |
8109299 |
BUSH M24X1,5/M16X1,5 |
