F5AE5454F*A001

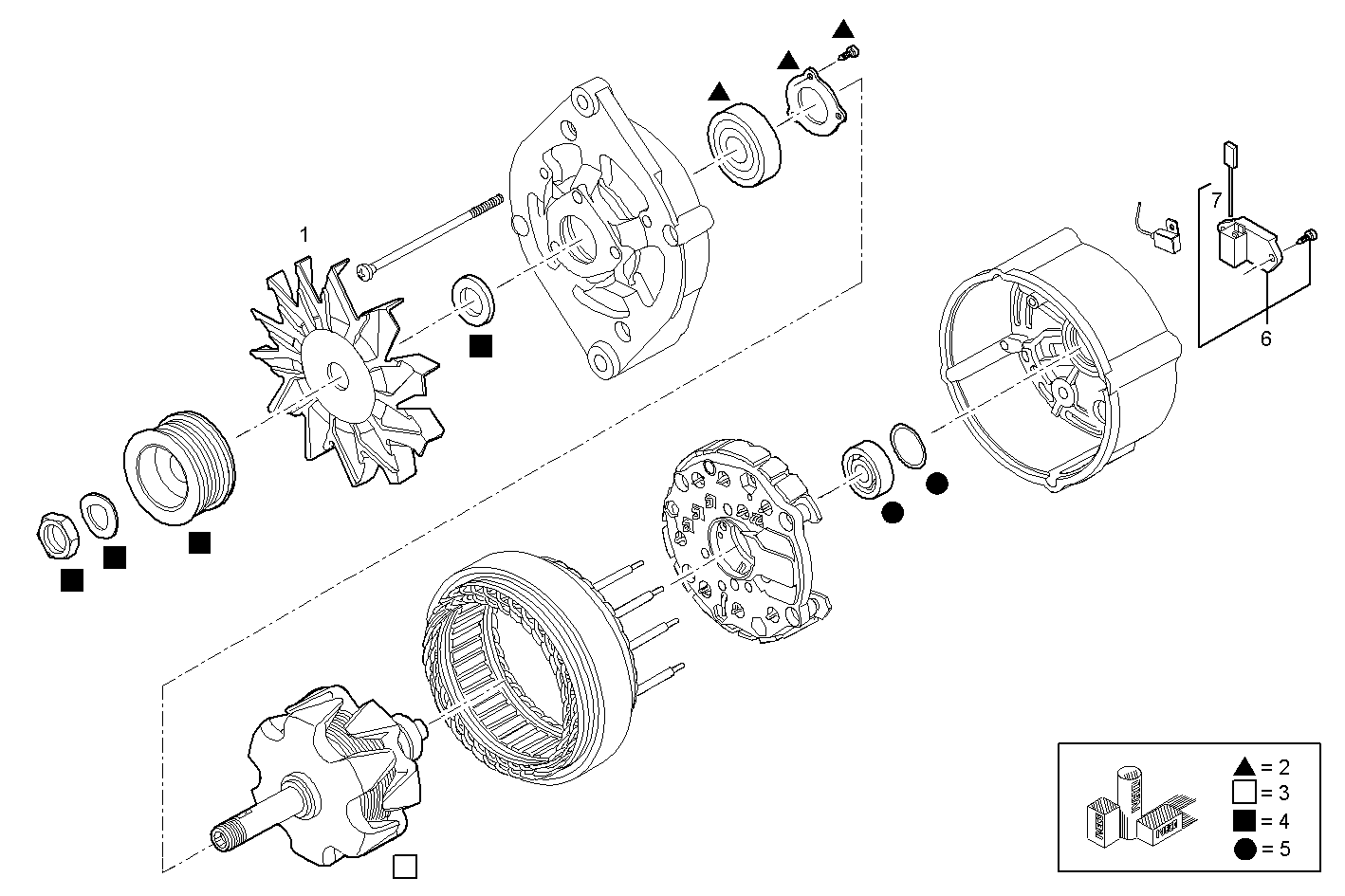

4030.017 GENERATOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 8097594 | GENERATOR FAN |
| 2 | 8097655 | DRIVE BEARING |
| 3 | 8097689 | ROTOR |
| 4 | 8097597 | GENERATOR PULLEY |
| 5 | 8097656 | DRIVE BEARING |
| 6 | 8097657 | VOLTAGE REGULATOR |
| 7 | 8097658 | GENERATOR BRUSH |
