F5AE9454F*A001

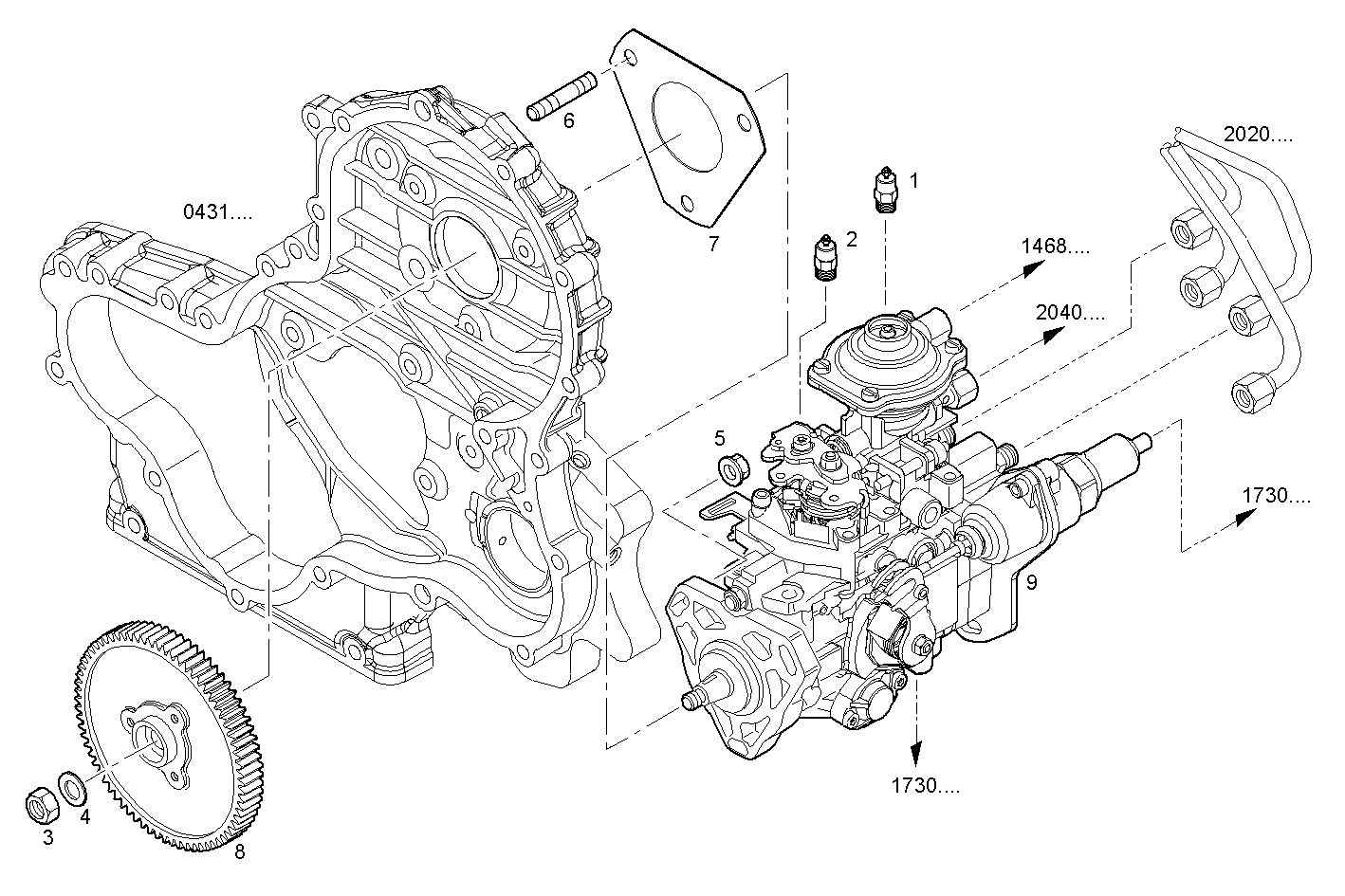

1400.360 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 42533181 | ELECTROVALVE 12V |
| 2 | 93192974 | MAGNETO KSB |
| 3 | 16980331 | NUT M14X1,5 |
| 4 | 17095401 | WASHER Ø14X24 MM |
| 5 | 500368408 | NUT M8X1,25 |
| 6 | 504315405 | STUD M8X30 MM |
| 7 | 2831123 | FLAT ENGINE GASKET |
| 8 | 504240405 | INJ.PUMP DRIV.GEA |
| 9 | 504322602 | DISTRIB.INJ.PUMP |
