F5AE9484A*A002

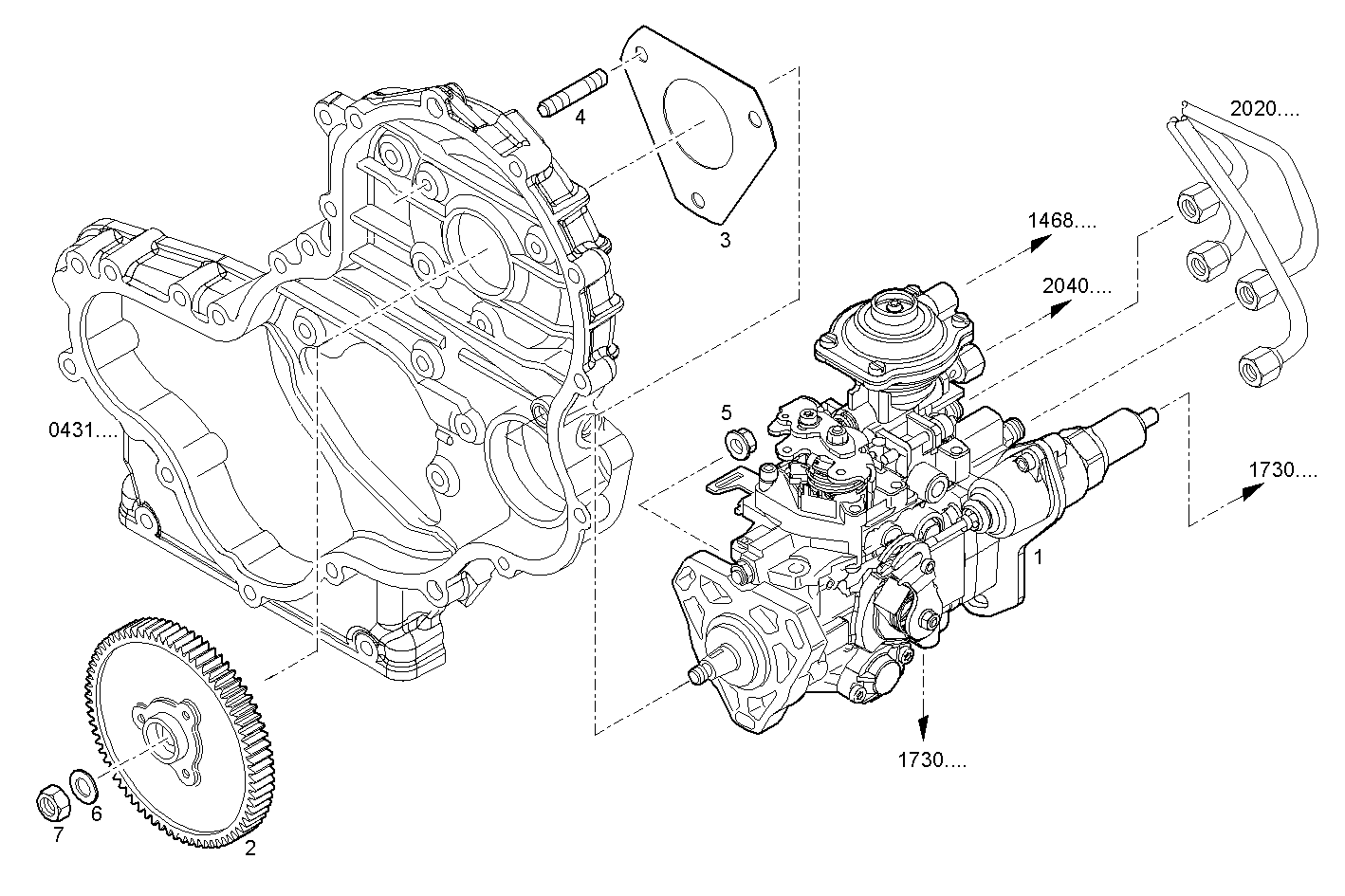

1400.447 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504246316 | DISTRIB.INJ.PUMP |
| 2 | 504240405 | INJ.PUMP DRIV.GEA |
| 3 | 2831123 | FLAT ENGINE GASKET |
| 4 | 504315405 | STUD M8X30 MM |
| 5 | 500368408 | NUT M8X1,25 |
| 6 | 17095404 | WASHER Ø14X24 MM |
| 7 | 16980331 | NUT M14X1,5 |
