F5AE9484B*A004

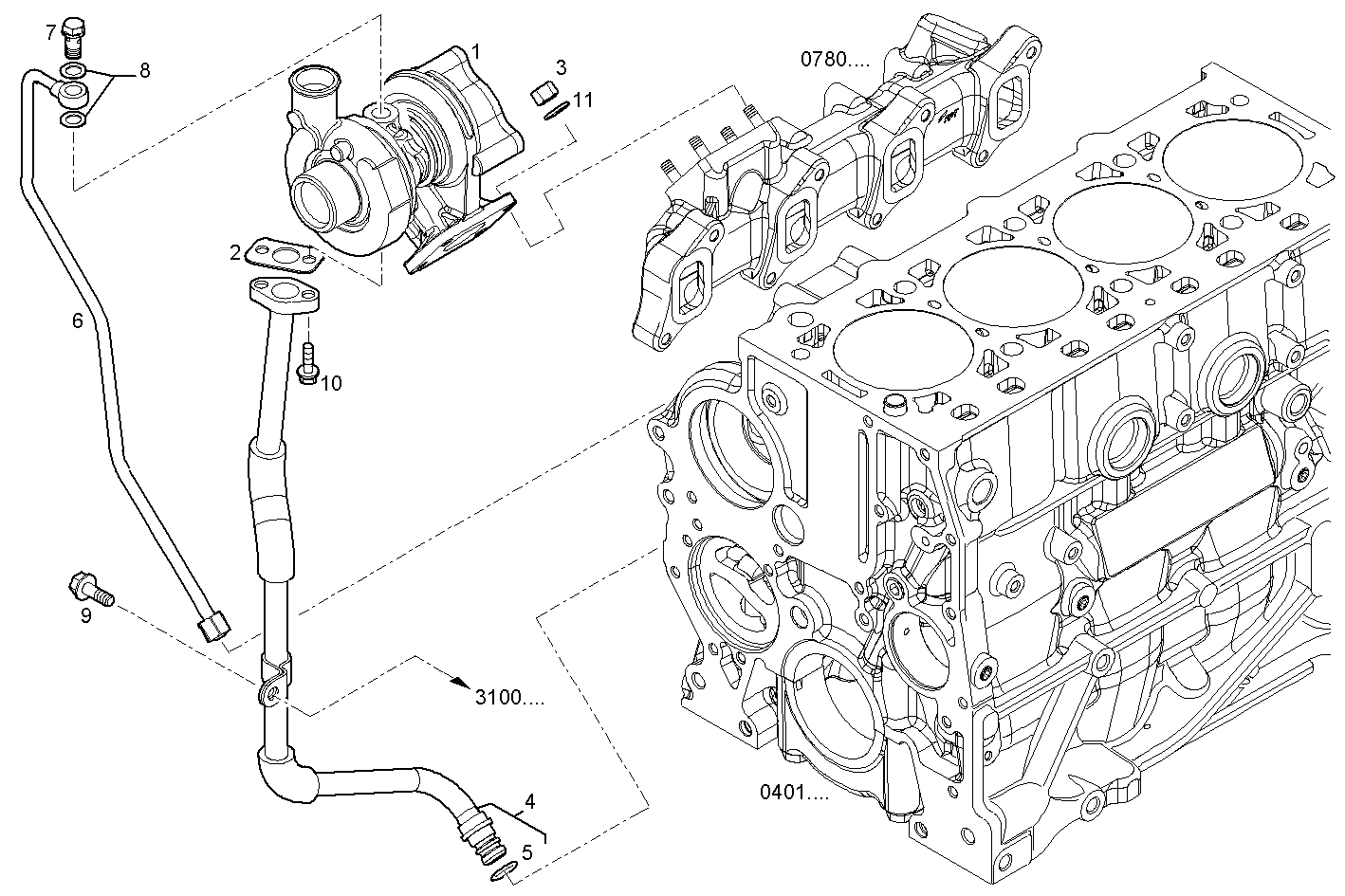

2400.067 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504242763 | TURBOCHARGER |
| 2 | 500370706 | FLAT ENGINE GASKET |
| 3 | 500322677 | HEXAGON NUT M8 |
| 4 | 504164226 | OIL LINE OUTLET |
| 5 | 17281681 | O-RING Ø13,9 MM SP=2,6 MM |
| 6 | 504164224 | OIL LINE INLET |
| 7 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 8 | 17750480 | GASKET [FROM # 376647] |
| 9 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 10 | 18137825 | HEXAGON BOLT M6X16 |
| 11 | 17094914 | WASHER 8x16 |
