F5CE9454C*A001

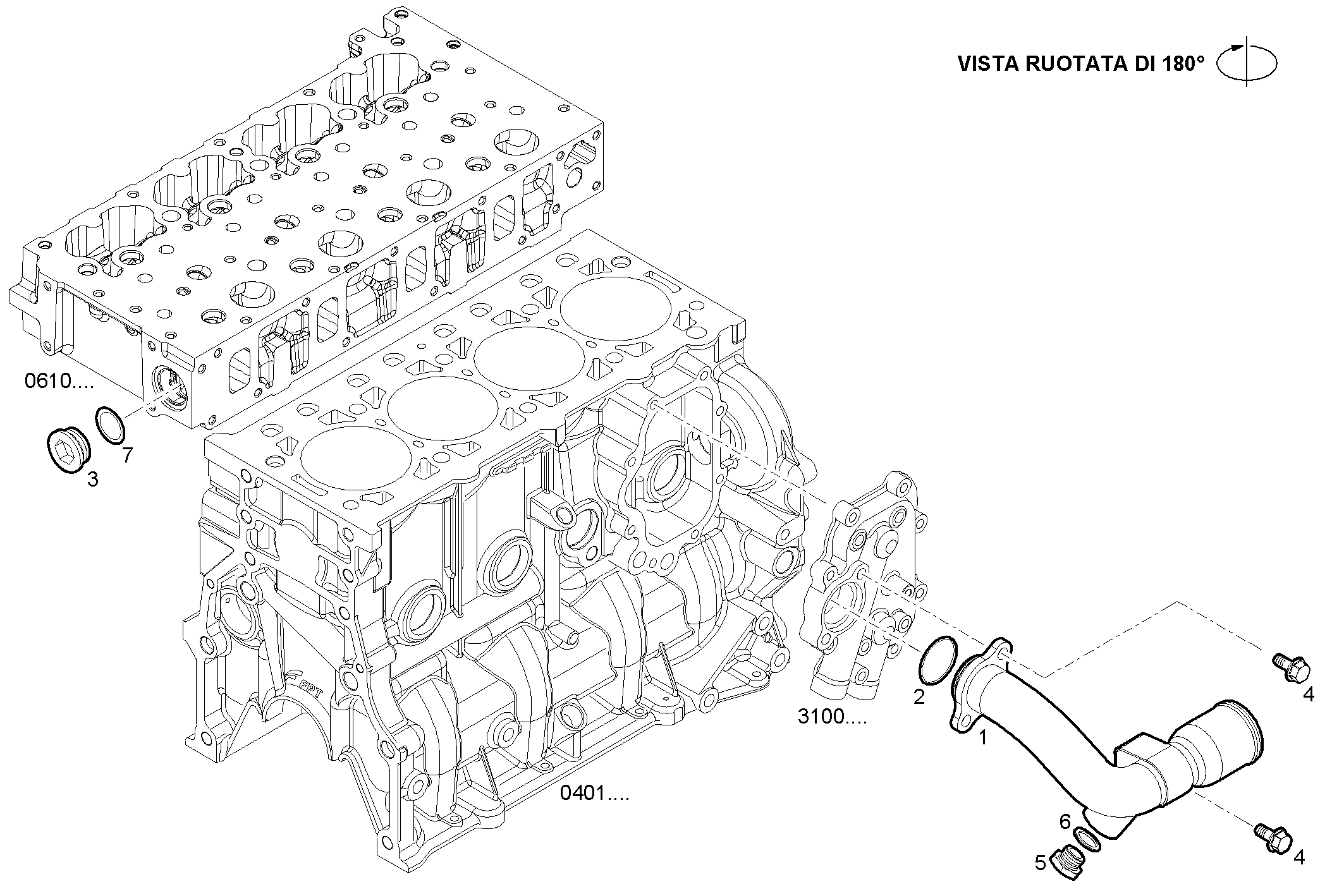

3230.045 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504182961 | WATER PIPE |
| 2 | 17289081 | O-RING Ø31,34X3,53 MM |
| 3 | 16993711 | THREADED PLUG M35X1,5 |
| 4 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 5 | 16992411 | THREADED PLUG M16X1,5 |
| 6 | 10257060 | SEAL GASKET Ø16X22 MM SP=1,5 MM |
| 7 | 10265160 | SEAL GASKET Ø35,3 MM |
