F5CE9454E*A005

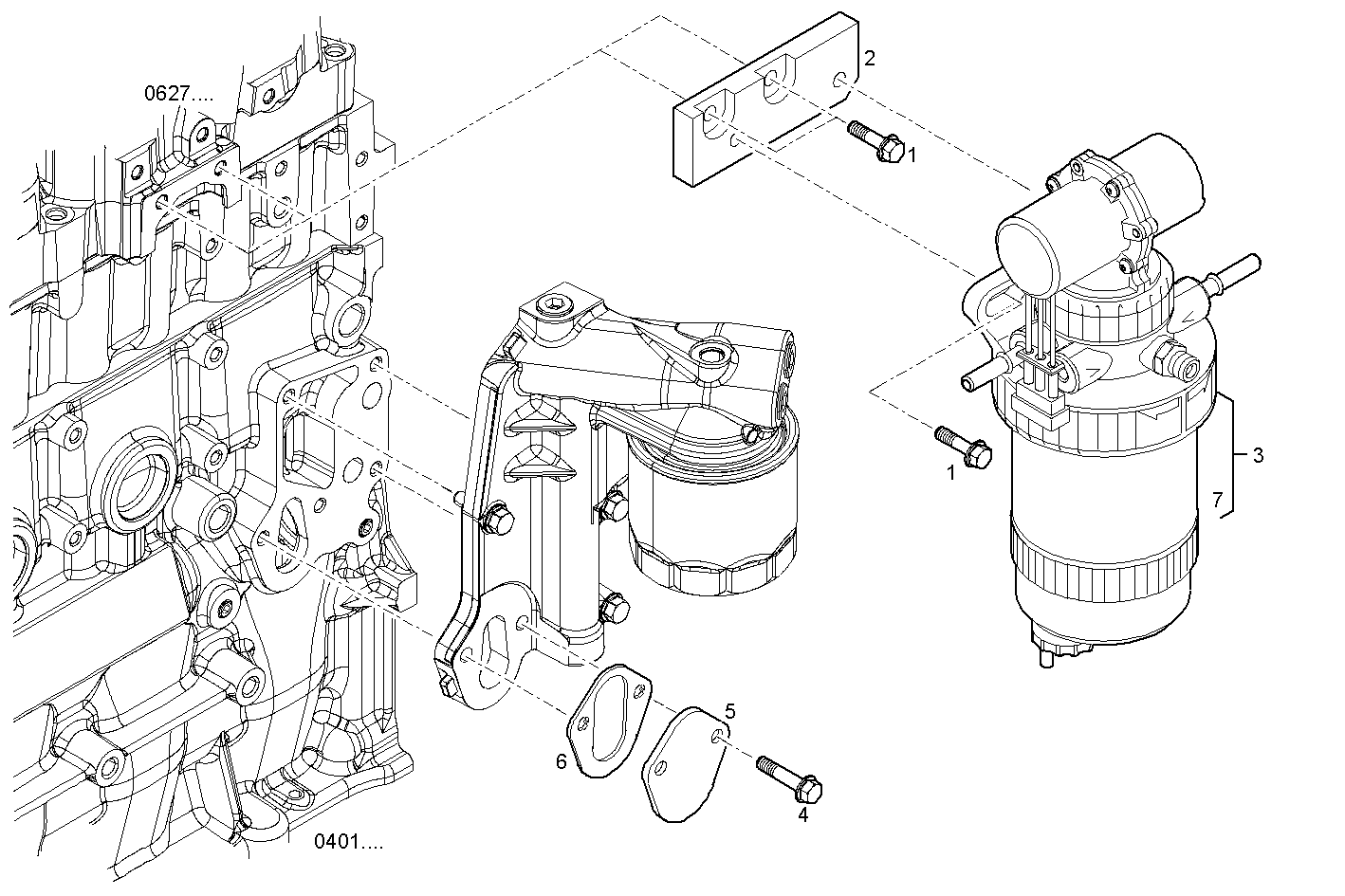

2010.009 FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 16673735 | HEXAGON BOLT M8X25 MM |
| 2 | 504355746 | SPACING BAR |
| 3 | 504355783 | FUEL FILTER ASSY 12V |
| 4 | 16673835 | HEXAGON BOLT M8X30 MM |
| 5 | 504332869 | COVER |
| 6 | 504332889 | FLAT ENGINE GASKET |
| 7 | 8097665 | FUEL FILTER CARTRIDGE |
