F5CE9455B*A001

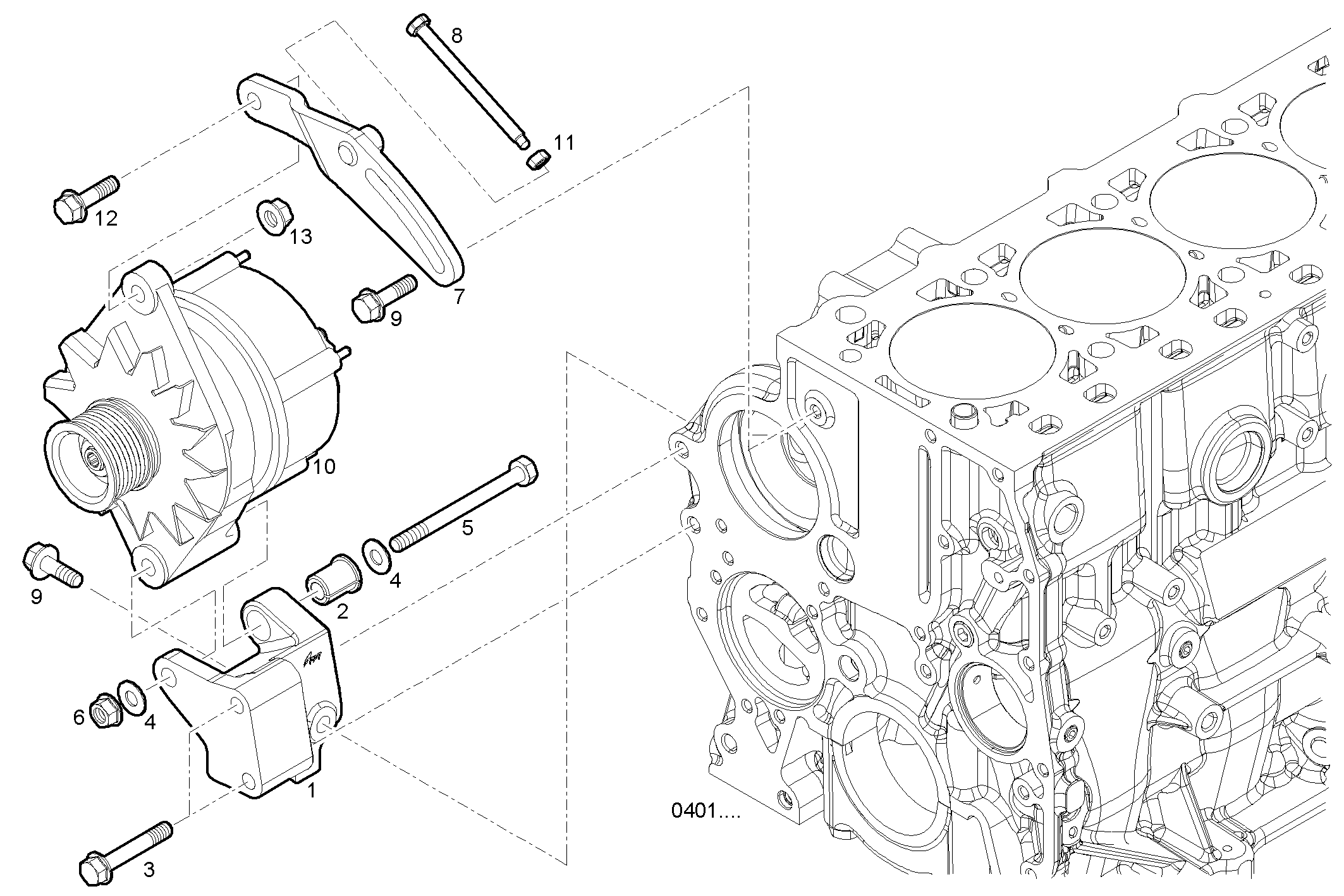

4000.209 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504276997 | GENERATOR SUPPORT |
| 2 | 504060839 | SPACING BAR |
| 3 | 16587824 | HEXAGON BOLT M10X1,5X60 MM |
| 4 | 17097124 | WASHER 10x21 |
| 5 | 15972224 | HEXAGON BOLT M10X1,25X120 MM |
| 6 | 17044825 | HEXAGON NUT M10 |
| 7 | 504243953 | BELT TENSIONER |
| 8 | 504302206 | HEXAGON BOLT |
| 9 | 16587325 | HEXAGON BOLT M10X35 MM |
| 10 | 504060771 | ALTERNATOR ASSY |
| 11 | 17038021 | HEXAGON NUT M8X1 |
| 11 | 17037925 | HEXAGON NUT M8X1,25 |
| 12 | 16586625 | HEXAGON BOLT M8X35 MM |
| 13 | 17044735 | NUT M8 |
