F5CE9459B*A001

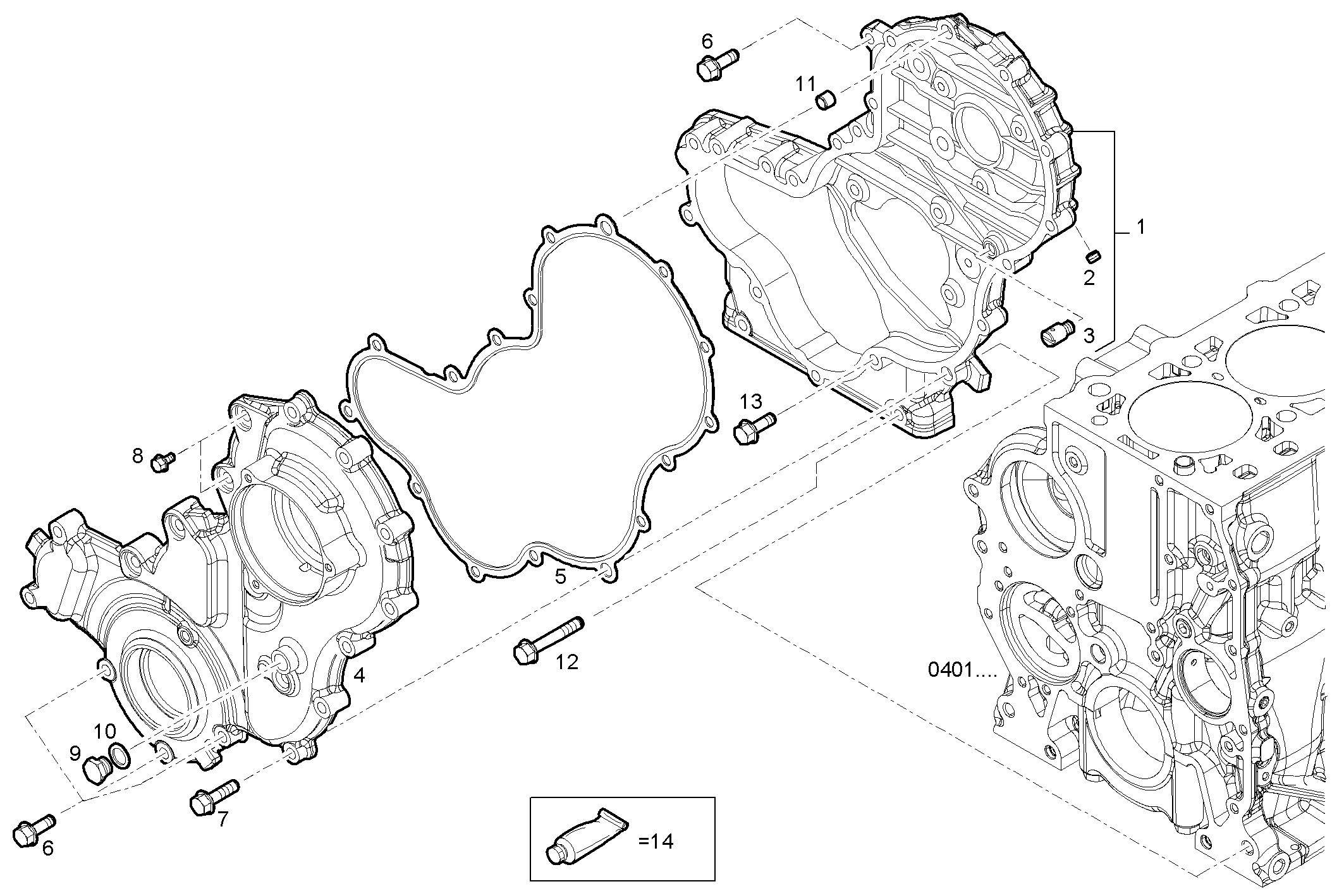

0431.017 FRONT C.CASE COVER
| Item | Part number | Description |
|---|---|---|
| 1 | 504244214 | TIMINGGEAR HOUSIN ASSY |
| 2 | 504051236 | THREADED PLUG DIAM=1/8" |
| 3 | 504204989 | OIL NOZZLE |
| 4 | 504242762 | FRONT C.CASE COVER |
| 5 | 504244287 | FLAT ENGINE GASKET |
| 6 | 16586424 | HEXAGON BOLT M8X25 MM |
| 7 | 16586624 | HEXAGON BOLT M8X35 MM |
| 8 | 4798845 | SCREW |
| 9 | 10300611 | LOCK PLUG M14X1,5 |
| 10 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 11 | 99435557 | DOWEL PIN Ø8,5 MM |
| 12 | 16586924 | HEXAGON BOLT M8X50 MM |
| 13 | 98401723 | HEXAGON BOLT M8X1,25X12 MM |
| 14 | 45500701 | ADHESIVE/STICKER |
