F5CE9459B*A001

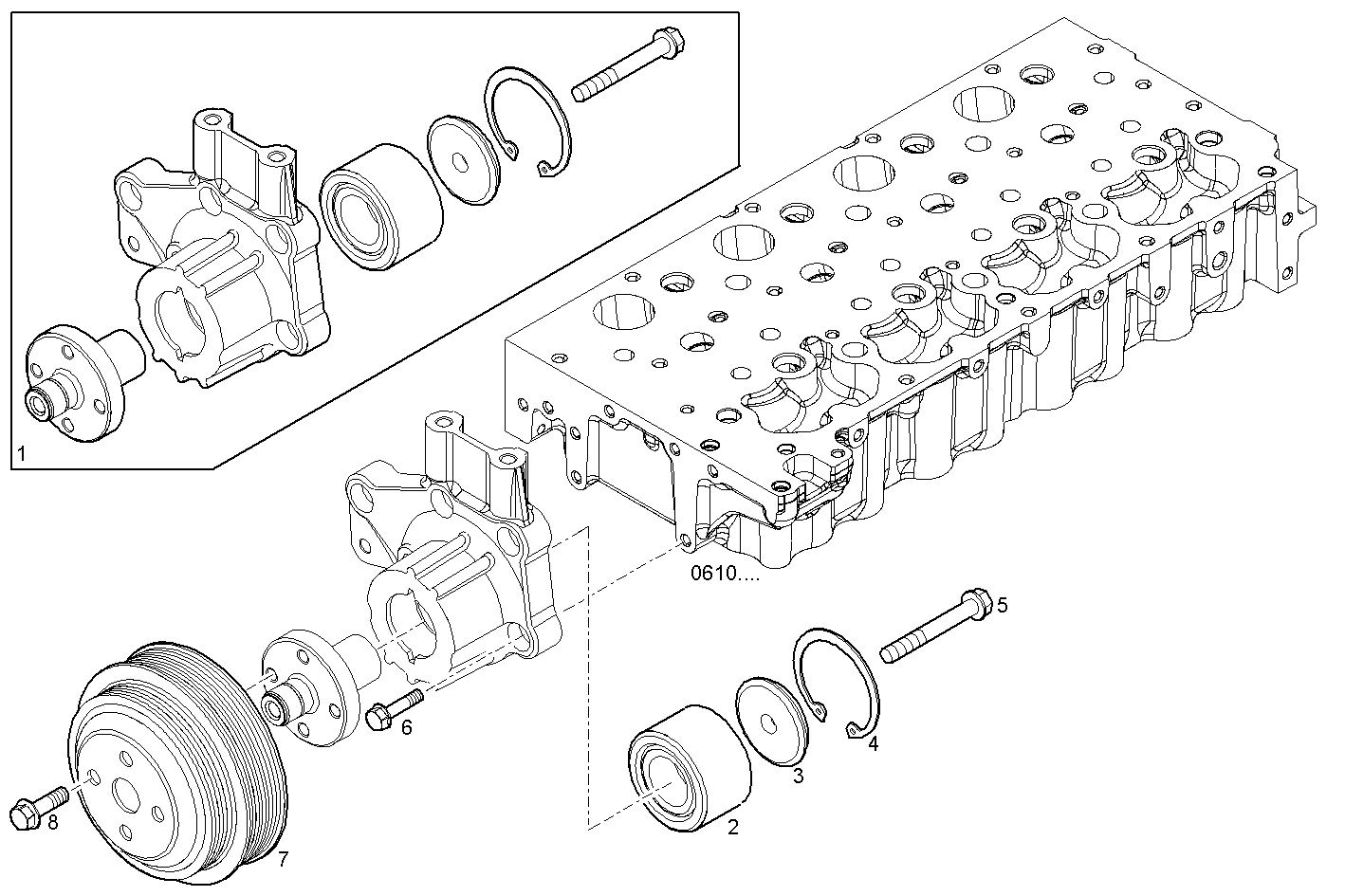

3490.009 FAN SUPPORT
| Item | Part number | Description |
|---|---|---|
| 1 | 504255372 | SUPPORT |
| 2 | 4892732 | BALL BEARING |
| 3 | 4890732 | WASHER |
| 4 | 500395697 | SPRING LOCKWASHER |
| 5 | 16676834 | HEXAGON BOLT M10X70 MM |
| 6 | 16673835 | HEXAGON BOLT M8X30 MM |
| 7 | 504255369 | PULLEY |
| 8 | 18139424 | HEXAGON BOLT M10X20 MM |
