F5CE9459B*A001

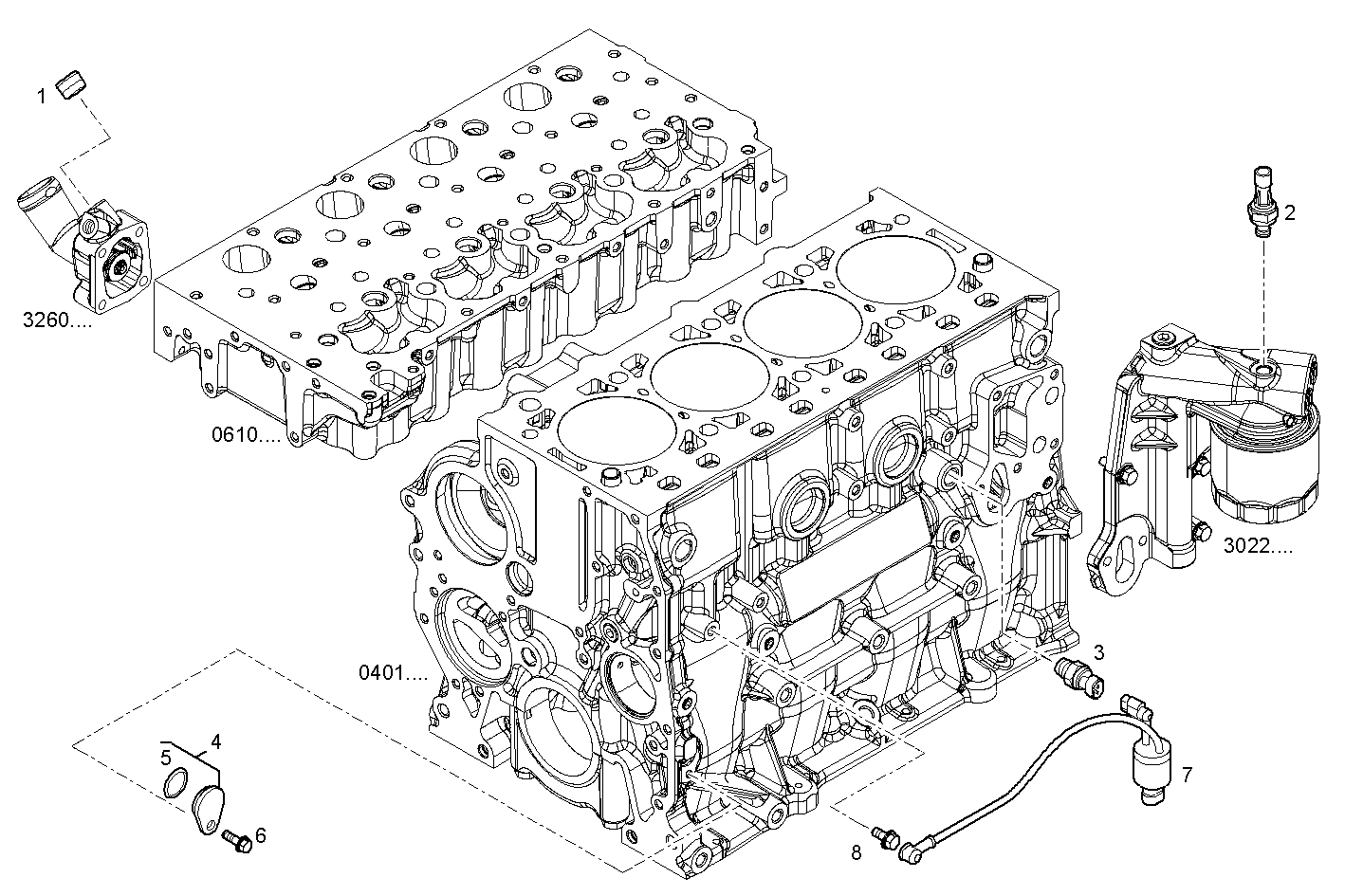

7000.011 DIAGNOSTIC SENSORS
| Item | Part number | Description |
|---|---|---|
| 1 | 4895078 | THREADED PLUG |
| 2 | 504084983 | PRESSURE SWITCH |
| 3 | 504291902 | THERMOSWITCH |
| 4 | 504265734 | LOCK PLUG ASSY |
| 5 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
| 6 | 16585625 | HEXAGON BOLT M6X12 |
| 7 | 504328905 | RELAY 24V |
| 8 | 16597925 | HEXAGON BOLT M8X14 MM |
