FVAE2884A*B200

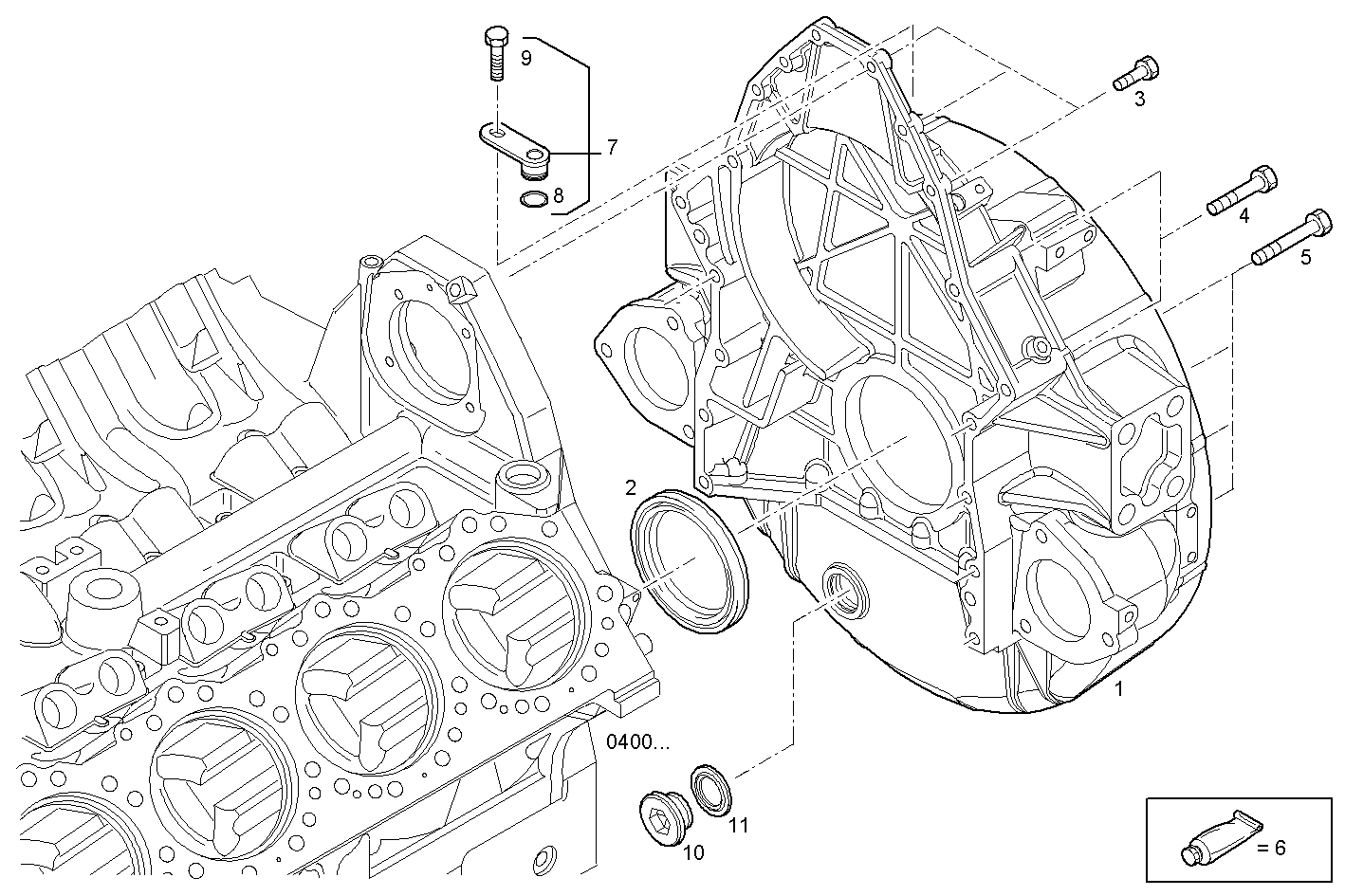

0435.024 FLYWHEEL HOUSING
| Item | Part number | Description |
|---|---|---|
| 1 | 504090103 | FLYWHEEL HOUSING |
| 2 | 504036095 | SHAFT SEAL Ø135X160X13/14 |
| 3 | 16677934 | HEXAGON BOLT M12X35 MM |
| 4 | 16681334 | HEXAGON BOLT M14X90 |
| 5 | 16681534 | HEXAGON BOLT M14X2X110 |
| 6 | 2992504 | ADHESIVE/STICKER LOCTITE |
| 7 | 504090317 | COVER |
| 8 | 17281681 | O-RING Ø13,9 MM SP=2,6 MM |
| 9 | 16597925 | HEXAGON BOLT M8X14 MM |
| 10 | 16992915 | THREADED PLUG M52X2 MM |
| 11 | 504052272 | WASHER |
