FVAE2884A*B200

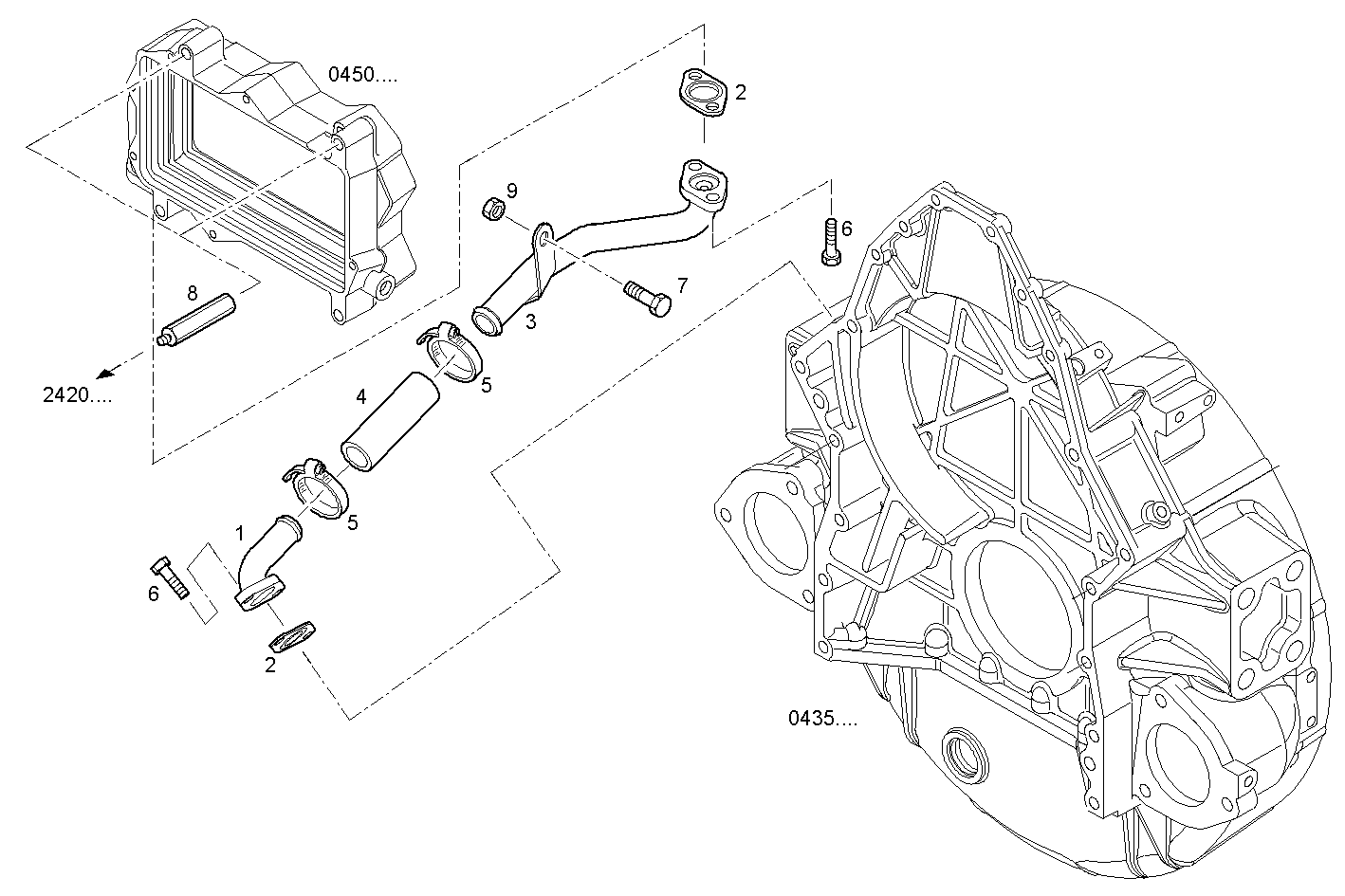

0450.229/02 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 504072528 | BREATHER PIPE |
| 2 | 504072992 | FLAT ENGINE GASKET |
| 3 | 504184327 | BREATHER PIPE |
| 4 | 504072530 | RUBBER SLEEVE |
| 5 | 17764792 | HOSE CLIP Ø32-50 MM |
| 6 | 16586425 | HEXAGON BOLT M8X25 MM |
| 7 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 8 | 504049505 | SPACING BAR |
| 9 | 16984235 | HEXAGON NUT M8 |
