FVAE2884A*B200

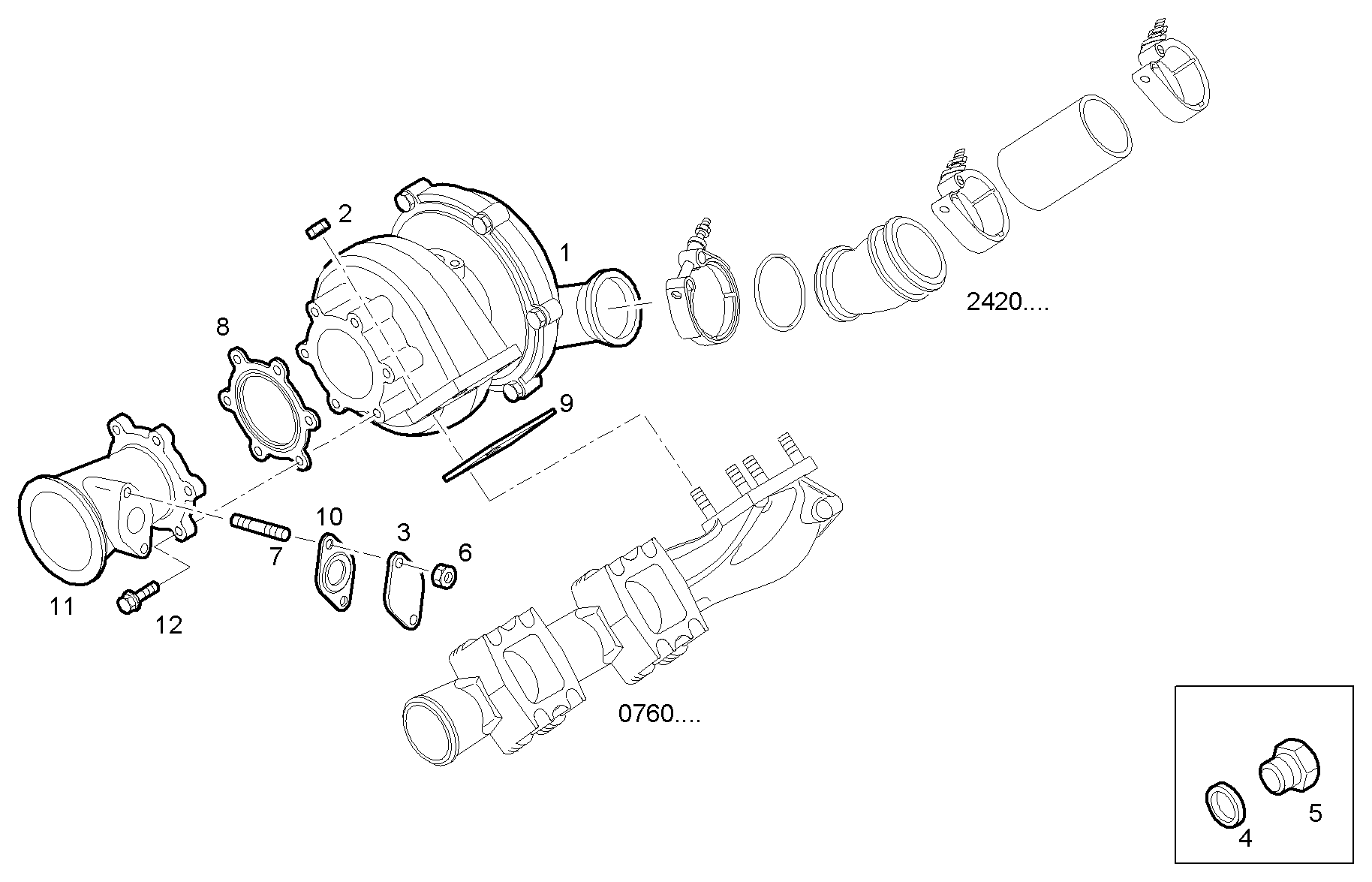

2400.270/02 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504182616 | TURBOCHARGER RIGHT [FROM # 994] |
| 2 | 500300795 | HEXAGON NUT M10X1,5 |
| 3 | 504094021 | COVER |
| 4 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 5 | 16992315 | THREADED PLUG M14X1,5 |
| 6 | 17044725 | HEXAGON NUT M8 |
| 7 | 16729434 | STUD M8X25 MM |
| 8 | 504056723 | GASKET |
| 9 | 504103435 | GASKET |
| 10 | 504054953 | GASKET |
| 11 | 504061998 | EXHAUST PIPE |
| 12 | 99453959 | SCREW |
