FVAE2884A*B200

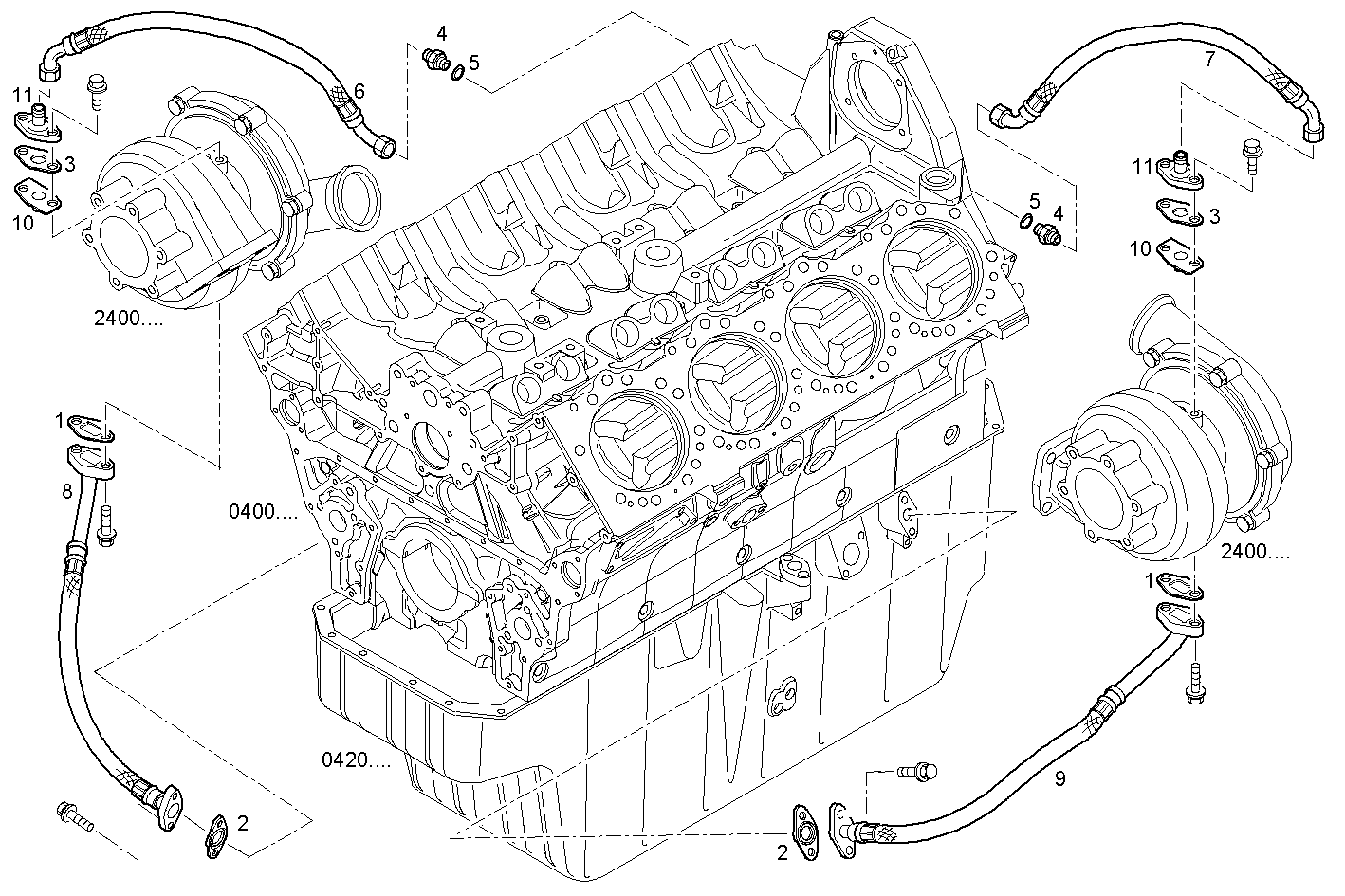

2400.270/03 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 98412509 | FLAT ENGINE GASKET |
| 2 | 99475979 | FLAT ENGINE GASKET |
| 3 | 61318303 | GASKET |
| 4 | 504142313 | SCREW CONNECTOR |
| 5 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 6 | 504042531 | OIL LINE Inlet turbo |
| 7 | 504042532 | OIL LINE Inlet turbo |
| 8 | 504120176 | OIL LINE outlet turbo |
| 9 | 504120174 | OIL LINE outlet turbo |
| 10 | 98482093 | GASKET |
| 11 | 4764795 | THREADED UNION |
