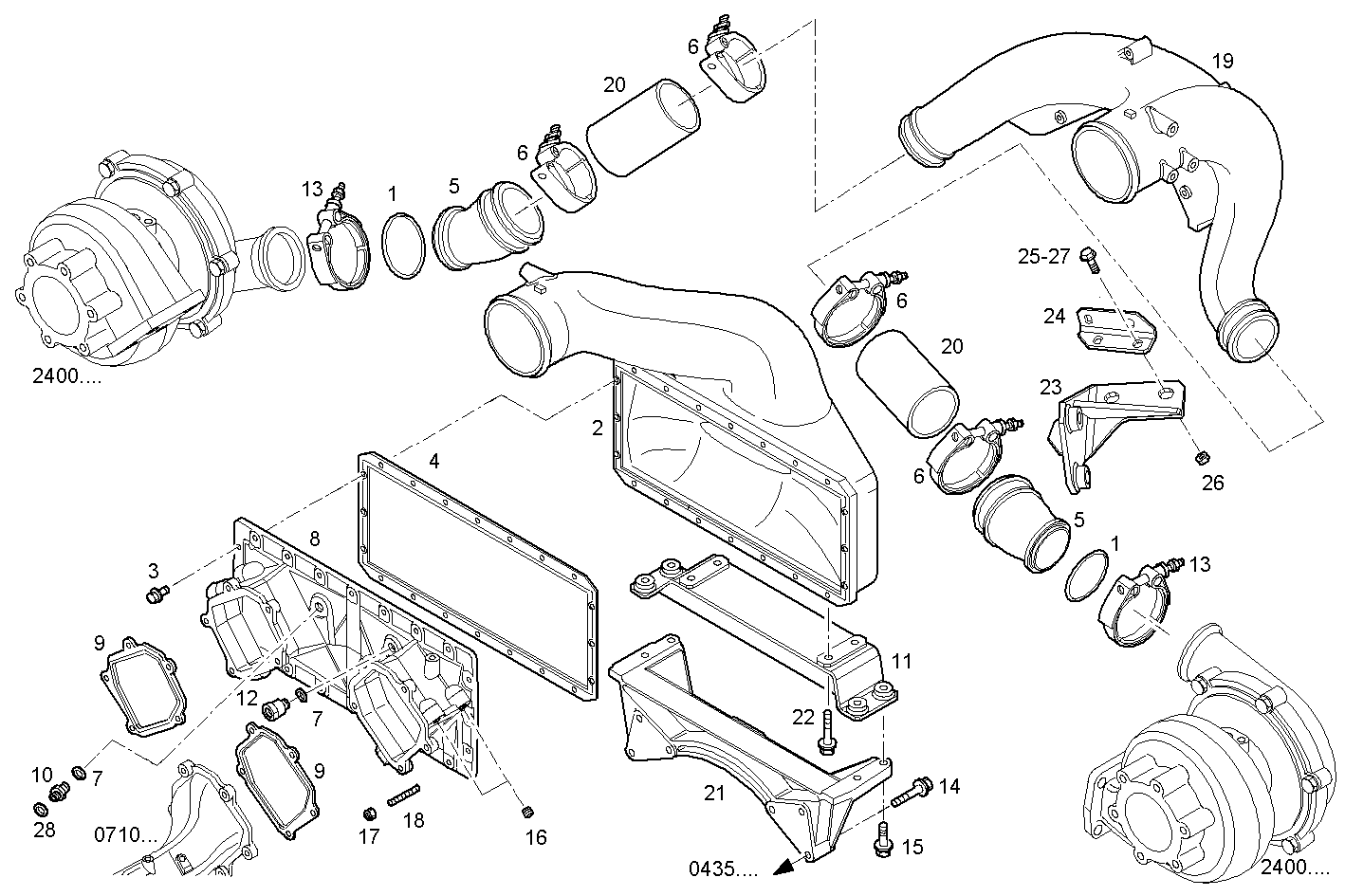

| Item |
Part number |
Description |
|
1 |
17284481 |
O-RING Ø58,4 MM SP=2,6 MM [from ...] |
|
2 |
504090121 |
AIR HOOD |
|
3 |
504049513 |
HEXAGON BOLT |
|
4 |
504044894 |
GASKET |
|
5 |
504090263 |
AIR PIPE/DUCT |
|
6 |
17769094 |
CLIP |
|
7 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
8 |
504074096 |
AIR HOOD |
|
9 |
504048947 |
GASKET |
|
10 |
504044568 |
THREADED UNION M16X1,5-7/16" |
|
11 |
504115675 |
SUPPORT |
|
12 |
504044567 |
THREADED UNION |
|
13 |
4800661 |
CLIP Ø 75 mm. |
|
14 |
16587325 |
HEXAGON BOLT M10X35 MM |
|
15 |
18139424 |
HEXAGON BOLT M10X20 MM |
|
16 |
17847870 |
THREADED INSERT M8 |
|
17 |
17044725 |
HEXAGON NUT M8 |
|
18 |
16729424 |
STUD M8X1,25X25 |
|
19 |
504090122 |
AIR HOOD |
|
20 |
504104715 |
RUBBER SLEEVE |
|
21 |
504086170 |
SUPPORT |
|
22 |
16673835 |
HEXAGON BOLT M8X30 MM |
|
23 |
504115689 |
SUPPORT |
|
24 |
504115956 |
SUPPORT |
|
25 |
16600224 |
HEXAGON BOLT M8X1,25X18 MM |
|
26 |
17044735 |
NUT M8 |
|
27 |
16586825 |
HEXAGON BOLT M8X1.25X45 MM |
|
28 |
504046227 |
SEAL GASKET |
