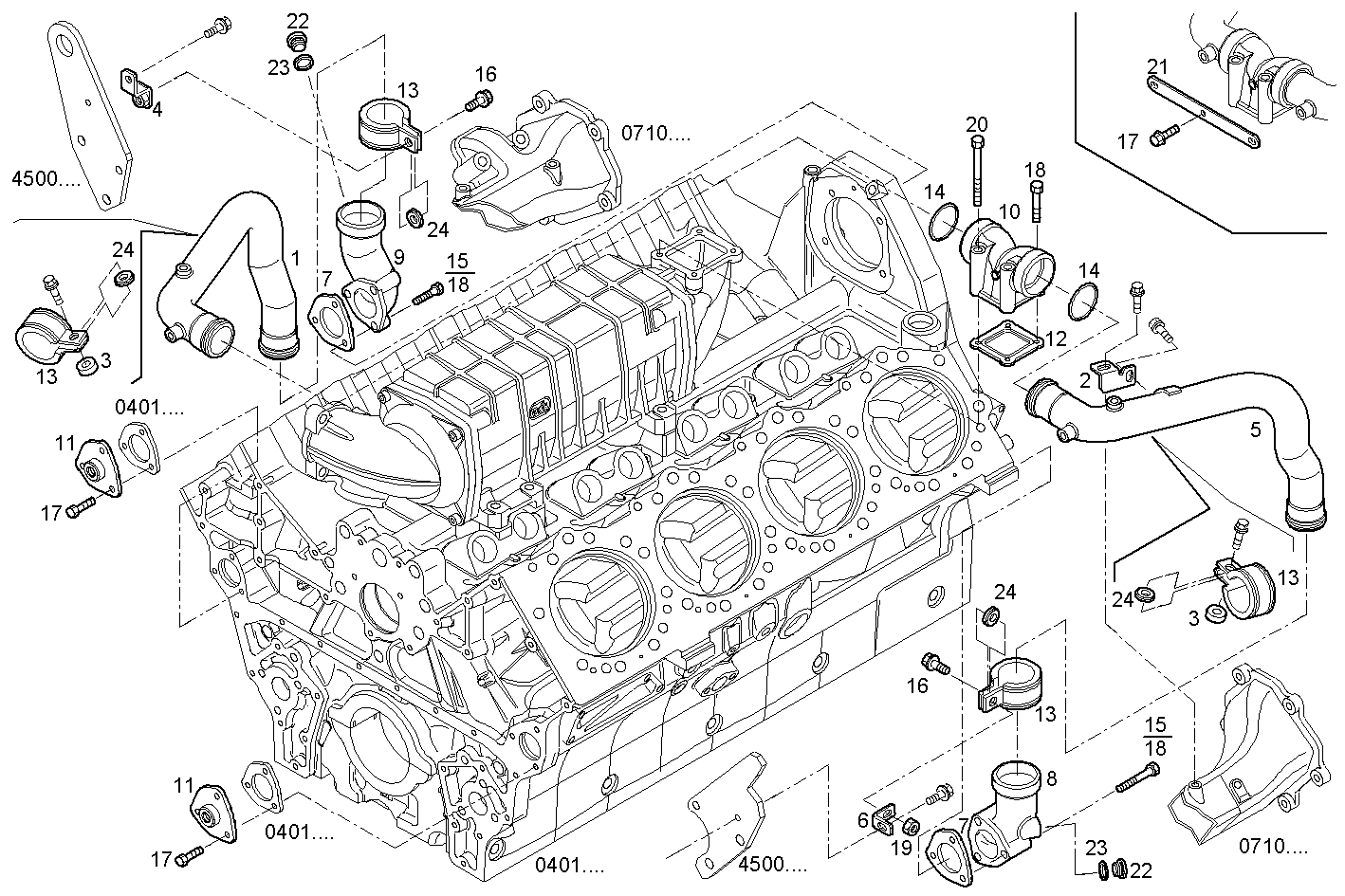

| Item |
Part number |
Description |
|
1 |
504060176 |
WATER PIPE |
|
2 |
504071585 |
SUPPORT |
|
3 |
7302112 |
SPACER SP=7 MM |
|
4 |
504063276 |
SUPPORT |
|
5 |
504060175 |
WATER PIPE |
|
6 |
504063139 |
SUPPORT |
|
7 |
504045914 |
FLAT ENGINE GASKET |
|
8 |
504059916 |
WATER PIPE |
|
9 |
504059917 |
WATER PIPE |
|
10 |
504063275 |
WATER PIPE |
|
11 |
504057355 |
COVER |
|
12 |
504063703 |
FLAT ENGINE GASKET |
|
13 |
504183917 |
FASTENING BRACKET |
|
14 |
14471181 |
O-RING Ø46,99x5,33 MM |
|
15 |
16592424 |
HEXAGON BOLT M8X65 MM |
|
16 |
16673835 |
HEXAGON BOLT M8X30 MM |
|
17 |
16586225 |
HEXAGON BOLT M8X1,25X16 MM |
|
18 |
16586725 |
HEXAGON BOLT M8X1.25X40 MM |
|
19 |
17964125 |
HEXAGON NUT M8 |
|
20 |
16598224 |
HEXAGON BOLT M8X90 MM |
|
21 |
504074924 |
FLANGE |
|
22 |
1110423 |
SCREW PLUG M14X1,5 |
|
23 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
24 |
504184203 |
WASHER |
