FVAE2884A*B201

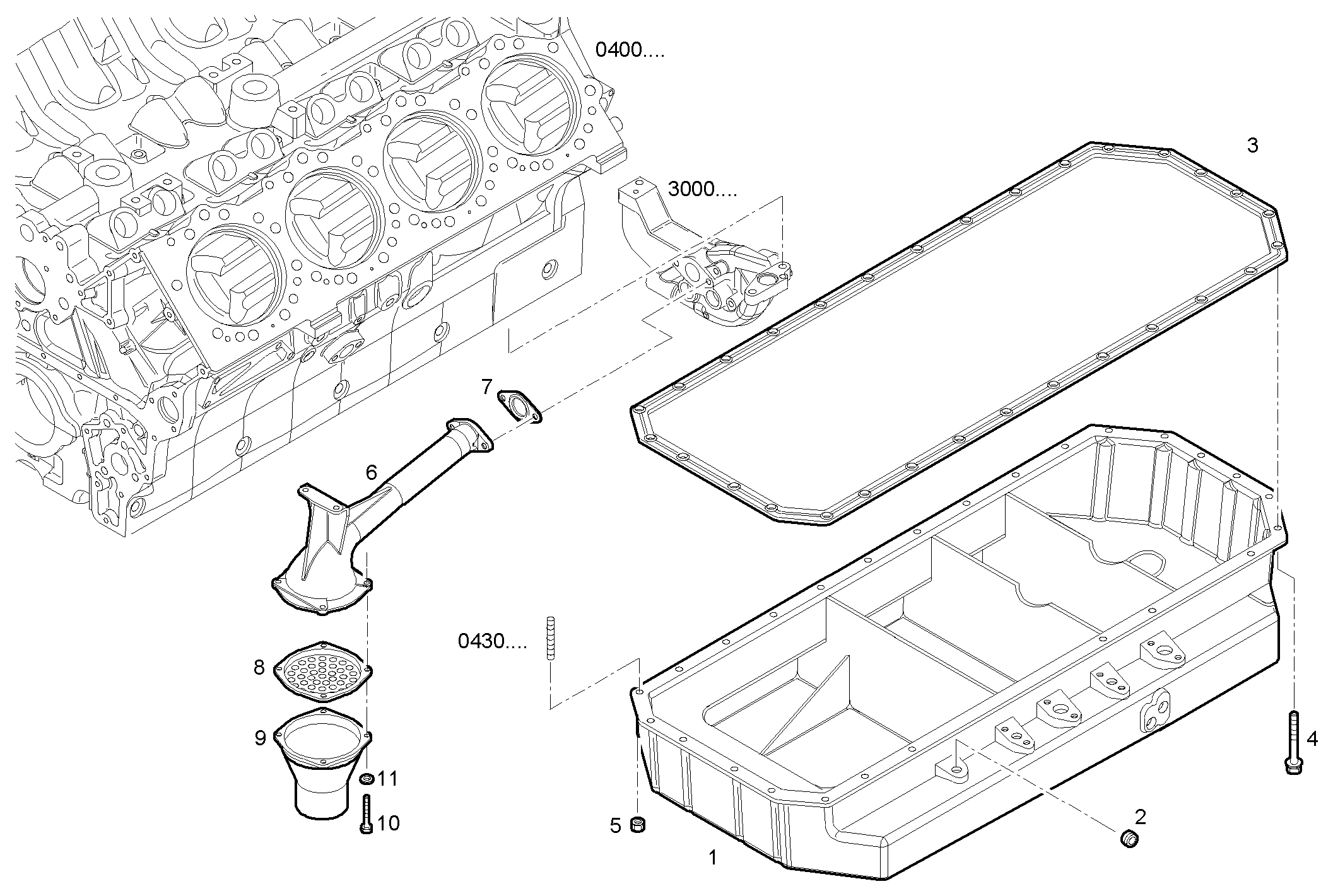

0420.241 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8039307 | OIL SUMP |
| 2 | 17873271 | THREADED INSERT M8 |
| 3 | 504041342 | OIL SUMP GASKET |
| 4 | 504049517 | SCREW M10X1,5X90 MM |
| 5 | 17044825 | HEXAGON NUT M10 |
| 6 | 504036732 | SUCTION STRAINER |
| 7 | 504043473 | FLAT ENGINE GASKET |
| 8 | 4673581 | FILTER |
| 9 | 8040601 | COVER [FROM 10-03-06] |
| 10 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 11 | 17798274 | SPRING WASHER Ø8,2X14,9 MM |
