FVAE2884A*B201

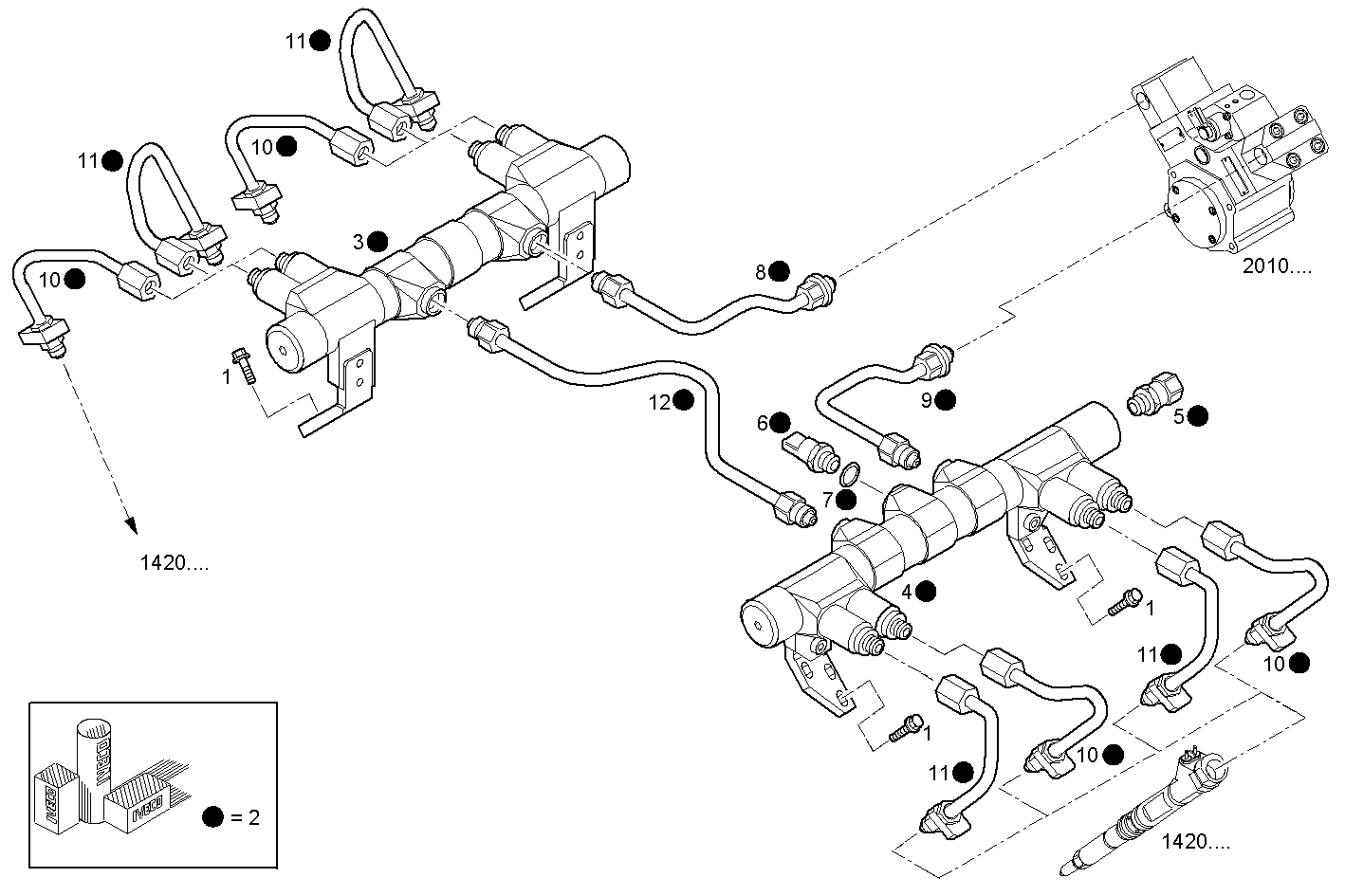

2030.305 DOUBLE WALL INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 16586925 | HEXAGON BOLT M8X50 MM |
| 2 | 8044055 | INJECTION LINES SET |
| 3 | 8044045 | HYDRAULIC CYLINDER RIGHT |
| 4 | 8044047 | HYDRAULIC CYLINDER LEFT |
| 5 | 504043158 | VALVE |
| 6 | 504043154 | SENSOR |
| 7 | 504120835 | SEAL GASKET |
| 8 | 8044049 | INJECTION LINE |
| 9 | 8044050 | INJECTION LINE |
| 10 | 8044051 | INJECTION LINE |
| 11 | 8044052 | INJECTION LINE |
| 12 | 8044053 | INJECTION LINE |
