FVAE2884A*B201

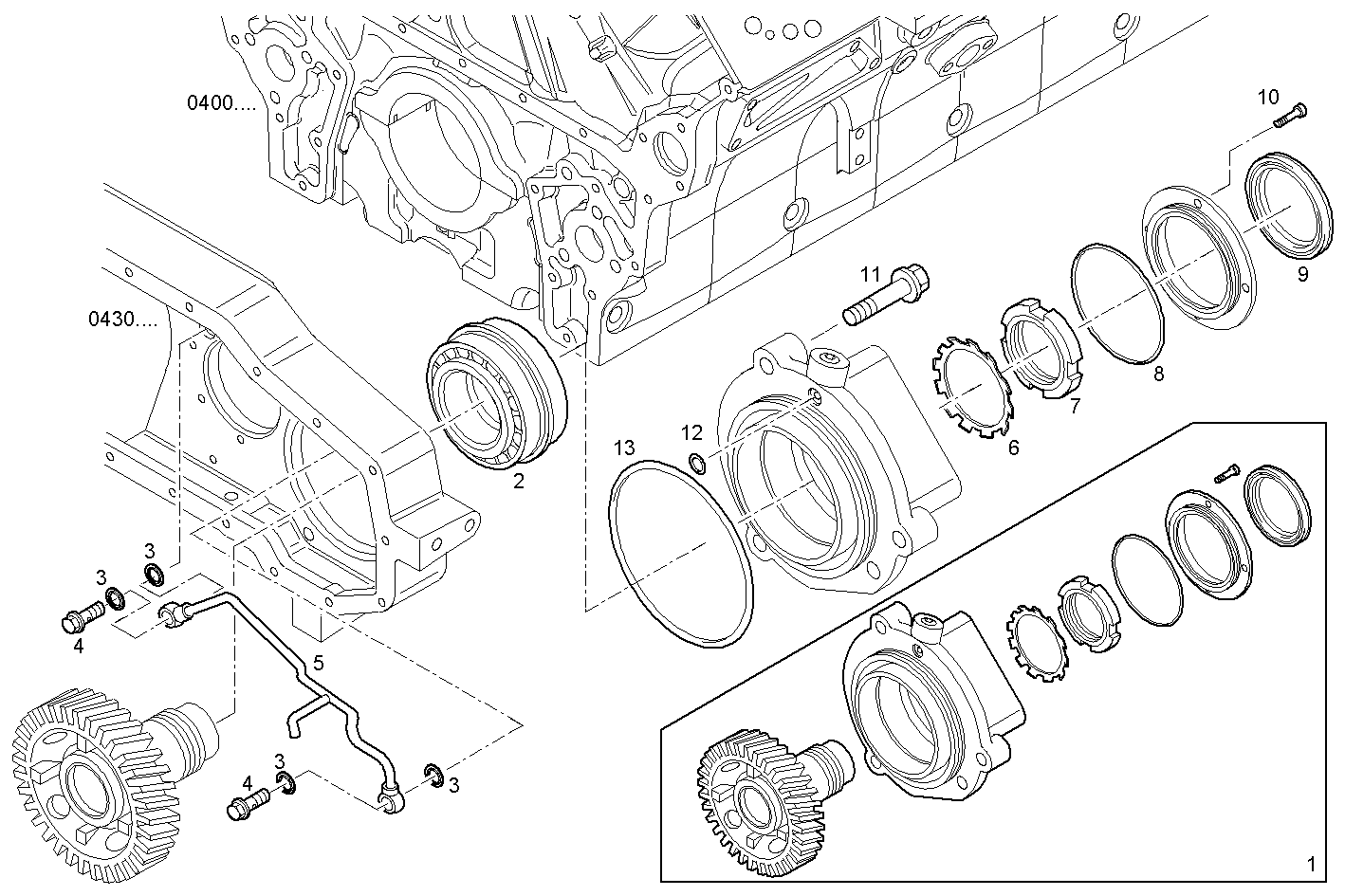

4270.005 HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504177927 | POWER TAKE OFF ASSY |
| 2 | 504041494 | ROLLER BEARING |
| 3 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 4 | 4864079 | SCREW CONNECTOR M10X1 |
| 5 | 504050100 | OIL LINE |
| 6 | 504168147 | ROLLER BEARING |
| 7 | 504168145 | NUT |
| 8 | 17285481 | O-RING Ø75,87 MM SP=2,62 MM |
| 9 | 504207965 | SHAFT SEAL |
| 10 | 16689124 | CYLIND-HEAD SCREW M6X16 MM |
| 11 | 16678235 | HEXAGON BOLT M12X50 MM |
| 12 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
| 13 | 17292381 | O-RING Ø129,8 MM SP=3,53 MM |
