FVAE2884A*B201

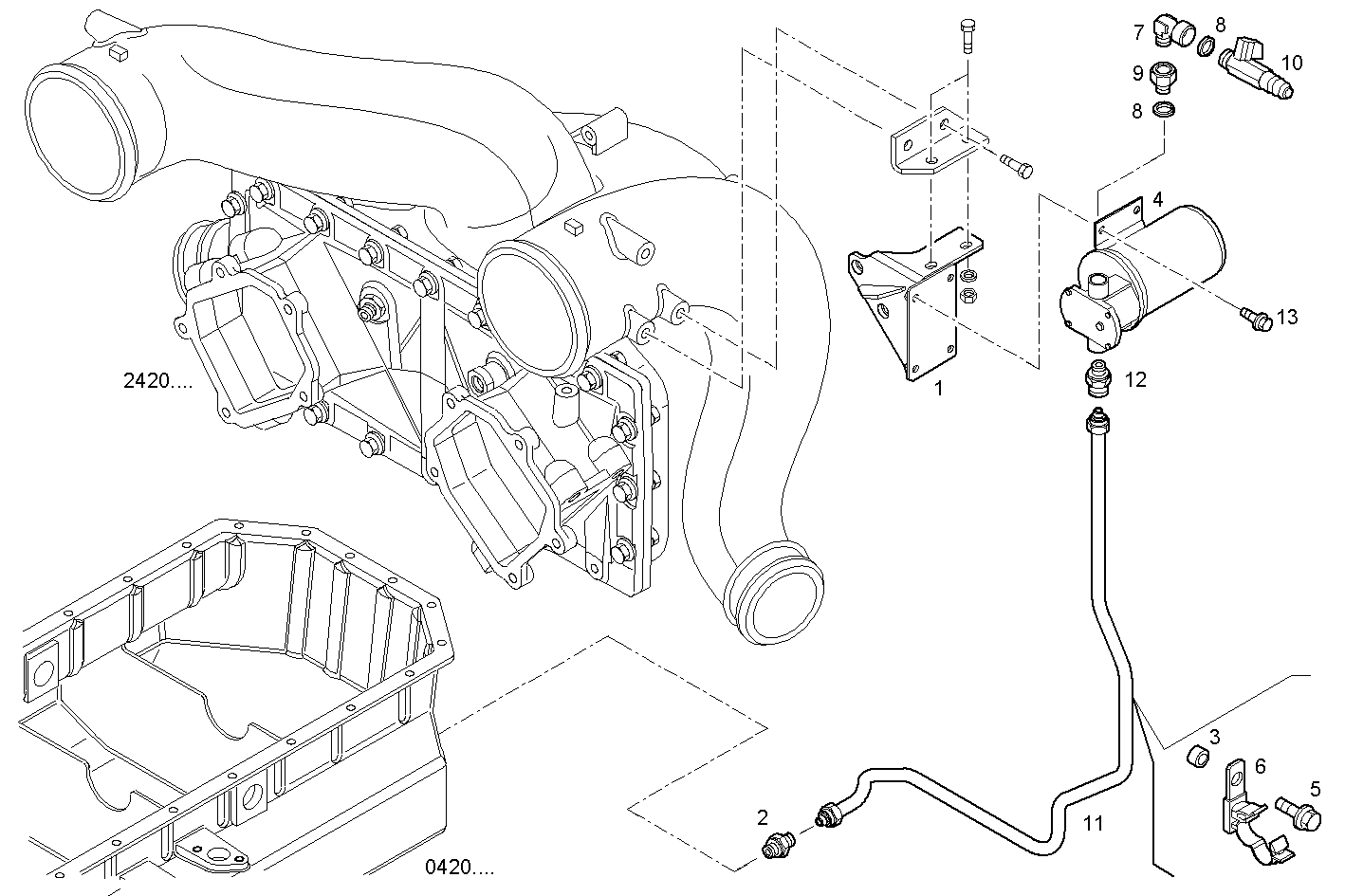

5510.061 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504204544 | SUPPORT |
| 2 | 41031572 | THREADED UNION |
| 3 | 98479318 | SPACING BAR |
| 4 | 8032366 | OIL DRAIN ELECTRIC PUMP |
| 5 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 6 | 99453771 | RETAINER |
| 7 | 8005303 | PIPE SOCKET M16X1,5 |
| 8 | 11270460 | GASKET Ø17X21X1,5 MM |
| 9 | 8034440 | THREADED UNION |
| 10 | 8113932 | DRAIN COCK |
| 11 | 504204546 | OIL SUCTION PIPE |
| 12 | 8011422 | PIPE SOCKET Ø3/8''/M22 MM |
| 13 | 18137825 | HEXAGON BOLT M6X16 |
