FVAE2884X*B200

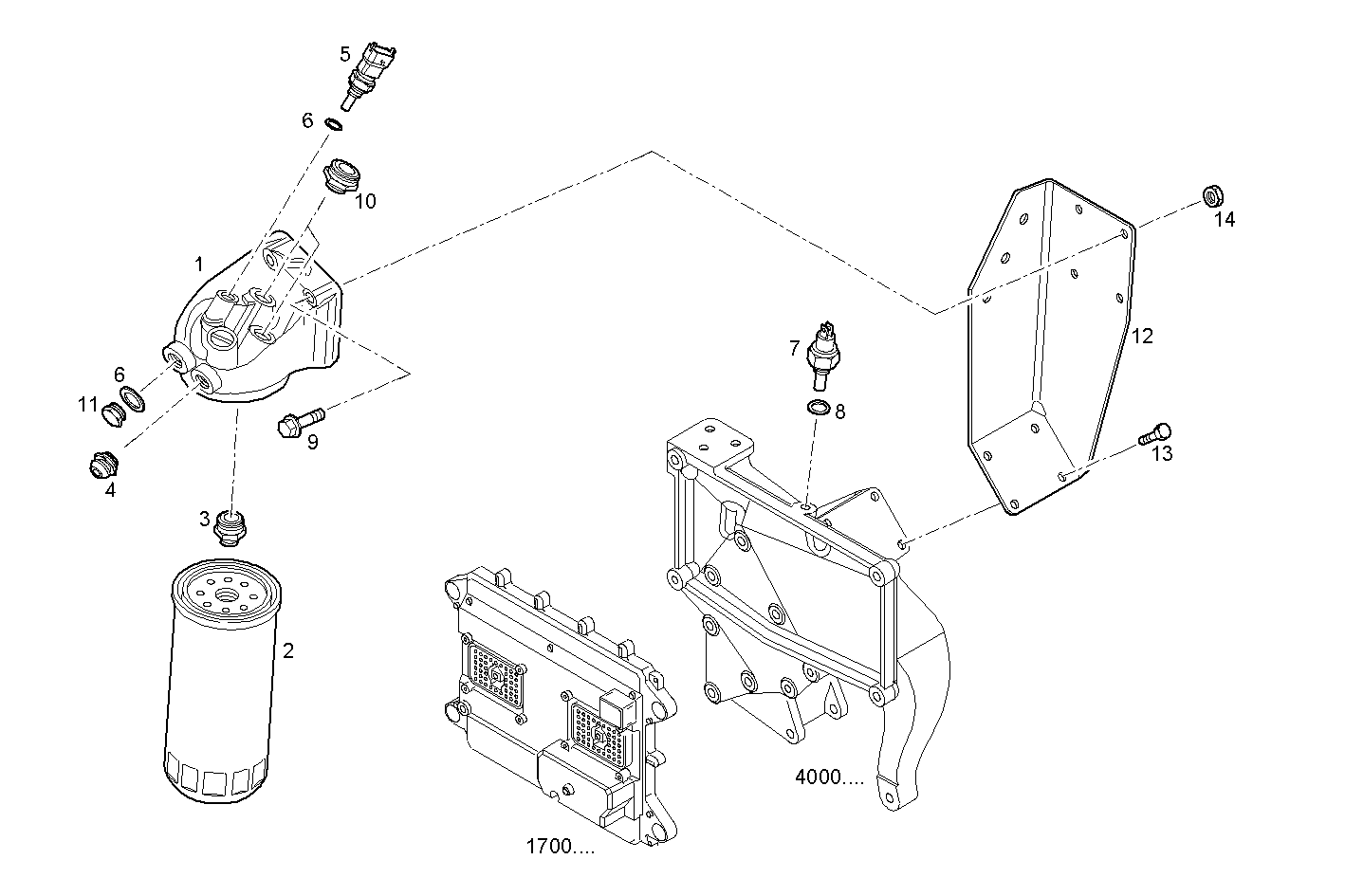

2093.006 FUEL FILTER - fuel filter element
| Item | Part number | Description |
|---|---|---|
| 1 | 504128483 | FUEL FILT.SUPPORT |
| 2 | 504128471 | FUEL FILTER CARTRIDGE |
| 3 | 504128553 | THREADED UNION |
| 4 | 500304562 | BREATHER PLUG |
| 5 | 500346074 | TRANSMITTER Pressure |
| 6 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 7 | 504046224 | TEMP. TRANSMITTER 3/4" |
| 8 | 504046225 | SEAL GASKET |
| 9 | 16587525 | HEXAGON BOLT M10X45 MM |
| 10 | 16500315 | THREADED UNION M16X1,5 - M18X1,5 |
| 11 | 16992415 | THREADED PLUG M16X1,5 |
| 12 | 504229722 | FUEL FILT.SUPPORT |
| 13 | 18139424 | HEXAGON BOLT M10X20 MM |
| 14 | 17044825 | HEXAGON NUT M10 |
